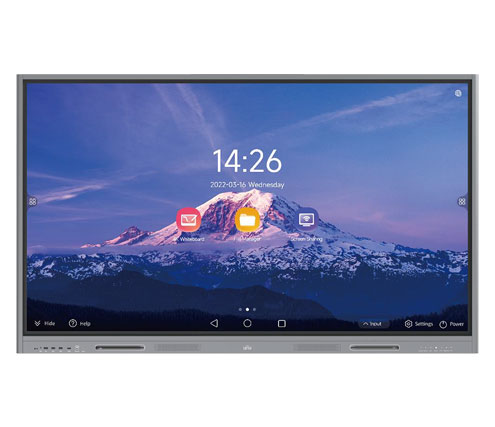

Uniview MW3586-U-CA Smart Interactive Screen
- Brand: Uniview
KSh330,665 VAT Exc.
In stock
Features Of Uniview 86" smart interactive board
Specifications of Uniview 86" smart interactive board
Model MW3586-U-CA
Panel
Backlight DLED backlight
Panel size 86 inches
Resolution 3840*2160
Brightness (cd/m²) 350
Contrast ratio 1200:1
Response time (ms) 8 Colors 1.07 billion
Viewing angle (H/V) 178°/178°
Android
CPU architecture Amlogic T982 4*A55 and Mali G52 GPU
CPU operating frequency 1.9GHz RAM/ROM
DDR4: 4GB, eMMC: 32GB
System version Android 11.0
Touch
Touch control Contactless IR sensor, supports 20-point touch Touch
precision (mm) ±1
Recognizable object 5 points, 3mm
Glass 4mm tempered glass, level 7 on Mohs hardness scale, anti-glare
Response time (ms) ≤ 10
Input method Opaque objects (e.g. fingers, pens)
Interface
Video input 3*HDMI IN (4K), 1*AV IN, 1*DP IN, 1*VGA IN, 1*YPbPr IN
Video output 1*AV OUT, 1*HDMI OUT (4K)
Audio input 1*MIC IN Audio output 1*earphone, 1*coaxial audio output interface (coax)
Other interfaces 1*RS232, 3*front USB 3.0, 1*on-board USB 3.0, 1*on-board USB 2.0, 1*TOUCH USB, 1*Type-C, 1*TF CARD, 1*IR IN
Network interfaces 1*LAN OUT, 1*LAN IN
Audio
Speaker Left channel: 1*5W (treble) + 1*15W (bass) Right channel: 1*5W (treble) + 1*15W (bass)
Camera
Pixel: 13 13MP (4160*3120)
Video stream frame rate 13MP@15fps
4K2K@30fps 1080P@30fps, 720P@30fps
FOV (D/H/V) 118°/94°/75°
Microphone
Number of microphones 8
Pickup range 8m
Wi-Fi Configuration
Wi-Fi 5+Wi-Fi 6, supports 5/2.4 GHz
Performance 30m² coverage, 20m transmission distance in open space
Bluetooth Version 5.2
Performance 10m transmission distance in open space
SKU:
MW3586-U
Category: Smart Interactive Boards
Features of Uniview 86″ Smart Interactive board
4K UHD anti-glare display delivers images with extreme detail in smart interactive board.
Ultra-narrow bezel design for perfect aesthetics.
Dual Wi-Fi modules with both Wi-Fi and hotspot support.
High-precision infrared touch technology allows up to 20-point touch, realizing smooth co-authoring.
Multiple utility buttons on the front such as power, volume control, settings, etc.
A variety of quick tools, such as annotation, screenshot, etc., with a floating window, improving usability and interaction efficiency.
Wireless screen mirroring from various operating systems such as Android, iOS, and Windows to the display with one touch.
Fast file transfer allows users to quickly transfer files from a mobile phone to the display via a QR code.
OTA remote upgrade. The system can be upgraded online without backing up data.
Split-screen writing. The whiteboard allows independent writing on two split screens at the same time.
A variety of front interfaces allow users to easily and quickly plug/unplug USB drives and other tools.
OCR recognition of the Uniview 86″ smart interactive board. The whiteboard can automatically recognize text and graphics.
