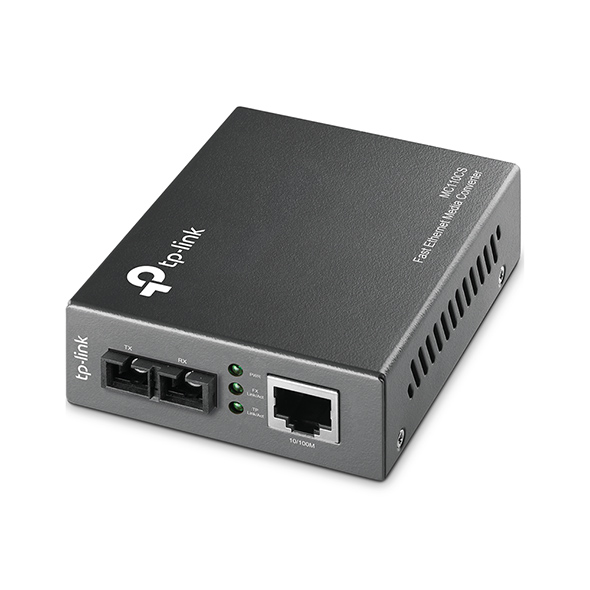

Tp-Link MC110CS single mode media convertor

The Tp-Link MC110CS single mode media convertor is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media and vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 12.4 miles (20km).

The TP-Link MC110CS Single-Mode Media Converter is designed to bridge the gap between single-mode fiber optic cables and Ethernet networks, enabling long-distance network connectivity in Kenya. Perfect for internet service providers (ISPs), businesses, and organizations requiring reliable, extended network reach, this converter provides a seamless transition from fiber to Ethernet.

Key Features of Tp-Link MC110CS single mode media convertor:

• Single-Mode Fiber to Ethernet: Converts 1000Base-LX single-mode fiber to 1000Base-T copper Ethernet.
• SC Connector: Features an SC connector for secure and reliable single-mode fiber connections.
• Long-Distance Transmission: Ideal for extending network reach over long distances, crucial for Kenyan infrastructure.
• Gigabit Speed: Supports Gigabit Ethernet speeds for high-bandwidth applications.
• Auto-MDI/MDIX: Eliminates the need for crossover cables, simplifying setup.
• Plug and Play: Easy installation with no configuration required.
• LED Indicators: Provides clear status indicators for easy troubleshooting.
• Reliable Performance: Designed for stable and consistent network connectivity.

Why Choose the Tp-Link MC110CS single mode media convertor in Kenya?

In Kenya, where expanding network infrastructure is essential, the Tp-Link MC110CS single mode media convertor  offers a cost-effective and reliable solution for long-distance connectivity. It’s particularly useful for ISPs extending their networks and businesses connecting remote branches. TP-Link’s commitment to quality ensures a dependable networking experience.

MEDIA CONVERTER & MODULE

Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function	• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode • Full Duplex Flow Control (IEEE 802.3x) • Half Duplex Flow Control (Backpressure) • Extends fiber distance up to 20km
Ports	• 2× 100M SC/UPC ports • 1× 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length	1310nm
Network Media 10BASE-T	UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T	UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX	Single-mode Fiber
LED Indicators	PWR, Link/Act
Dimensions (W*D*H)	3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply	External power supply
Max Power Consumption	2.4W
Safety & Emission	FCC, CE, RoHS
Package Contents	• MC110CS • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0℃~50℃ (32℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
