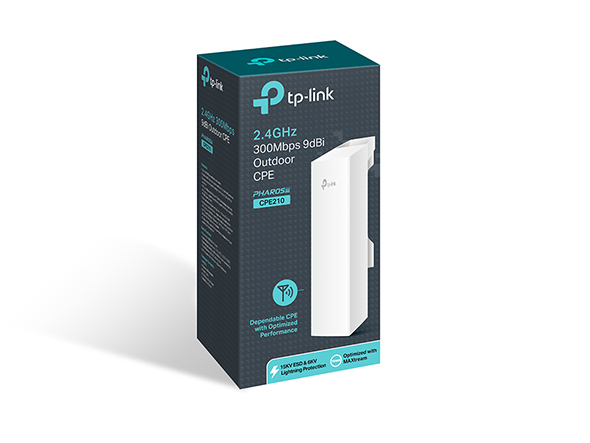

TP-Link CPE210 Outdoor CPE

Extend your outdoor wireless network with the  TP-Link CPE210 Outdoor CPE. This 2.4GHz 300Mbps CPE with a 9dBi antenna is ideal for long-range point-to-point and point-to-multipoint connections. Buy now!

Product Description:

The TP-Link CPE210 is a powerful and reliable outdoor Wireless CPE (Customer Premises Equipment) operating in the 2.4GHz frequency band. Designed for long-range wireless data transmission, the CPE210 is an ideal and cost-effective solution for various outdoor networking applications. It delivers wireless speeds of up to 300Mbps and features a directional 9dBi antenna, significantly increasing the range and stability of your wireless connection.

Built with outdoor environments in mind, the CPE210 is weatherproof and designed to withstand harsh conditions, including extreme temperatures, humidity, and wind. Its integrated 13dBi dual-polarized directional antenna ensures focused signal transmission and reception, maximizing efficiency and minimizing interference.

The TP-Link CPE210 Outdoor CPE supports Passive PoE (Power over Ethernet), simplifying deployment by allowing both power and data to be carried over a single Ethernet cable. Its user-friendly Pharos Control centralized management system enables easy configuration and monitoring of multiple CPE devices in your network. This makes it an excellent choice for WISPs (Wireless Internet Service Providers), businesses needing to connect remote locations, or for setting up outdoor surveillance networks.

Key Features TP-Link CPE210 Outdoor CPE:

• High-Speed Wireless N: Supports 802.11b/g/n standards, delivering wireless speeds up to 300Mbps.
• 9dBi Directional Antenna: High-gain antenna for long-range point-to-point and point-to-multipoint connections.
• Outdoor Weatherproof Design: IPX5 certified for protection against rain, dust, and other environmental factors.
• Passive PoE Support: Enables convenient deployment with a single Ethernet cable for power and data.
• Pharos Control Centralized Management System: Simplifies network configuration and management.
• Advanced Security Features: Supports WPA/WPA2, WPA-PSK/WPA2-PSK encryption.
• Up to 5km+ Transmission Range: Optimized for long-distance wireless links.

Benefits:

• Extended Wireless Range: Connect to distant locations with a strong and stable signal.
• Reliable Outdoor Performance: Built to withstand harsh weather conditions.
• Cost-Effective Solution: Provides enterprise-level performance at an affordable price.
• Easy Deployment: Passive PoE simplifies installation.
• Centralized Management: Efficiently manage multiple CPE devices.
• Enhanced Security: Protect your wireless network with advanced encryption.
• Versatile Applications: Suitable for WISPs, business networks, and surveillance.

HARDWARE FEATURES
Processor	Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory	64MB DDR2 RAM, 8MB Flash
Interface	1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 Grounding Terminal 1 Reset Button
Power Supply	Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC
Max. Power Consumption	5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H )	224 x 79 x 60 mm
Antenna	Built-in 9dBi 2x2 Dual-polarized Directional Antenna Beam Width: 65° (H-Plane) / 40° (E-Plane) Note: For more details, please refer to datasheet
Protection	15KV ESD Protection 6KV Lightning Protection
Enclosure	Outdoor ASA stabilized plastic material IPX5 waterproof Certification

WIRELESS FEATURES
Wireless Standards	IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol	TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds	Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)
Frequency	2.4~2.483GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmission Power	25dBm/316mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES
Wireless Configurations	Pharos MAXtream TDMA Technology 802.11b/g/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management Features	Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
System Tools	Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute
System-level Optimizations	Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog

POE ADAPTER FEATURES
Dimensions(W x D x H)	85.8×43.9×29.7 mm
Interfaces	1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data)
Button	Remote Reset Button
Power Status LEDs	Green
Input	100-240VAC, 50/60Hz
Output	• V2.0: 24VDC, 0.6A Max • V3.0: 24VDC, 0.5A Max • V3.20: 24VDC, 0.25A Max+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency	>80%
Certifications	CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS
Certification	CE, FCC, RoHS, IPX5
Package Content	Outdoor Wireless CPE 24V 0.6A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment	Operating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
