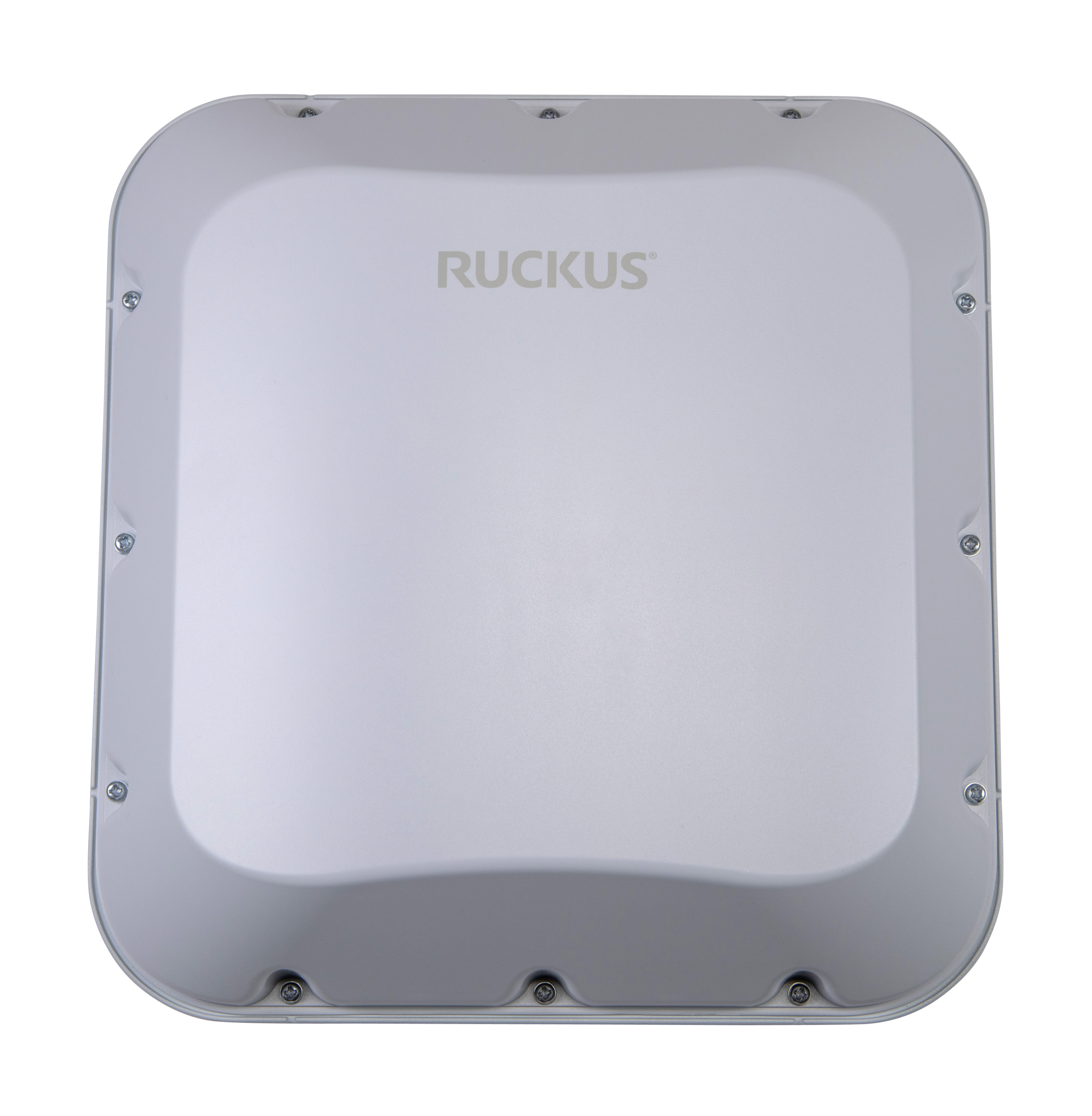

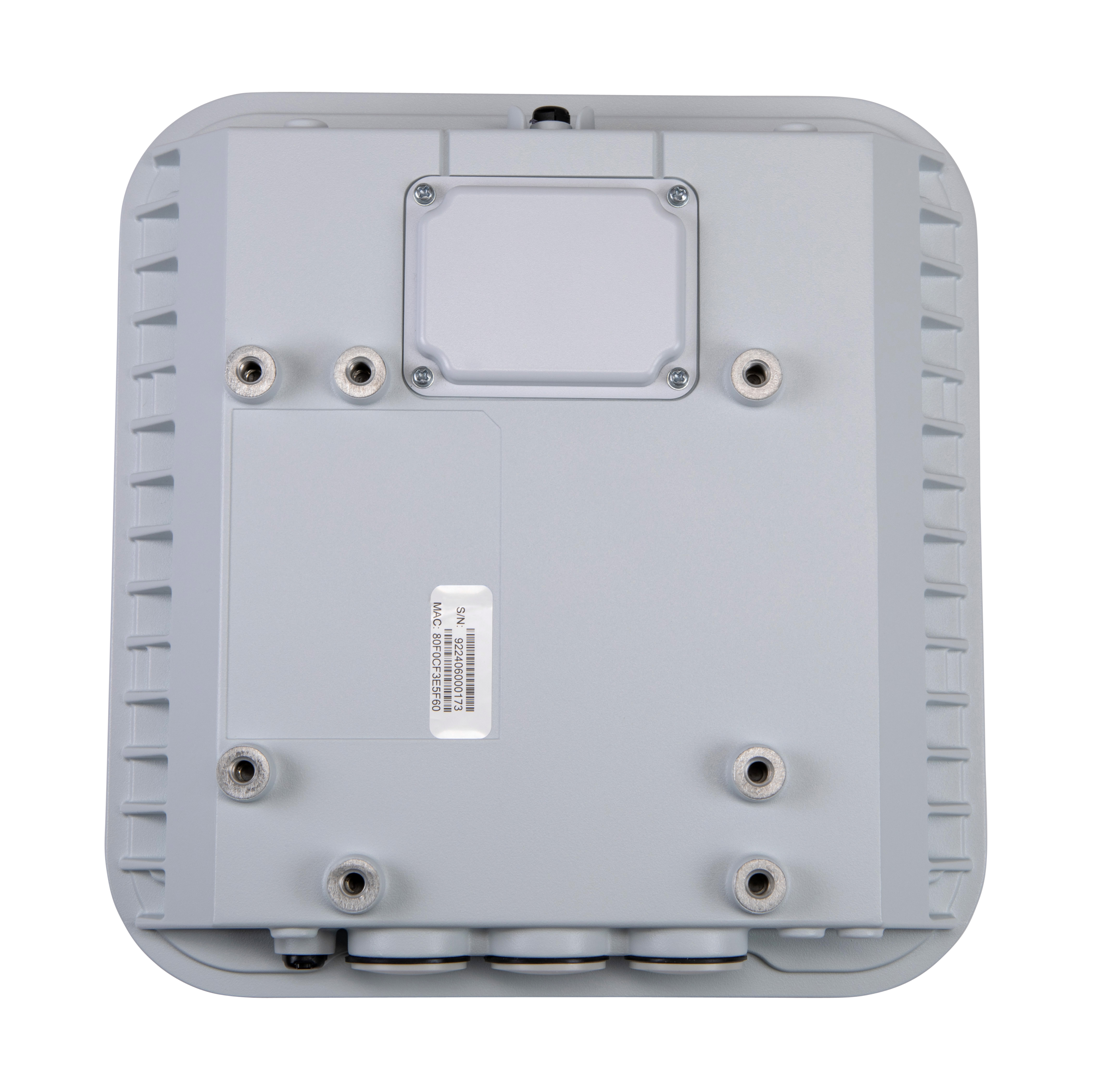

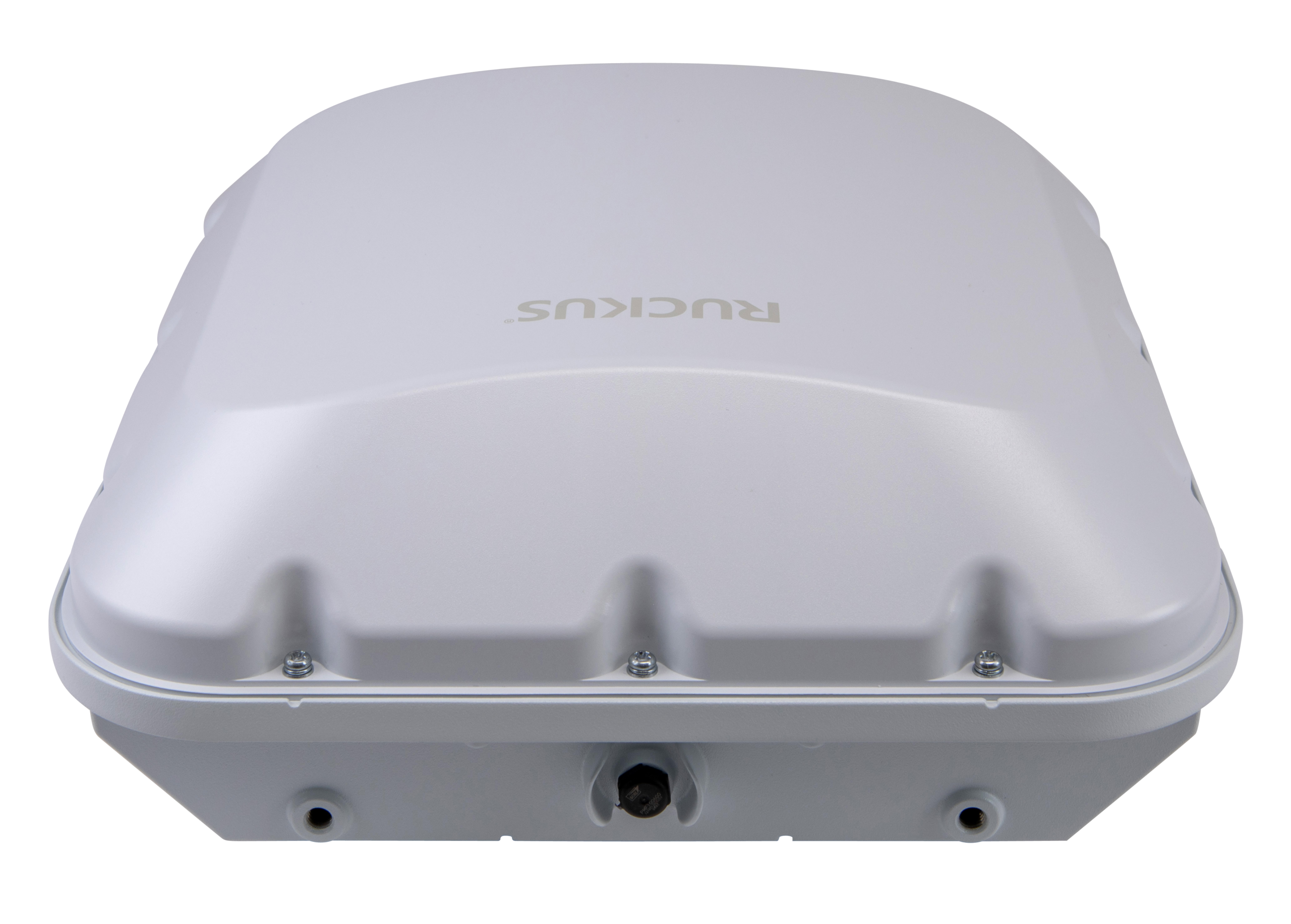

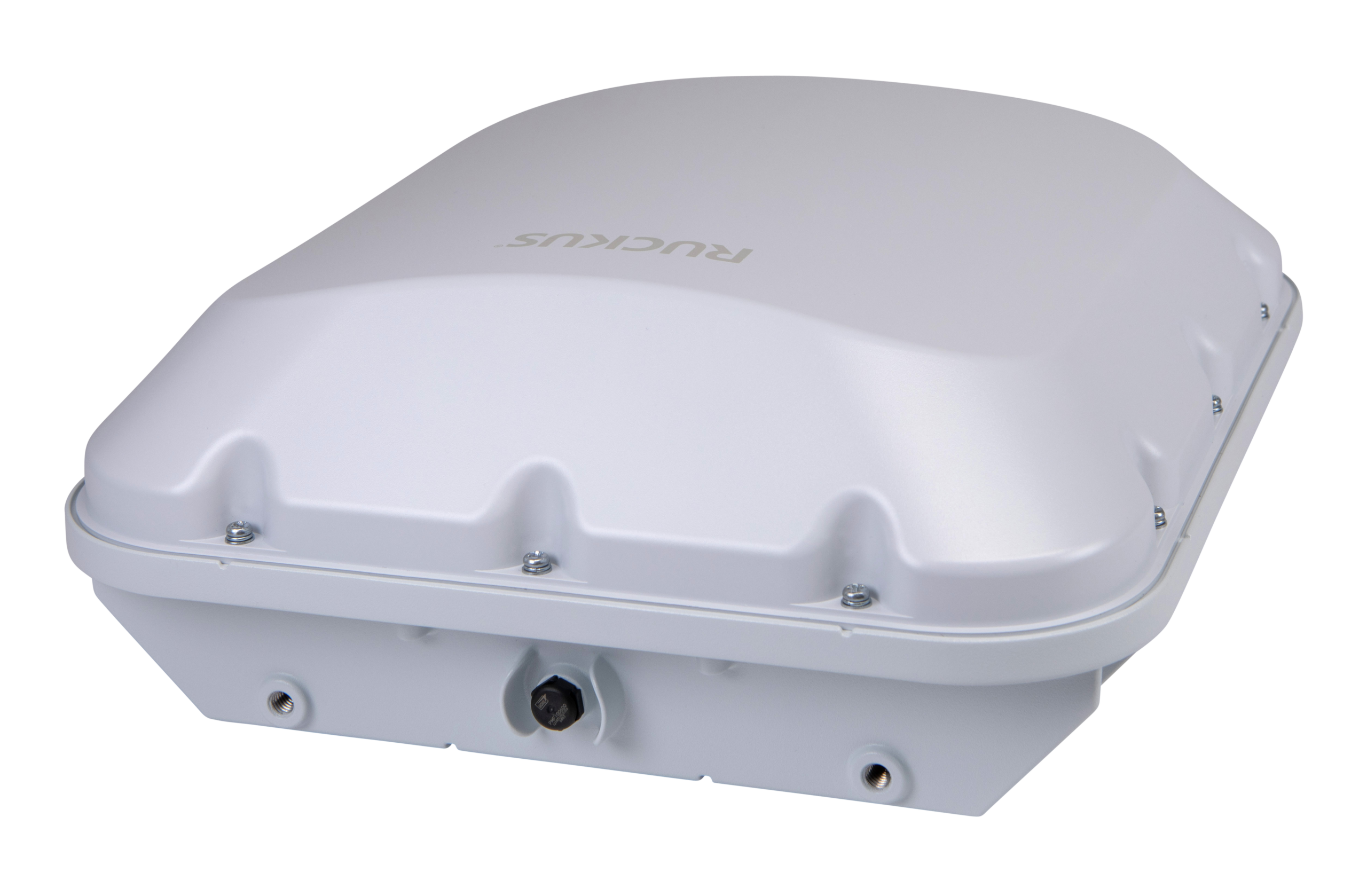

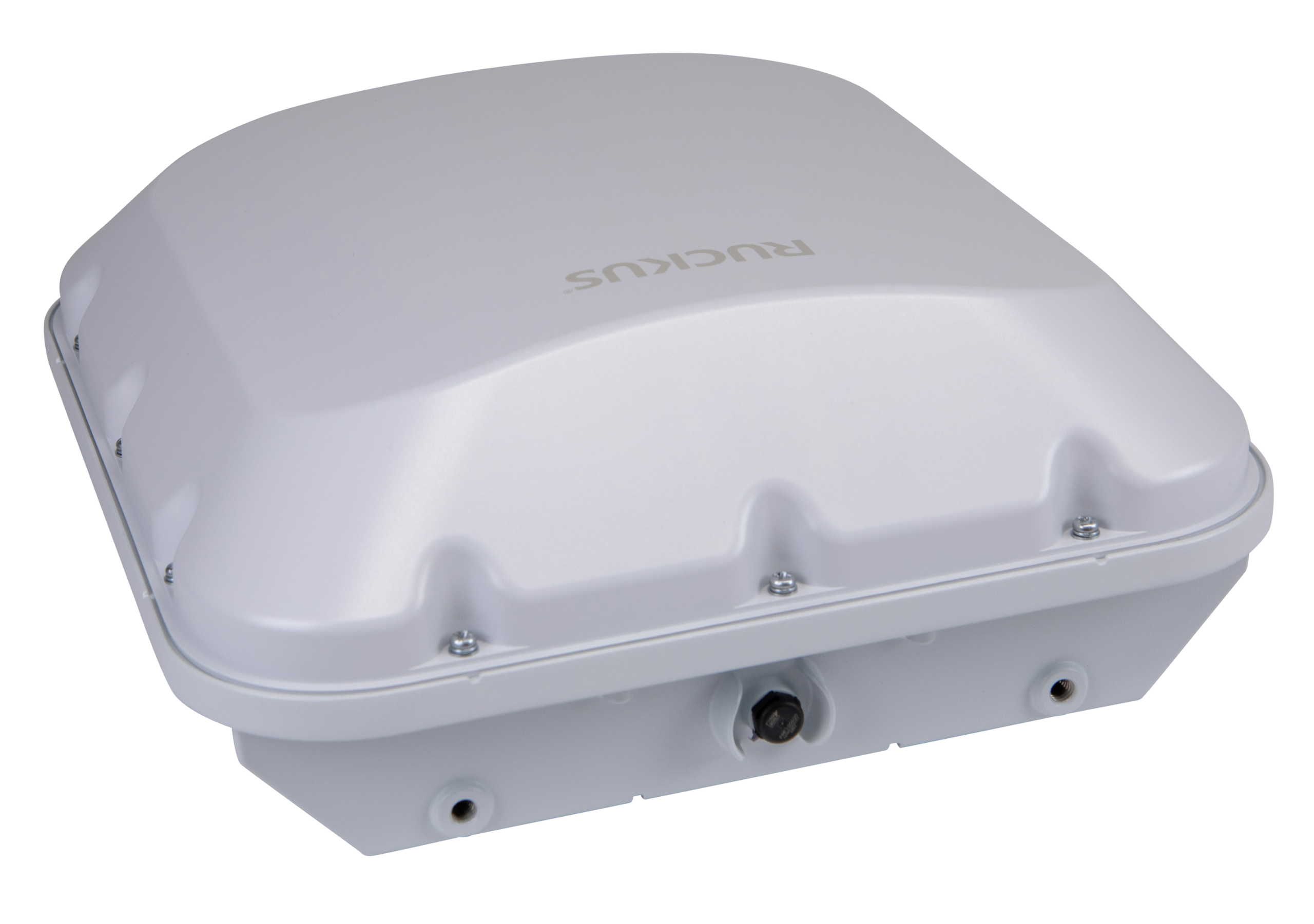

RUCKUS 9U1-T670-XX01 Unleashed T670 Wi-Fi 7 Outdoor Access Point – The First Enterprise-Class Outdoor Wi-Fi 7 AP
Take outdoor Wi-Fi to the next level with the RUCKUS 9U1-T670-XX01 Unleashed T670 Wi-Fi 7 Tri-Band Outdoor Access Point. Built with patented RUCKUS BeamFlex+ technology, AI-driven radio management, and an IP-67-rated body, the T670 is the first enterprise-class outdoor Wi-Fi 7 access point on the market — made for stadiums, smart cities, parks, transit hubs, public venues, and any outdoor space where high device counts and non-stop usage demand the very best.
Wi-Fi 7 Speed Across Three Bands — Outdoors
The T670 supports Wi-Fi 7 (802.11be) on all three bands at once, bringing the full power of Wi-Fi 7 outside for the first time at the enterprise level.
- Tri-band concurrent (2.4GHz + 5GHz + 6GHz)
- Combined data rate up to 9.34 Gbps
- Six spatial streams — 2×2:2 per band in tri-band mode, or 2×2:2 (2.4GHz) + 4×4:4 (5GHz) in software-configurable dual-band mode
- Multi-Link Operation (MLO) for lower latency and higher reliability
- 320MHz channels and 4K-QAM for peak throughput on 6GHz
- Preamble Puncturing to cut through RF noise in busy outdoor spaces
- Automated Frequency Coordination (AFC) for Standard Power mode on 6GHz — more range, more signal
- Supports up to 768 concurrent clients and 36 SSIDs per AP
- 5GbE backhaul port so the wired link never slows down wireless output
Built for 4K/8K video streaming, XR applications, and massive outdoor events where thousands of devices connect all at once.
IP-67 Rated — Built for the Harshest Outdoor Conditions
The T670 sits inside a ruggedized IP-67-rated body that stands up to rain, dust, heat, and cold in the most demanding outdoor spaces.
- Rated IP-67 — fully sealed against dust and water
- Works in temperatures from -40°C to 65°C
- Handles humidity up to 95%
- Compact and lightweight for fast, clean mounting
- Built to stay out year-round with no performance drop
BeamFlex+ Adaptive Antennas — Smart Signal in Every Direction
The T670 runs RUCKUS BeamFlex+ adaptive antenna technology, creating thousands of unique antenna patterns in real time — picked on a packet-by-packet basis to give each device the strongest possible connection.
This gives you:
- Up to 6 dBi of antenna gain over standard omni-directional APs
- Less RF noise from nearby networks and devices
- Stronger connections with fewer dead spots across large outdoor spaces
- Better signal for every device — including older Wi-Fi 5 and 6 clients
Rather than sending signal in all directions at equal strength, the T670 aims signal at each device as needed — a critical advantage in packed outdoor venues.
RUCKUS AI-Driven Radio Management
The T670 is the first outdoor RUCKUS AP driven by RUCKUS AI — a cloud service for network monitoring and radio resource management that keeps your outdoor network running at its best with minimal manual effort.
Combined with ChannelFly dynamic channel selection and:
- Adaptive band and client load balancing
- Airtime fairness
- SmartRoam for smooth client handoffs between APs
Your outdoor network stays fast and stable no matter how many people are online or how busy the RF environment gets.
Strong Security Built In
The T670 keeps your outdoor network safe with:
- WPA3 (Enterprise & Personal)
- DPSK3 — combines dynamic passphrase ease with WPA3 security
- TPM 2.0 and Secure Boot for hardware-level protection
- VLAN support (802.1Q)
- Access Control Lists (ACLs)
- Device fingerprinting & policy control
- Rogue AP detection
- IPv4 / IPv6 dual stack
SmartMesh Networking – Deploy with Less Cable
With RUCKUS SmartMesh, the T670 can build self-forming, self-healing outdoor mesh networks — cutting the need for long cable runs in hard-to-wire outdoor spaces. Ideal for large campuses, parks, and open venues where trenching cable is not practical.
Flexible Management Options
- Controller-free (Unleashed)
- Cloud management via RUCKUS AI
- SmartZone / ZoneDirector
- Standalone mode
Go from a single outdoor AP to a full large-scale network without added complexity. Auto-provisioning and seamless firmware updates keep things running smoothly at any scale.
Works with Your Current Setup

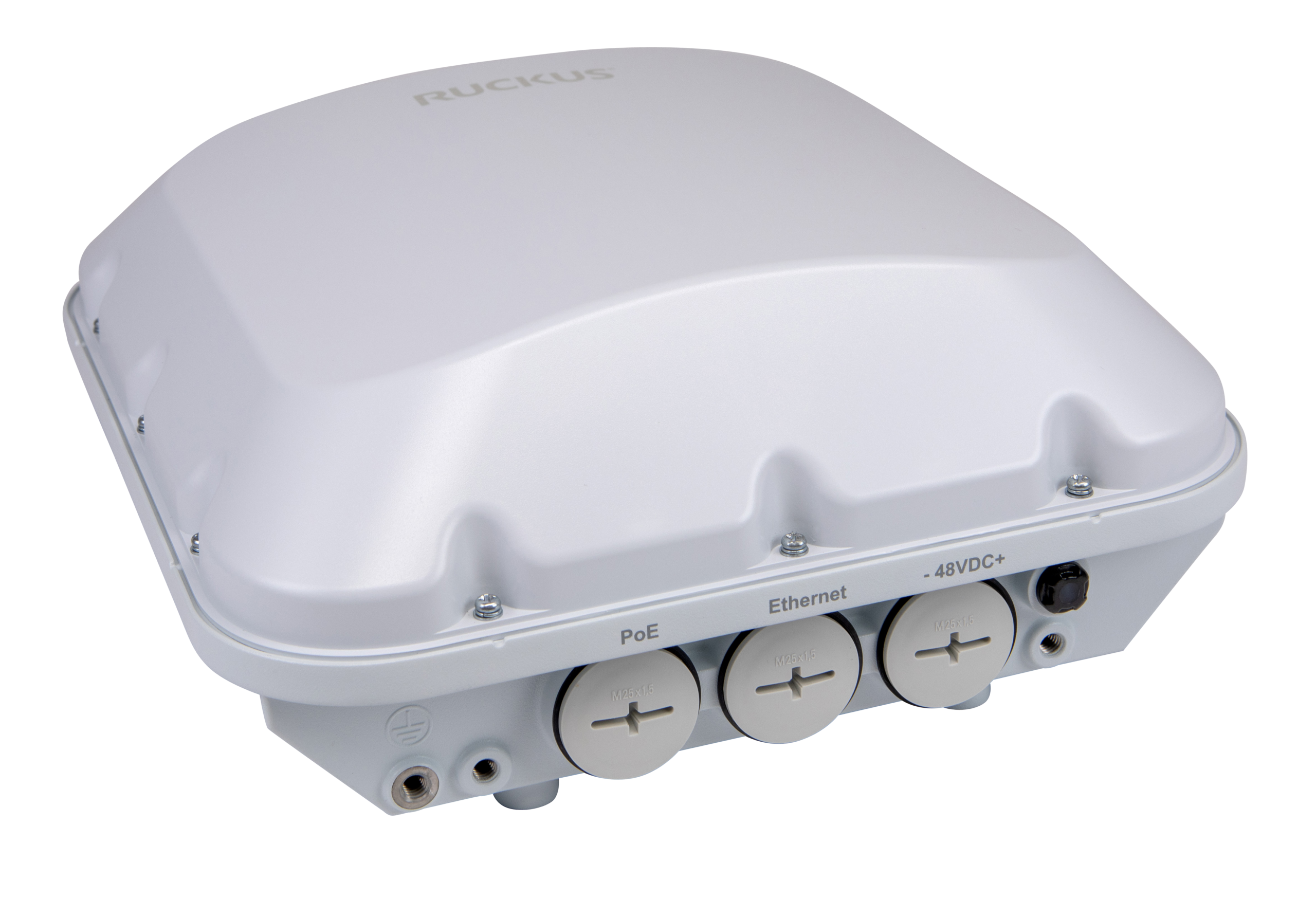

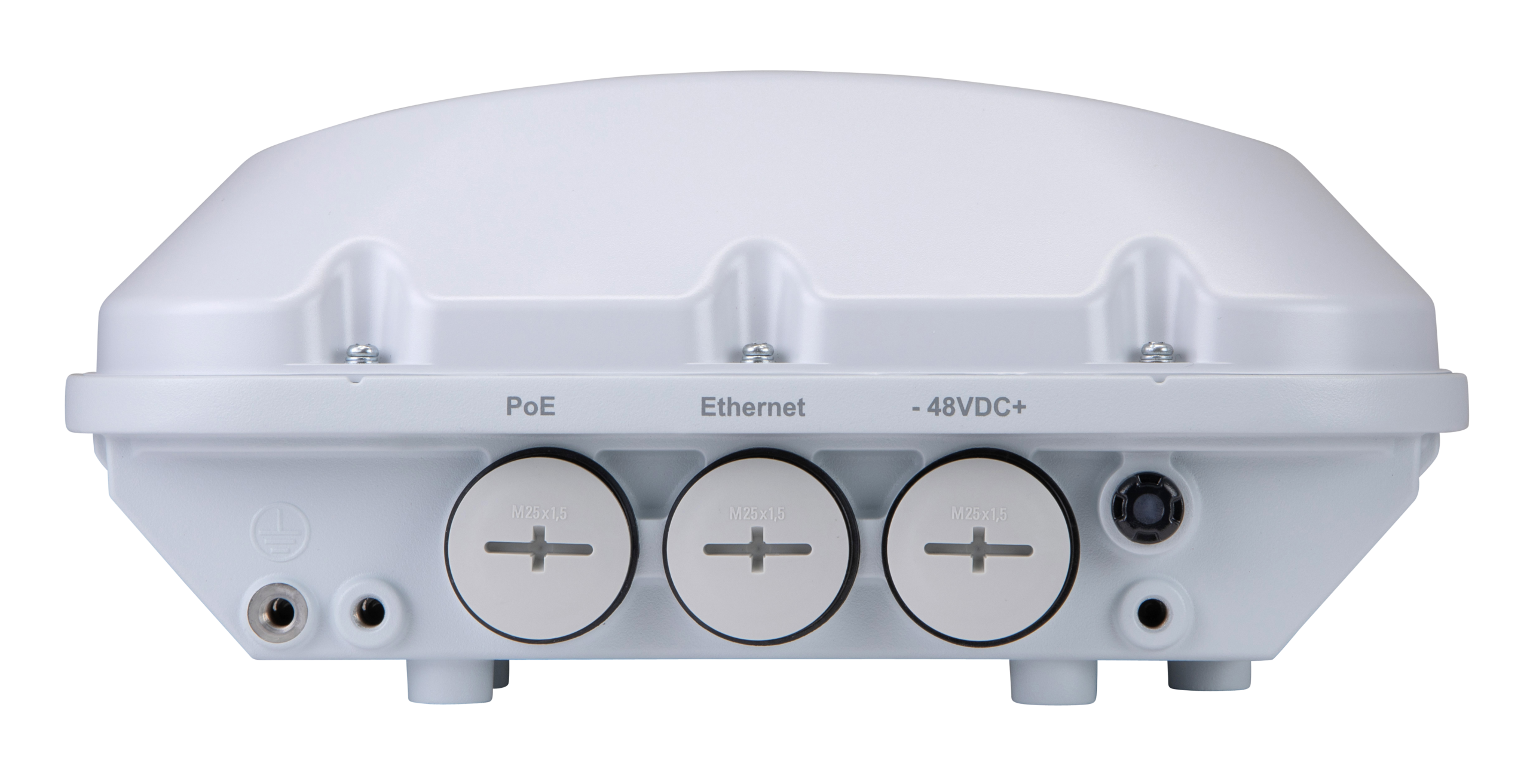

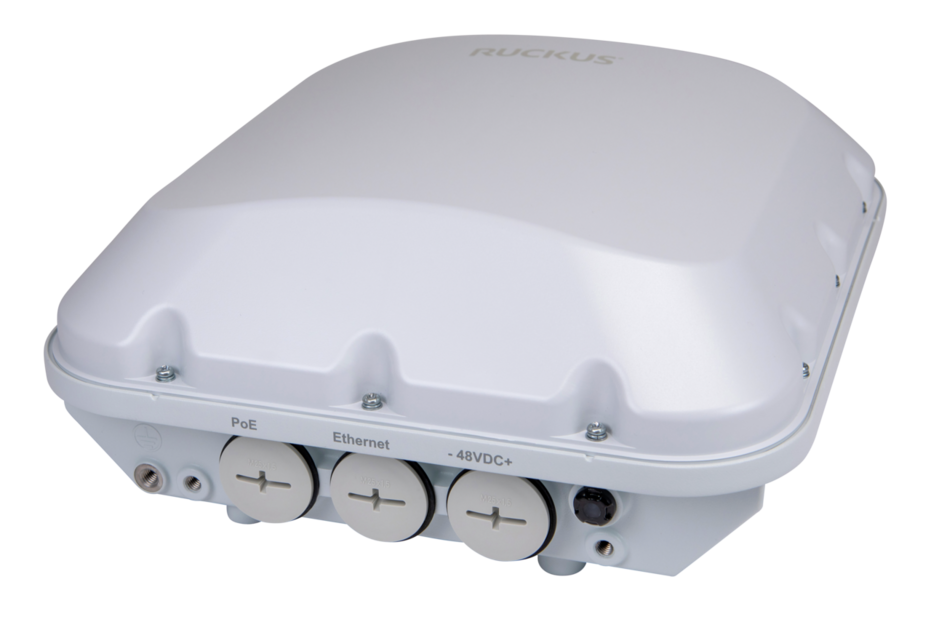

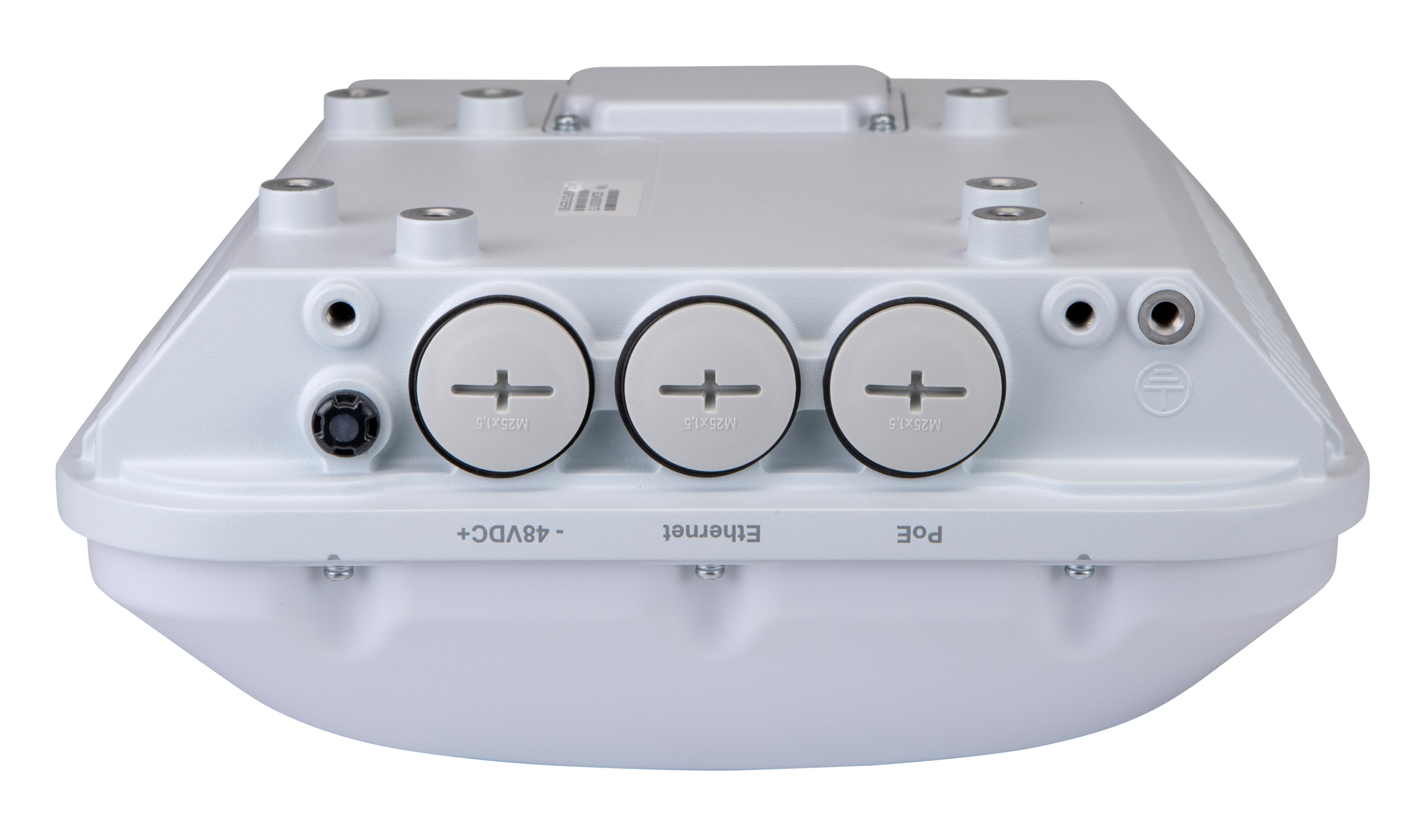

The T670 runs on 802.3bt PoE++, uPoE, or PoH and features a 5GbE primary uplink port plus a 1GbE aux port — giving you true multi-gigabit backhaul to match its wireless output. Mounting bracket included.
RUCKUS T670 Specifications
| Feature | Specification |
|---|---|
| Model | 9U1-T670-XX01 |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Bands | Tri-band (2.4GHz / 5GHz / 6GHz) |
| Streams | 2×2:2 per band (tri-band) / 2×2:2 + 4×4:4 (dual-band mode) |
| Peak Throughput | Up to 9.34 Gbps |
| Client Capacity | Up to 768 concurrent clients |
| SSIDs | Up to 36 per AP |
| Ethernet | 1x 5GbE RJ-45 (PoE++) + 1x 1GbE RJ-45 (aux) |
| Antenna | BeamFlex+ (thousands of patterns) |
| Mesh | SmartMesh supported |
| Channel Optimization | ChannelFly + RUCKUS AI RRM |
| Key Wi-Fi 7 Features | MLO, 4K-QAM, 320MHz channels, Preamble Puncturing, AFC |
| Security | WPA3, DPSK3, VLANs, ACLs, TPM 2.0, Secure Boot |
| IP Rating | IP-67 |
| Operating Temperature | -40°C to 65°C |
| Power | 802.3bt PoE++ / uPoE / PoH |
| Mounting | Wall / Pole / Surface |
| Management | Unleashed / RUCKUS AI Cloud / SmartZone |
Why Choose the RUCKUS T670?
The RUCKUS T670 Wi-Fi 7 Outdoor Access Point stands alone as the first enterprise-class outdoor Wi-Fi 7 AP on the market. With tri-band Wi-Fi 7, BeamFlex+ on all three bands, AFC on 6GHz, AI-driven radio management, a 5GbE backhaul port, and a -40°C to 65°C operating range — all in an IP-67-rated body that runs on standard PoE++ — the T670 brings a level of outdoor wireless performance that no previous access point has offered. If your outdoor space demands the best, the T670 is the answer.
