RUCKUS R850: Unleashed Wi-Fi 6 for Your Needs

RUCKUS 9U1-R850-XX00 Unleashed R850 Wi-Fi 6 Access Point – The Highest-Capacity Wi-Fi 6 AP for Ultra-Dense Spaces

When good enough is not good enough, there is the RUCKUS 9U1-R850-XX00 Unleashed R850 Wi-Fi 6 Dual-Band Access Point. Built with patented RUCKUS technologies, 8×8 MU-MIMO on 5GHz, and embedded IoT, this is RUCKUS’s highest-capacity Wi-Fi 6 access point — made for stadiums, large public venues, transit hubs, convention centers, and school auditoriums where thousands of devices need fast, reliable Wi-Fi all at once.

Wi-Fi 6 at Its Highest Capacity — 12 Spatial Streams

The R850 supports Wi-Fi 6 (802.11ax) with 12 spatial streams total — the most of any RUCKUS Wi-Fi 6 access point — giving you more room to serve more devices at full speed.

Dual-band concurrent (2.4GHz + 5GHz)
Peak data rates up to 5.95 Gbps (1,148 Mbps @ 2.4GHz + 4,800 Mbps @ 5GHz)
12 spatial streams — 8×8:8 on 5GHz + 4×4:4 on 2.4GHz
8×8 MU-MIMO and OFDMA for serving large numbers of devices at once
Target Wake Time (TWT) for better battery life on mobile and IoT devices
Supports up to 1,024 clients and 16 SSIDs per AP
5GbE primary port + 2.5GbE secondary port so the wired link never holds back wireless speed

This is the access point built for 4K video streams, latency-sensitive voice apps, and large-scale device deployments in the busiest indoor spaces.

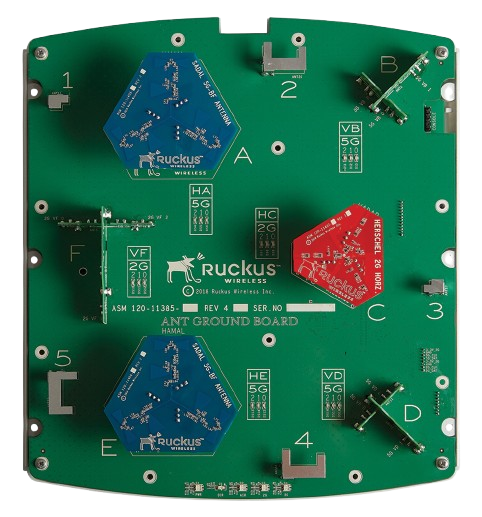

BeamFlex+ Adaptive Antennas – Over 4,000 Pattern Options

The R850 runs RUCKUS BeamFlex+ adaptive antenna technology with over 4,000 antenna pattern options — picked in real time, on a packet-by-packet basis, to give each device the best possible signal.

This gives you:

Wider coverage across large, busy indoor spaces
Less RF noise from nearby networks and devices
Better signal for every device — including older Wi-Fi 5 and 6 clients

Rather than sending signal in all directions, the R850 aims signal at each device as needed, boosting both range and speed at the same time.

ChannelFly & Ultra-High-Density Technology Suite

ChannelFly dynamic channel selection uses machine learning to find and move to the least busy channel at all times. The R850 also runs the full RUCKUS Ultra-High-Density (UHD) Technology Suite — built for the most packed wireless spaces on the planet.

This includes:

Airtime Decongestion to lift average throughput in heavy-load areas
Transient Client Management to cut noise from devices not yet joined
Adaptive band and client load balancing
Airtime fairness
SmartRoam for smooth client handoffs between APs

Your network stays fast and stable no matter how many people are online.

Embedded IoT + LTE Ready — All in One Unit

The R850 comes with onboard BLE and Zigbee radios built directly into the unit, plus a USB port for plug-in modules — including CBRS/OpenG modules for private LTE support.

No extra hardware needed for IoT from day one
Supports smart venue, asset tracking, and automation use cases
Ready for private LTE and future wireless tech via USB expansion

SmartMesh Networking – Deploy with Less Cable

With RUCKUS SmartMesh, the R850 builds self-forming, self-healing mesh networks at the click of a button — cutting the need for long cable runs and complex setup.

Strong Security Built In

The R850 keeps your network safe with:

Flexible Management Options

Controller-free (Unleashed)
Cloud management
SmartZone / ZoneDirector
Standalone mode

Scale from one AP to thousands with no added complexity. Full support for RUCKUS IoT Suite, Cloudpath security and onboarding, SPoT Wi-Fi locationing, and SCI network analytics.

Works with Your Current Setup

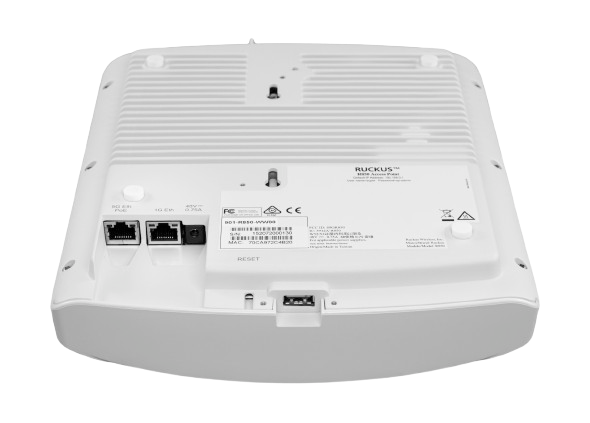

The R850 runs on uPoE, PoH, or 802.3at PoE and features a 5GbE primary uplink port plus a 2.5GbE secondary port — giving you true multi-gigabit backhaul to match its wireless output. Mounts on ceilings or walls.

RUCKUS R850 Specifications

Feature	Specification
Model	9U1-R850-XX00
Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Bands	Dual-band (2.4GHz / 5GHz)
Streams	8×8:8 (5GHz) + 4×4:4 (2.4GHz)
Peak Throughput	Up to 5.95 Gbps
Client Capacity	Up to 1,024 clients
SSIDs	Up to 16 per AP
Ethernet	1x 5GbE RJ-45 (primary) + 1x 2.5GbE RJ-45
IoT	Onboard BLE + Zigbee (embedded)
USB	1x USB port (CBRS/OpenG + IoT modules)
Antenna	BeamFlex+ (4,000+ patterns)
Mesh	SmartMesh supported
Channel Optimization	ChannelFly + UHD Technology Suite
Security	WPA3, VLANs, ACLs, Rogue AP detection
Power	uPoE / PoH / 802.3at PoE
Mounting	Wall / Ceiling
Management	Unleashed / Cloud / SmartZone

Why Choose the RUCKUS R850?

The RUCKUS R850 Wi-Fi 6 Access Point is the top of the Wi-Fi 6 line — and the right pick for any venue where device count and throughput demands push past what any other access point can handle. With 12 spatial streams, 8×8 MU-MIMO on 5GHz, a 5GbE backhaul port, the full UHD Technology Suite, and onboard IoT plus LTE-ready USB expansion, the R850 gives large venues the wireless backbone they need to run at full speed — without a dedicated controller.
