RUCKUS R770: Powerful Wi-Fi 7 Access Point

RUCKUS 9U1-R770-XX00 Unleashed R770 Wi-Fi 7 Access Point – Top-Tier Tri-Band Wireless for Ultra-Dense Environments

Bring the most powerful Wi-Fi 7 access point in its class to your network with the RUCKUS 9U1-R770-XX00 Unleashed R770 Wi-Fi 7 Tri-Band Access Point. Built with patented RUCKUS technologies, a 4×4 radio on 5GHz, and embedded IoT, this high-end access point is made for transit hubs, auditoriums, conference centers, large open offices, and any other space where Wi-Fi simply cannot fail — and no dedicated controller is needed.

Wi-Fi 7 Speed Across Three Full Bands

The R770 supports Wi-Fi 7 (802.11be) on all three bands at once, with eight spatial streams and a combined data rate of up to 12.22 Gbps — making it one of the fastest indoor access points on the market today.

Tri-band concurrent (2.4GHz + 5GHz + 6GHz)
Eight spatial streams — 2×2:2 (2.4GHz) + 4×4:4 (5GHz) + 2×2:2 (6GHz)
Combined data rate up to 12.22 Gbps
Multi-Link Operation (MLO) for lower latency and higher reliability
320MHz channels and 4K-QAM for peak throughput on 6GHz
Preamble Puncturing to cut through RF noise in busy spaces
Automated Frequency Coordination (AFC) for Standard Power mode on 6GHz — more range, more signal
10GbE backhaul port so the wired link never slows down wireless output
Supports up to 16 SSIDs per AP

Built for 8K video streaming, XR video calls, and large-scale device deployments — the R770 is the first enterprise-class Wi-Fi 7 access point to hit the market.

BeamFlex+ Adaptive Antennas on All Three Bands

The R770 runs RUCKUS BeamFlex+ adaptive antenna technology on all three bands — picking from thousands of antenna pattern options in real time, on a packet-by-packet basis, to give each device the best possible signal.

This gives you:

Wider coverage across large, busy indoor spaces
Less RF noise from nearby networks and devices
Better signal for every device — including older Wi-Fi 5 and 6 clients

Rather than sending signal in all directions, the R770 aims signal at each device as needed, boosting both range and speed at the same time.

AI-Driven Radio Management & ChannelFly

The R770 pairs ChannelFly dynamic channel selection with AI-driven Radio Resource Management (RRM) to keep your network running at peak performance with minimal manual effort.

Combined with:

Adaptive band and client load balancing
Airtime fairness
SmartRoam for smooth client handoffs between APs

Your network stays fast and stable — even in the most packed venues.

Embedded IoT — Built In, Not Bolted On

The R770 includes an onboard BLE and Zigbee radio built right into the unit, plus a USB port for plug-in modules to support new wireless protocols as they arrive.

No extra hardware needed for IoT from day one
Supports smart building, asset tracking, and automation use cases
Ready for future wireless tech via USB expansion

SmartMesh Networking – Deploy with Less Cable

With RUCKUS SmartMesh, the R770 builds self-forming, self-healing mesh networks at the click of a button — cutting the need for long cable runs and complex setup.

Strong Security Built In

The R770 keeps your network safe with:

WPA3 (Enterprise & Personal)
DPSK3 — combines dynamic passphrase ease with WPA3 security
TPM 2.0 and Secure Boot for hardware-level protection
VLAN support (802.1Q)
Access Control Lists (ACLs)
Device fingerprinting & policy control
Rogue AP detection
IPv4 / IPv6 dual stack

Flexible Management Options

Controller-free (Unleashed)
Cloud management
SmartZone / ZoneDirector
Standalone mode

Go from one AP to thousands with no added complexity. Auto-provisioning and seamless firmware updates keep things running smoothly at any scale.

Works with Your Current Setup

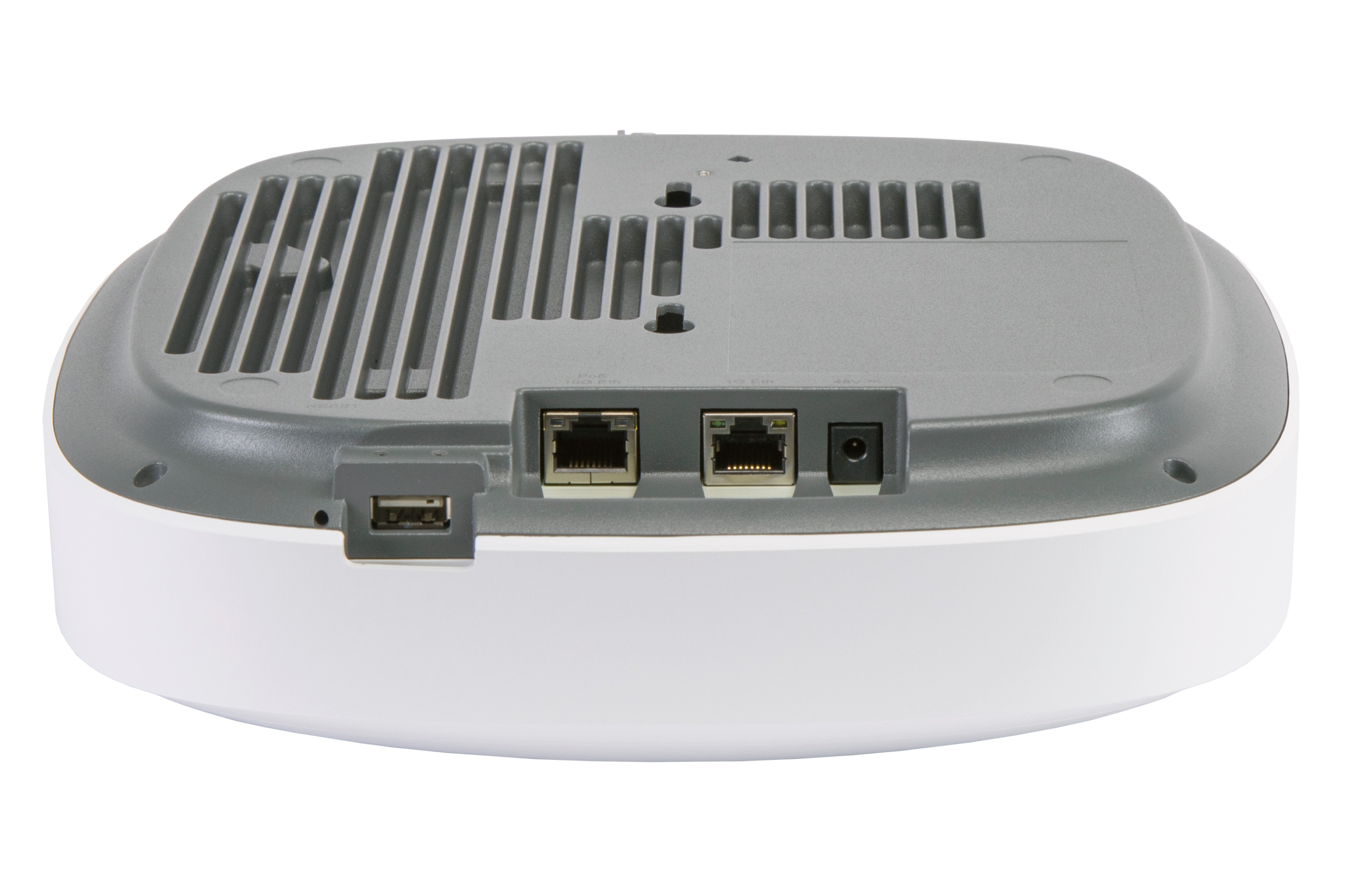

The R770 requires 802.3bt PoE++ (60W) for full tri-band operation and features a 10GbE uplink port plus a 1GbE aux port — giving you true multi-gigabit backhaul to match its wireless output. Mounts on ceilings, walls, or desktops.

RUCKUS R770 Specifications

Feature	Specification
Model	9U1-R770-XX00
Wi-Fi Standard	Wi-Fi 7 (802.11be)
Bands	Tri-band (2.4GHz / 5GHz / 6GHz)
Streams	2×2:2 (2.4GHz) + 4×4:4 (5GHz) + 2×2:2 (6GHz)
Peak Throughput	Up to 12.22 Gbps
SSIDs	Up to 16 per AP
Ethernet	1x 10GbE RJ-45 (PoE++) + 1x 1GbE RJ-45 (aux)
IoT	Onboard BLE + Zigbee (embedded)
USB	USB port (plug-in IoT module)
Antenna	BeamFlex+ on all three bands
Mesh	SmartMesh supported
Channel Optimization	ChannelFly + AI-driven RRM
Key Wi-Fi 7 Features	MLO, 4K-QAM, 320MHz channels, Preamble Puncturing, AFC
Security	WPA3, DPSK3, VLANs, ACLs, TPM 2.0, Secure Boot
Power	802.3bt PoE++ (60W)
Mounting	Wall / Ceiling / Desk
Management	Unleashed / Cloud / SmartZone

Why Choose the RUCKUS R770?

The RUCKUS R770 Wi-Fi 7 Access Point is the top pick for any venue where speed, client count, and reliability are non-negotiable. With a 4×4 radio on 5GHz, BeamFlex+ on all three bands, a 10GbE backhaul port, AFC on 6GHz, and AI-driven radio management, the R770 sets the bar for what an indoor Wi-Fi 7 access point can do — and backs it all up with the controller-free simplicity of Unleashed.
