RUCKUS R750: High-Performance Wi-Fi 6 Access Point

RUCKUS 9U1-R750-XX00 Unleashed R750 Wi-Fi 6 Access Point – High-End 4×4 Wireless for Ultra-Dense Environments

Push your wireless network to its limits with the RUCKUS 9U1-R750-XX00 Unleashed R750 Wi-Fi 6 Dual-Band Access Point. Built with patented RUCKUS technologies, 4×4 MU-MIMO on both bands, and embedded IoT, this top-tier access point is made for transit hubs, auditoriums, conference centers, large classrooms, and other high-traffic spaces that need serious wireless muscle — without a dedicated controller.

Wi-Fi 6 Speed Across Both Bands — At Full 4×4 Power

The R750 supports Wi-Fi 6 (802.11ax) with a full 4×4 radio on both the 2.4GHz and 5GHz bands — a key step up from mid-range APs that only run 4×4 on 5GHz.

Dual-band concurrent (2.4GHz + 5GHz)
Peak data rates up to 3.55 Gbps (1,148 Mbps @ 2.4GHz + 2,400 Mbps @ 5GHz)
Eight spatial streams — 4×4:4 on both bands
4×4 MU-MIMO and OFDMA for serving many devices at once
Target Wake Time (TWT) for better battery life on mobile and IoT devices
Supports up to 1,024 clients and 16 SSIDs per AP
2.5GbE backhaul port so the wired link never holds back wireless speed

The R750 is also the first Wi-Fi 6 access point to earn Wi-Fi CERTIFIED 6 status from the Wi-Fi Alliance — and is part of their test lab for certifying other devices.

BeamFlex+ Adaptive Antennas – Smarter, Stronger Coverage

The R750 uses RUCKUS BeamFlex+ adaptive antenna technology, picking from a large set of antenna patterns in real time — on a packet-by-packet basis — to give each device the best possible signal.

This gives you:

Wider coverage across large, busy indoor spaces
Less RF noise from nearby networks and devices
Better signal for every device — including older Wi-Fi 5 and 6 clients

Rather than sending signal in all directions, the R750 aims signal at each device as needed, boosting both range and speed at the same time.

ChannelFly & Ultra-High-Density Technology Suite

ChannelFly dynamic channel selection uses machine learning to find and move to the least busy channel at all times. The R750 also runs the full RUCKUS Ultra-High-Density (UHD) Technology Suite — built for the most packed wireless spaces.

This includes:

Airtime Decongestion to lift average throughput in heavy-load areas
Transient Client Management to cut noise from devices that are not yet joined
Adaptive band and client load balancing
Airtime fairness
SmartRoam for smooth client handoffs between APs

Your network stays fast and stable no matter how many people are online.

Embedded IoT — Built In, Not Bolted On

The R750 comes with onboard BLE and Zigbee radios built directly into the unit, plus a USB 2.0 port for plug-in modules to support future wireless protocols.

No extra hardware needed for IoT from day one
Supports smart building, asset tracking, and automation use cases
Ready for new wireless tech as it arrives via USB expansion

SmartMesh Networking – Deploy with Less Cable

With RUCKUS SmartMesh, the R750 builds self-forming, self-healing mesh networks at the click of a button — cutting the need for long cable runs and complex setup.

Strong Security Built In

The R750 keeps your network safe with:

Flexible Management Options

Controller-free (Unleashed)
Cloud management
SmartZone / ZoneDirector
Standalone mode

Scale from one AP to thousands without added complexity. Full support for RUCKUS IoT Suite, Cloudpath security and onboarding, SPoT Wi-Fi locationing, and SCI network analytics.

Works with Your Current Setup

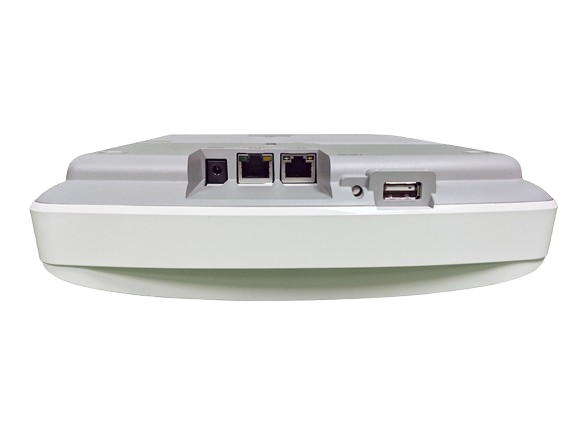

The R750 runs on 802.3at PoE+ and features a 2.5GbE uplink port plus a 1GbE port — giving you multi-gigabit backhaul without a full switch upgrade. Mounts on ceilings, walls, or desktops.

RUCKUS R750 Specifications

Feature	Specification
Model	9U1-R750-XX00
Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Bands	Dual-band (2.4GHz / 5GHz)
Streams	4×4:4 (5GHz) + 4×4:4 (2.4GHz)
Peak Throughput	Up to 3.55 Gbps
Client Capacity	Up to 1,024 clients
SSIDs	Up to 16 per AP
Ethernet	1x 2.5GbE RJ-45 (PoE+) + 1x 1GbE RJ-45
IoT	Onboard BLE + Zigbee (embedded)
USB	1x USB 2.0 (plug-in IoT module)
Antenna	BeamFlex+ adaptive patterns
Mesh	SmartMesh supported
Channel Optimization	ChannelFly + UHD Technology Suite
Certification	Wi-Fi CERTIFIED 6 (Wi-Fi Alliance)
Security	WPA3, VLANs, ACLs, Rogue AP detection
Power	802.3at PoE+
Mounting	Wall / Ceiling / Desk
Management	Unleashed / Cloud / SmartZone

Why Choose the RUCKUS R750?

The RUCKUS R750 Wi-Fi 6 Access Point is the right pick for venues where device counts are high and performance cannot drop. With 4×4 MU-MIMO on both bands, up to 1,024 clients, a 2.5GbE backhaul port, the full UHD Technology Suite, and Wi-Fi Alliance certification, the R750 is in a class of its own among Wi-Fi 6 access points — and the clear choice for any space where Wi-Fi needs to just work, every time.
