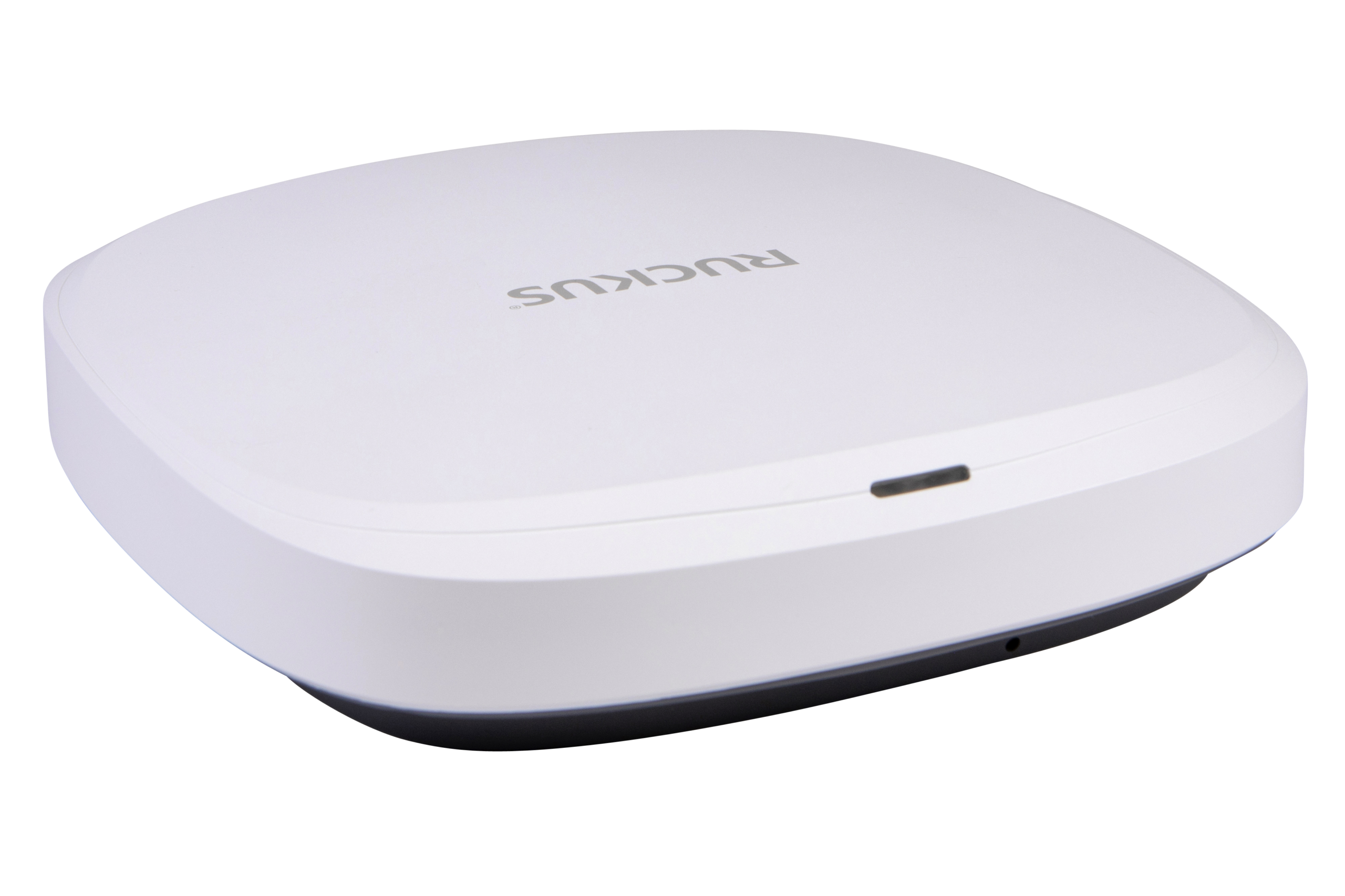

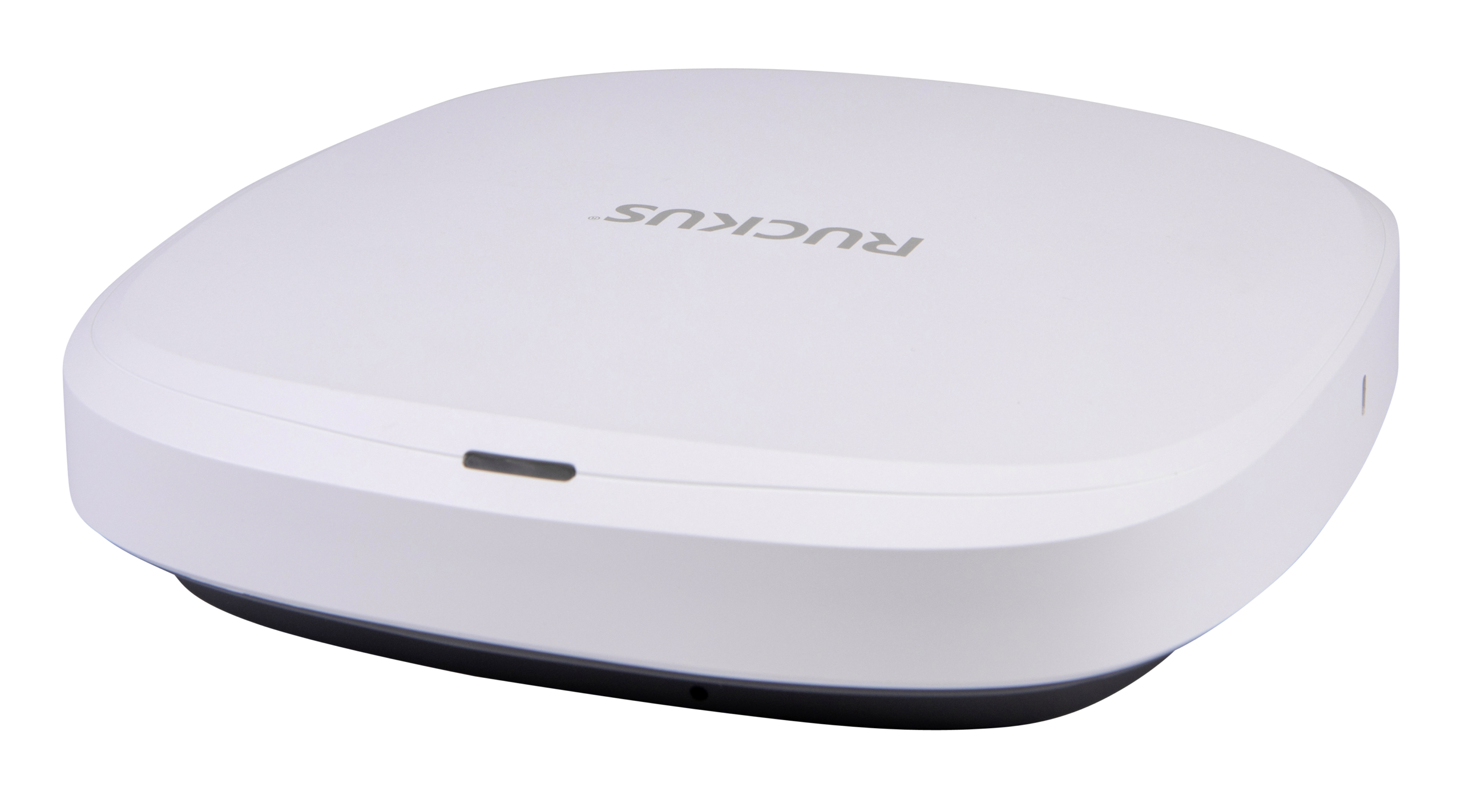

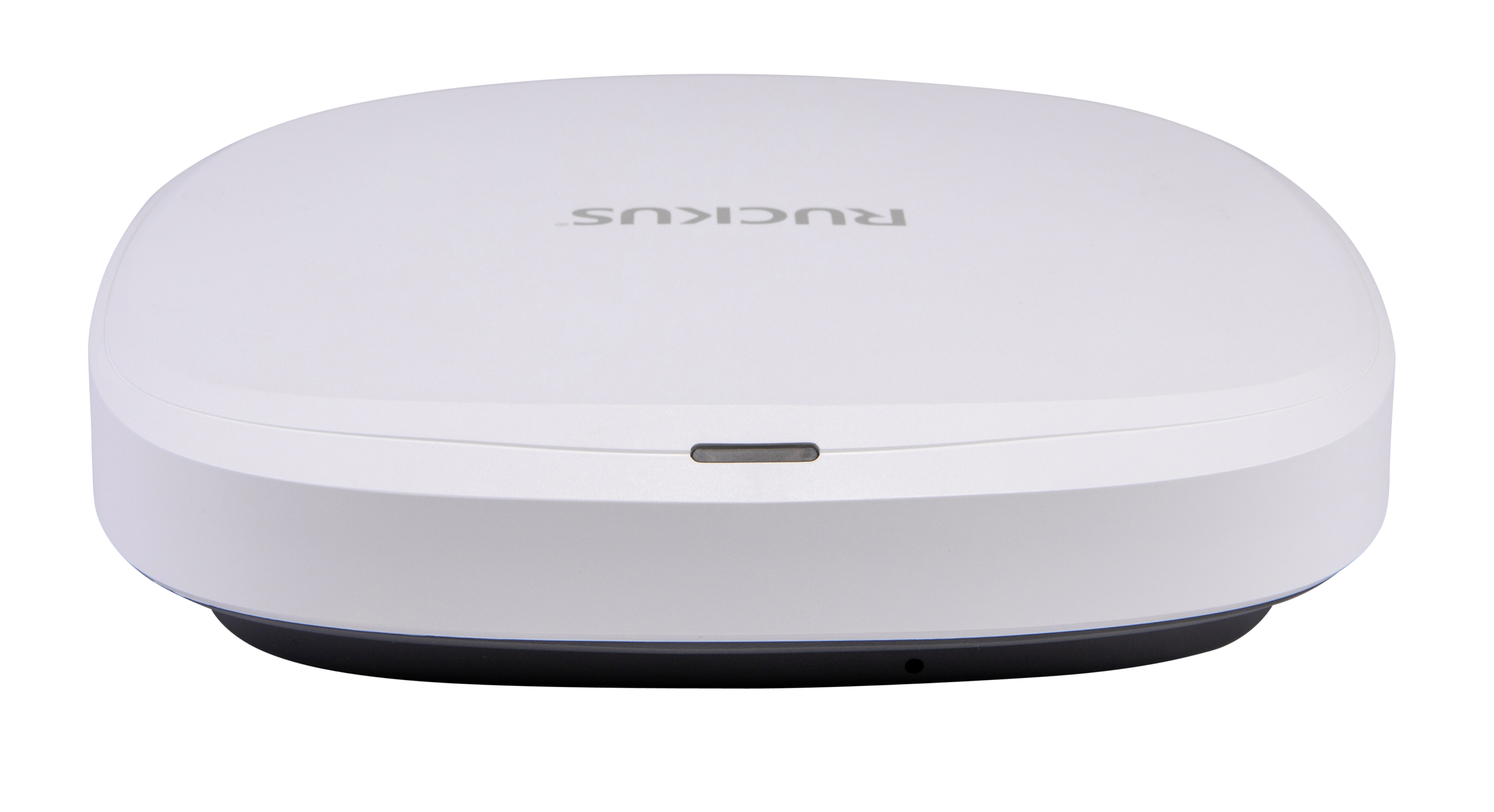

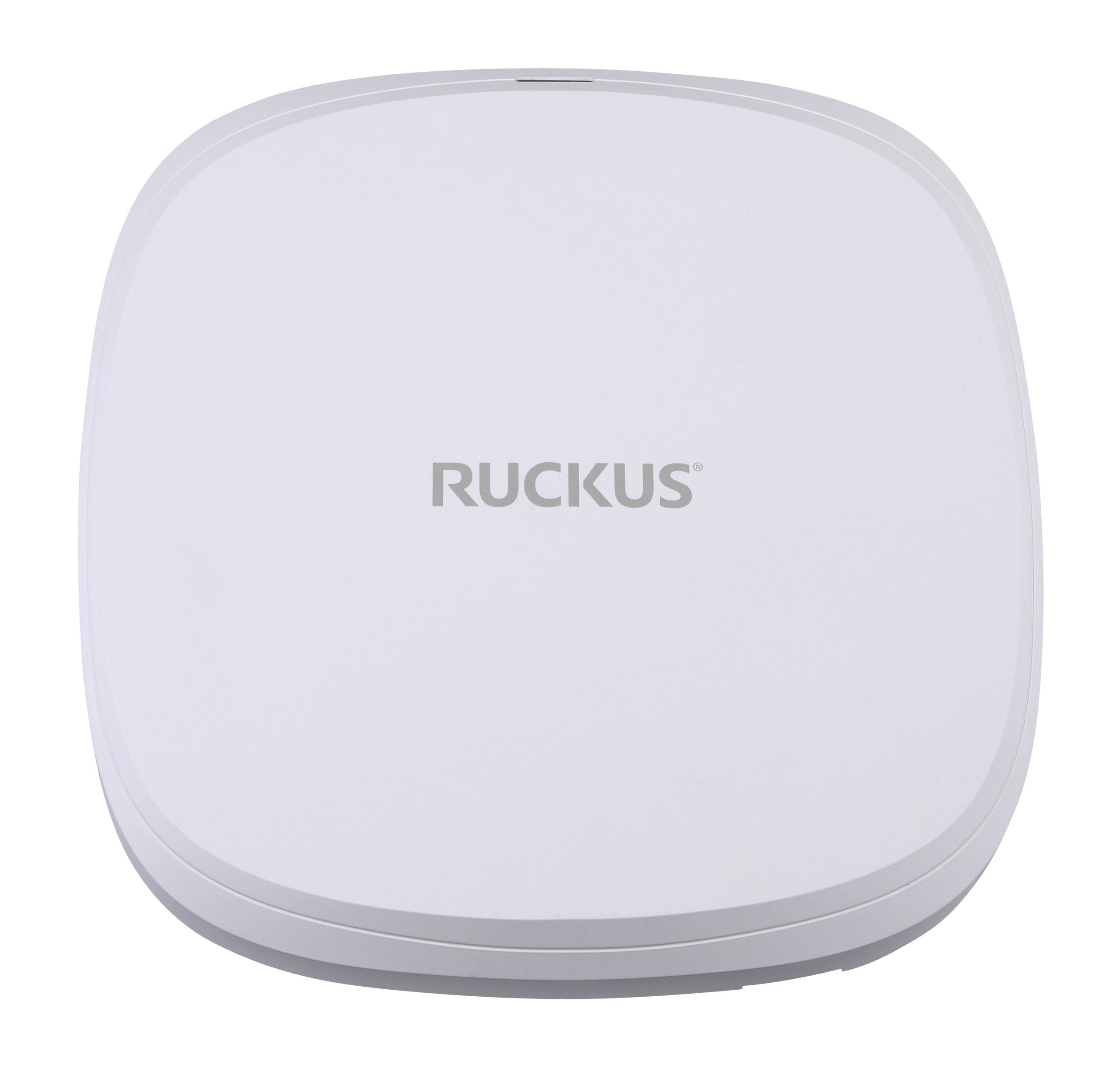

RUCKUS 9U1-R670-XX00 Unleashed R670 Wi-Fi 7 Access Point – Tri-Band Performance for Modern Dense Environments
Take your wireless network to the next level with the RUCKUS 9U1-R670-XX00 Unleashed R670 Wi-Fi 7 Tri-Band Access Point. Built with patented RUCKUS technologies, Wi-Fi 7 speed, and embedded IoT, this access point is made for hotel rooms, guest areas, classrooms, and busy offices that need fast, reliable Wi-Fi without a dedicated controller.
Wi-Fi 7 Speed Across Three Bands
The R670 supports Wi-Fi 7 (802.11be) on all three bands — 2.4GHz, 5GHz, and 6GHz — giving you more channels, less congestion, and far greater speed than Wi-Fi 6.
- Tri-band concurrent (2.4GHz + 5GHz + 6GHz)
- Combined data rate up to 9.34 Gbps
- Six spatial streams — 2×2:2 per band in tri-band mode, or 2×2:2 (2.4GHz) + 4×4:4 (5GHz) in dual-band mode
- Multi-Link Operation (MLO) for lower latency and better reliability
- 320MHz channels and 4K-QAM for peak throughput
- Preamble Puncturing to cut through interference in busy RF areas
- Supports up to 768 clients and 16 SSIDs per AP
- 5GbE backhaul port so the wired link never slows down wireless output
This handles 4K/8K video, voice, and cloud apps all at once — with no slowdowns.
BeamFlex+ Adaptive Antennas – Smarter Coverage
The R670 uses RUCKUS BeamFlex+ adaptive antenna technology with over 4,000 antenna pattern choices per band, selected in real time on a packet-by-packet basis.
This gives you:
- Wider Wi-Fi coverage across hard indoor spaces
- Less RF noise from nearby networks and devices
- Stronger signal for every device — including older Wi-Fi 5 and 6 devices
Rather than sending signal in all directions, the R670 aims signal at each device as needed, boosting both range and speed at the same time.
ChannelFly & Advanced RF Management
ChannelFly dynamic channel selection uses machine learning to scan the RF space and move to the least busy channel at all times.
Paired with:
- Adaptive band and client load balancing
- Airtime fairness
- SmartRoam for smooth client handoffs
Your network stays fast and stable — even in crowded venues.
Embedded IoT — Ready Out of the Box
The R670 includes an onboard BLE or Zigbee radio built right into the unit, plus a USB 2.0 port for plug-in modules to support future wireless protocols.
- No extra hardware needed for IoT from day one
- Supports smart building, asset tracking, and automation use cases
- Ready for new wireless tech as it arrives
SmartMesh Networking – Deploy with Less Cable
With RUCKUS SmartMesh, the R670 builds self-forming, self-healing mesh networks at the click of a button — cutting the need for long cable runs and complex setup.
Strong Security Built In
The R670 keeps your network safe with:
- WPA3 (Enterprise & Personal)
- VLAN support (802.1Q)
- Access Control Lists (ACLs)
- Device fingerprinting & policy control
- TPM 2.0 and Secure Boot
- IPv4 / IPv6 dual stack
Flexible Management Options
- Controller-free (Unleashed)
- Cloud management
- SmartZone / ZoneDirector
- Standalone mode
Go from one AP to thousands with no added complexity. Auto-provisioning and easy firmware updates keep your network running smoothly.
Works with Your Current Setup

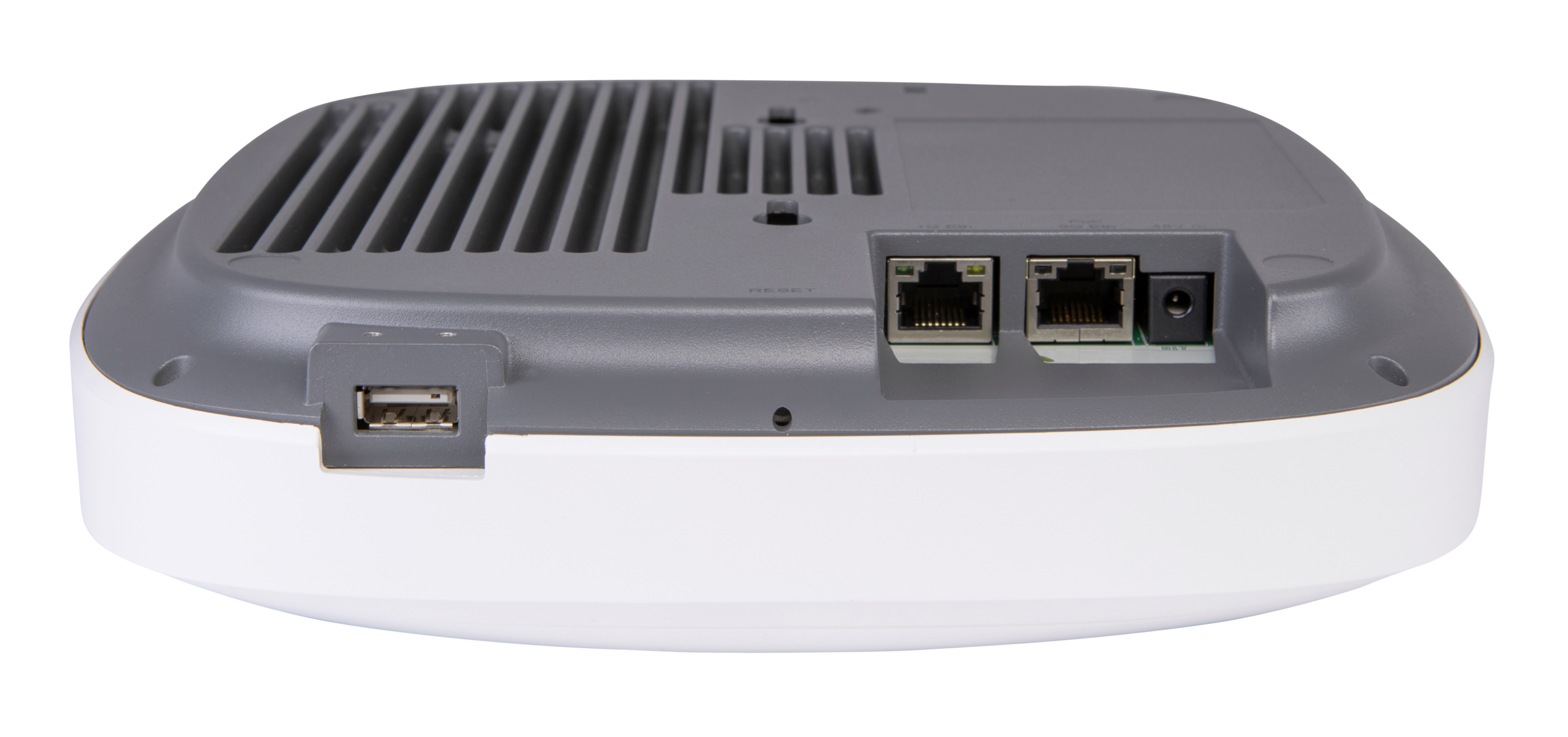

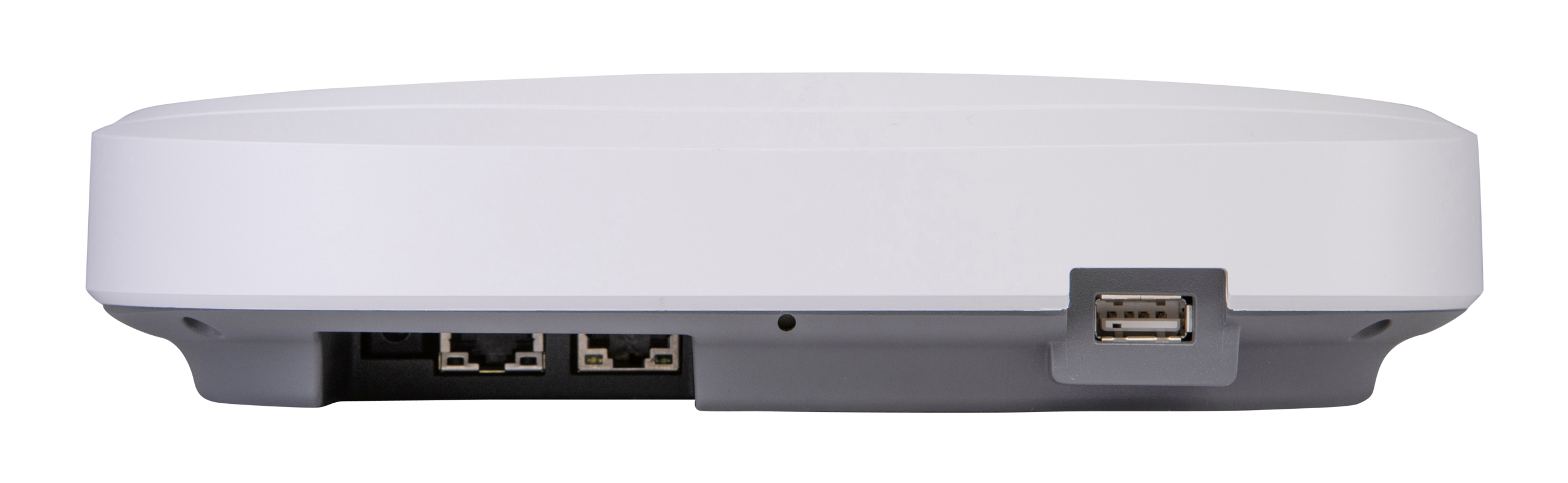

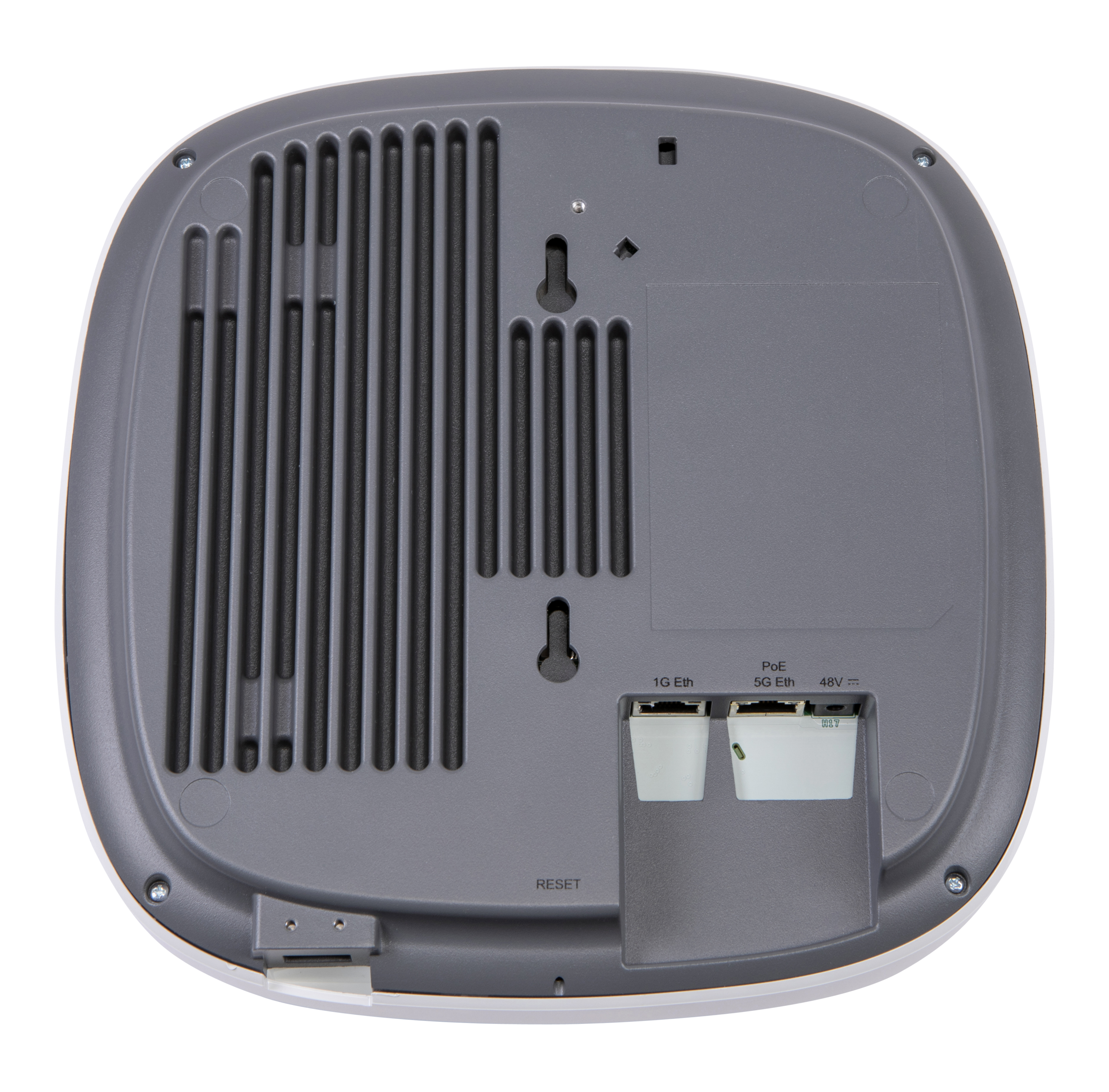

The R670 runs on 802.3bt PoE++ (60W) for full tri-band use and includes a 5GbE uplink port plus a 1GbE port — so you get full multi-gigabit backhaul without replacing your whole switch stack. Mounts on ceilings, walls, or desktops.
RUCKUS R670 Specifications
| Feature | Specification |
|---|---|
| Model | 9U1-R670-XX00 |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Bands | Tri-band (2.4GHz / 5GHz / 6GHz) |
| Streams | 2×2:2 per band (tri-band) / 2×2:2 + 4×4:4 (dual-band mode) |
| Peak Throughput | Up to 9.34 Gbps |
| Client Capacity | Up to 768 clients |
| SSIDs | Up to 16 per AP |
| Ethernet | 1x 5GbE RJ-45 (PoE++) + 1x 1GbE RJ-45 |
| IoT | Onboard BLE or Zigbee (selectable) |
| USB | 1x USB 2.0 (plug-in IoT module) |
| Antenna | BeamFlex+ (4,000+ patterns) |
| Mesh | SmartMesh supported |
| Channel Optimization | ChannelFly |
| Key Wi-Fi 7 Features | MLO, 4K-QAM, 320MHz channels, Preamble Puncturing |
| Security | WPA3, VLANs, ACLs, TPM 2.0, Secure Boot |
| Power | 802.3bt PoE++ (60W) |
| Mounting | Wall / Ceiling / Desk |
| Management | Unleashed / Cloud / SmartZone |
Why Choose the RUCKUS R670?
The RUCKUS R670 Wi-Fi 7 Access Point is the right pick for venues that need more speed, more clients, and more bands — without the cost of a top-tier AP. With Wi-Fi 7 on all three bands, a 5GbE backhaul port, MLO, and RUCKUS BeamFlex+ technology, the R670 is a clear step up from any Wi-Fi 6 access point — and a strong choice for any new build or upgrade project.
