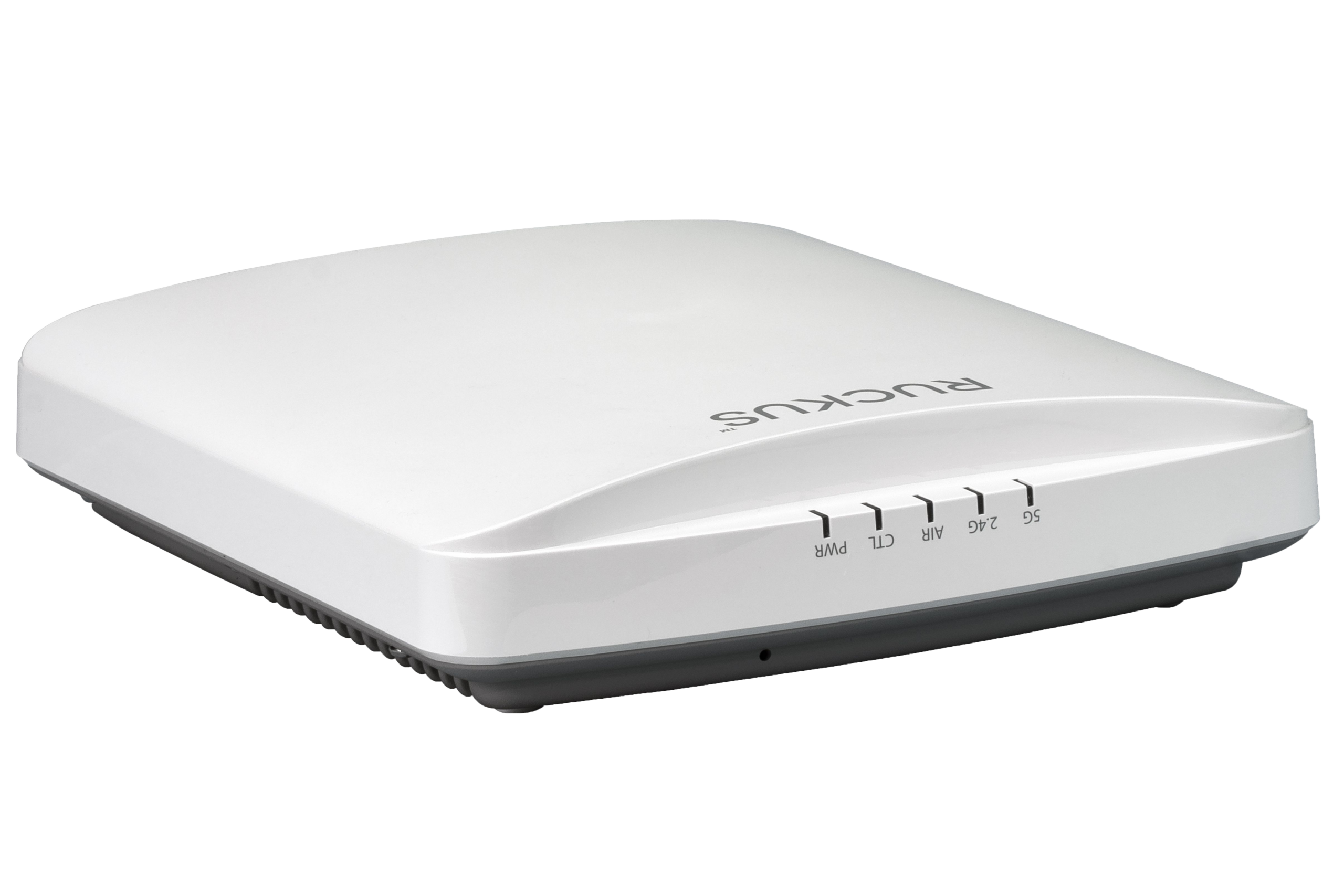

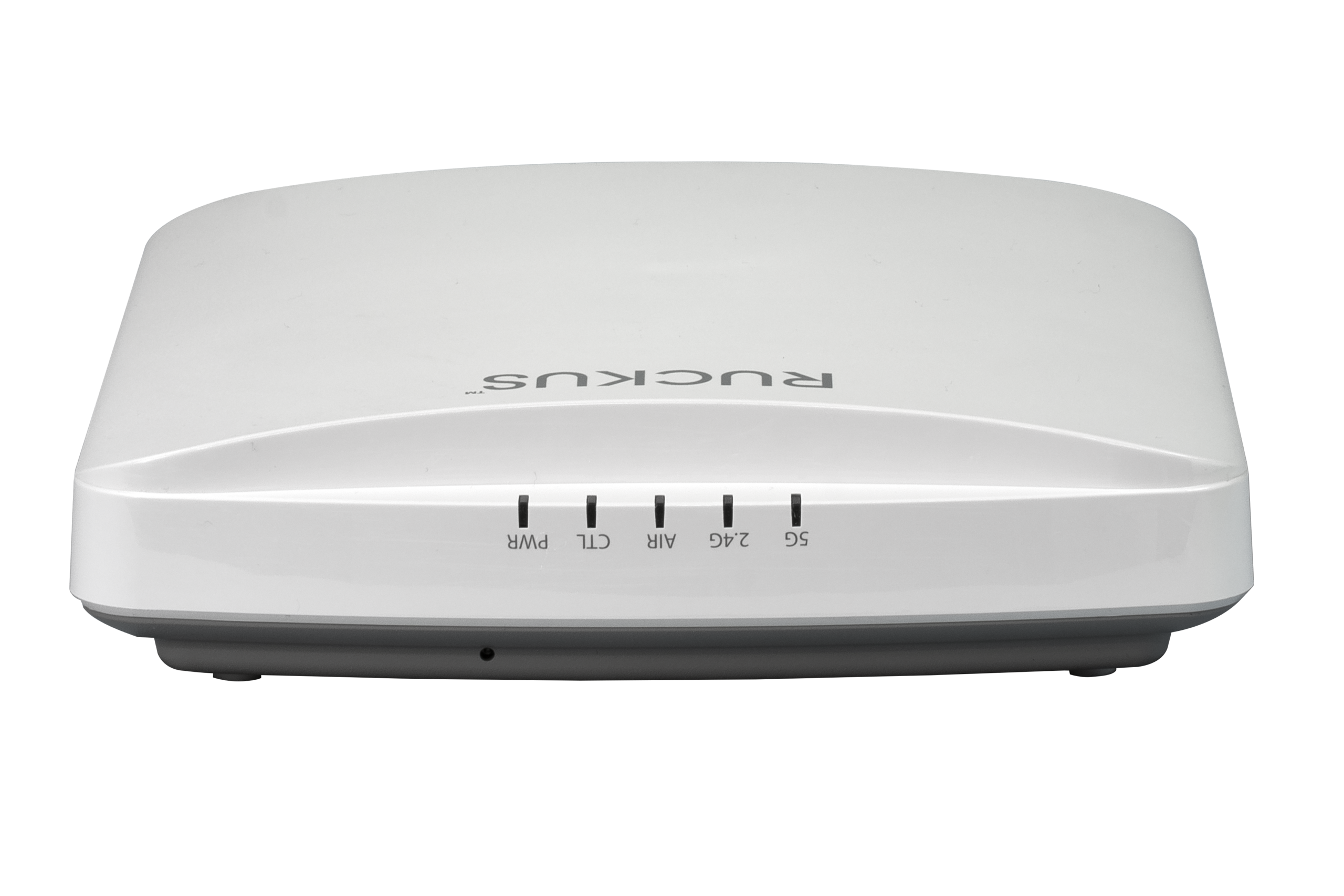

RUCKUS 9U1-R650-XX00 Unleashed R650 Wi-Fi 6 Access Point – High-Performance 4×4 Wireless for Dense Environments
Step up your wireless infrastructure with the RUCKUS 9U1-R650-XX00 Unleashed R650 Wi-Fi 6 Dual-Band Access Point. Built with patented RUCKUS technologies, 4×4 MU-MIMO performance, and embedded IoT, this high-performance access point is designed for office buildings, K-12 classrooms, libraries, and retail venues that need serious capacity, extended coverage, and enterprise-grade reliability — without the complexity of a dedicated controller.
Wi-Fi 6 Speed & Efficiency for High-Density Deployments
The R650 supports the latest Wi-Fi 6 (802.11ax) standard with six spatial streams, delivering dramatically improved capacity and throughput in environments where device counts and bandwidth demands are at their highest.
- Dual-band (2.4GHz + 5GHz) concurrent radios
- Peak PHY rates up to 2.974 Gbps (574 Mbps @ 2.4GHz + 2,400 Mbps @ 5GHz)
- 4×4:4 MU-MIMO in 5GHz and 2×2:2 in 2.4GHz for maximum simultaneous connections
- OFDMA and Target Wake Time (TWT) for improved efficiency and device battery life
- Supports up to 512 clients and 16 SSIDs per AP
- 2.5GbE backhaul port ensures the wired connection never bottlenecks wireless capacity
This ensures smooth, uninterrupted performance for cloud apps, VoIP, video conferencing, and high-density device environments.
BeamFlex+ Adaptive Antennas – Smarter, Stronger Coverage
Unlike traditional access points, the R650 uses RUCKUS BeamFlex+ adaptive antenna technology, dynamically selecting from a host of antenna patterns per band in real time — on a packet-by-packet basis.
This delivers:
- Extended Wi-Fi coverage across challenging indoor spaces
- Reduced RF interference from neighboring networks and devices
- Stronger, per-device signal optimization — including legacy Wi-Fi 4 and 5 devices
Instead of broadcasting in all directions, the R650 focuses signal precisely where it’s needed, improving both coverage and capacity simultaneously.
ChannelFly & Ultra-High-Density Technology Suite
The ChannelFly dynamic channel selection uses machine learning to continuously analyze real-time RF conditions and automatically migrate to the least-congested channels. The R650 also includes RUCKUS’s Ultra-High-Density (UHD) Technology Suite, purpose-built for packed environments.
Combined with:
- Airtime Decongestion
- Transient Client Management
- Adaptive band balancing and client load balancing
- Airtime fairness
- SmartRoam mobility
You get consistently optimized throughput, even in the most congested wireless environments.
Embedded IoT — Built In, Not Bolted On
The R650 features onboard BLE and Zigbee radios built directly into the access point, with an additional USB 2.0 port for pluggable IoT modules supporting future wireless protocols.
- Eliminate siloed Wi-Fi and IoT networks from day one
- Enable smart building, asset tracking, and automation use cases out of the box
- Future-ready for emerging wireless technologies via USB expansion
SmartMesh Networking – Flexible Deployment
With RUCKUS SmartMesh, the R650 can create self-forming, self-healing wireless mesh networks — reducing the need for Ethernet cabling. Ideal for hard-to-wire locations, faster deployments, and lower installation costs.
Enterprise-Grade Security & Networking
Built for demanding business and education environments, the R650 includes:
- WPA3 security (Enterprise & Personal)
- VLAN support (802.1Q)
- Access Control Lists (ACLs)
- Device fingerprinting & policy control
- Rogue AP detection
- IPv4 / IPv6 dual stack
Flexible Management Options
- Controller-free (Unleashed)
- Cloud management
- SmartZone / ZoneDirector
- Standalone mode
Scale easily from a single AP to thousands — without complexity. Full integration with RUCKUS IoT Suite, Cloudpath security and onboarding, SPoT Wi-Fi locationing, and SCI network analytics.
Easy Deployment with Existing Infrastructure

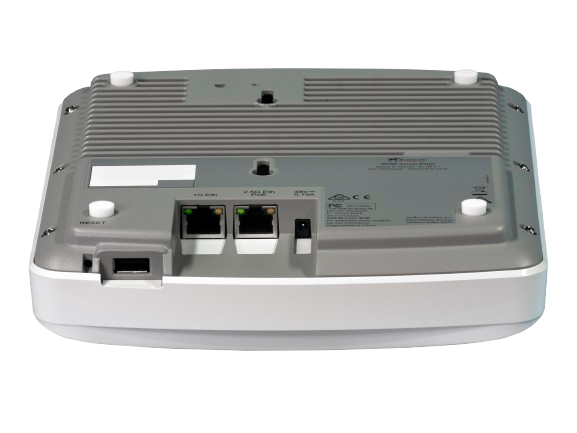

The R650 is powered via 802.3at PoE+ and features a dedicated 2.5GbE uplink port alongside a 1GbE port, ensuring maximum backhaul throughput without costly switch upgrades. Compact and lightweight, it mounts discreetly on ceilings, walls, or desktops.
RUCKUS R650 Specifications
| Feature | Specification |
|---|---|
| Model | 9U1-R650-XX00 |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Bands | Dual-band (2.4GHz / 5GHz) |
| Streams | 4×4:4 (5GHz) / 2×2:2 (2.4GHz) |
| Peak Throughput | Up to 2.974 Gbps |
| Client Capacity | Up to 512 clients |
| SSIDs | Up to 16 per AP |
| Ethernet | 1x 2.5GbE RJ-45 (PoE+) + 1x 1GbE RJ-45 |
| IoT | Onboard BLE + Zigbee (embedded) |
| USB | 1x USB 2.0 (pluggable IoT module) |
| Antenna | BeamFlex+ adaptive patterns |
| Mesh | SmartMesh supported |
| Channel Optimization | ChannelFly + UHD Technology Suite |
| Security | WPA3, VLANs, ACLs, Rogue AP detection |
| Power | 802.3at PoE+ |
| Mounting | Wall / Ceiling / Desk |
| Management | Unleashed / Cloud / SmartZone |
Why Choose the RUCKUS R650?
The RUCKUS R650 Wi-Fi 6 Access Point is the definitive mid-range choice for organizations that have outgrown 2×2 access points but don’t yet need a tri-band solution. With six spatial streams, a 2.5GbE backhaul port, embedded IoT, and RUCKUS’s proven BeamFlex+ and ChannelFly technologies, the R650 delivers a level of density performance and future-proofing that generic access points simply cannot match — in classrooms, open offices, libraries, and retail floors alike.
