RUCKUS R550: High-Performance Networking Solution

RUCKUS 9U1-R550-XX00 Unleashed R550 Wi-Fi 6 Access Point – Mid-Tier Performance for Medium-Density Environments

Tackle rising Wi-Fi demands head-on with the RUCKUS 9U1-R550-XX00 Unleashed R550 Wi-Fi 6 Dual-Band Access Point. Built with patented RUCKUS technologies, Wi-Fi 6 performance, and embedded IoT, this mid-tier access point is designed for classrooms, office spaces, residence halls, and medium-size venues that need increased capacity, extended coverage, and enterprise-grade reliability without breaking the budget.

Wi-Fi 6 Speed & Efficiency for Dense Environments

The R550 supports the latest Wi-Fi 6 (802.11ax) standard, delivering faster speeds, lower latency, and dramatically improved efficiency where device counts and bandwidth demands are high.

Dual-band (2.4GHz + 5GHz) concurrent radios
Peak PHY rates up to 1.774 Gbps (574 Mbps @ 2.4GHz + 1,200 Mbps @ 5GHz)
2×2:2 MU-MIMO and OFDMA for simultaneous, efficient device connections
Target Wake Time (TWT) for improved battery life on IoT and mobile devices
Supports up to 512 clients and 16 SSIDs per AP

This ensures smooth performance for cloud apps, VoIP, video conferencing, and high-density device environments.

BeamFlex+ Adaptive Antennas – Smarter Coverage

Unlike traditional access points, the R550 uses RUCKUS BeamFlex+ adaptive antenna technology with up to 64 dynamic antenna patterns per band — selected in real time on a packet-by-packet basis.

This delivers:

Extended Wi-Fi coverage across challenging indoor environments
Reduced RF interference from neighboring networks and devices
Stronger, per-device signal optimization — including legacy Wi-Fi 4 and 5 devices

Instead of broadcasting in all directions, the R550 focuses signal where it’s needed, improving both coverage and capacity simultaneously.

ChannelFly & Advanced RF Intelligence

The ChannelFly dynamic channel selection uses machine learning to continuously analyze real-time RF conditions and automatically migrate to the least-congested channels.

Combined with:

Adaptive band balancing
Client load balancing
Airtime fairness
SmartRoam mobility

You get consistently optimized throughput, even in the most crowded wireless environments.

Embedded IoT — No USB Module Required

Unlike entry-level RUCKUS APs, the R550 takes IoT a step further with onboard BLE and Zigbee radios built directly into the access point — no optional USB module needed. A pluggable IoT module via USB is also supported for future wireless technologies.

Eliminate siloed Wi-Fi and IoT networks from day one
Enable smart building, asset tracking, and automation use cases out of the box
Future-ready for emerging wireless protocols via the USB expansion port

SmartMesh Networking – Flexible Deployment

With RUCKUS SmartMesh, the R550 can create self-forming, self-healing wireless mesh networks — reducing the need for Ethernet cabling. Ideal for hard-to-wire locations, faster deployments, and lower installation costs.

Enterprise-Grade Security & Networking

Built for business and education environments, the R550 includes:

Flexible Management Options

Controller-free (Unleashed)
Cloud management
SmartZone / ZoneDirector
Standalone mode

Scale easily from a single AP to thousands — without complexity. The Unleashed mobile app allows practically anyone to manage the network, with no specialized IT expertise required.

Easy Deployment with Existing Infrastructure

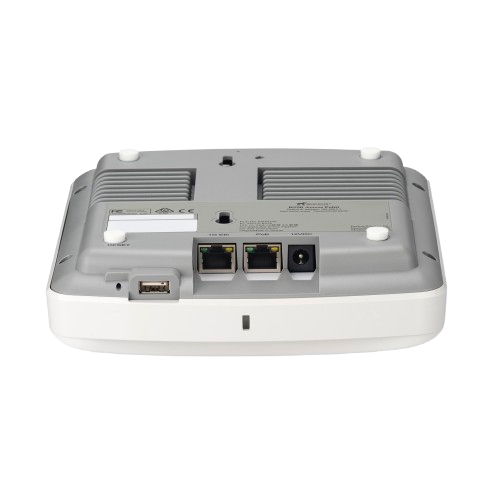

The R550 is powered via 802.3at PoE and works with existing CAT5e cabling, minimizing upgrade costs. Dual Ethernet ports support wired client connections or mesh backhaul. Compact and lightweight, it mounts discreetly on ceilings, walls, or desktops.

RUCKUS R550 Specifications

Feature	Specification
Model	9U1-R550-XX00
Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Bands	Dual-band (2.4GHz / 5GHz)
Streams	2×2:2 MU-MIMO
Peak Throughput	Up to 1.774 Gbps
Client Capacity	Up to 512 clients
SSIDs	Up to 16 per AP
Ethernet	2x 1GbE RJ-45
IoT	Onboard BLE + Zigbee (embedded)
USB	1x USB 2.0 (pluggable IoT module)
Antenna	BeamFlex+ (up to 64 patterns)
Mesh	SmartMesh supported
Channel Optimization	ChannelFly
Security	WPA3, VLANs, ACLs, Rogue AP detection
Power	802.3at PoE
Mounting	Wall / Ceiling / Desk
Management	Unleashed / Cloud / SmartZone

Why Choose the RUCKUS R550?

The RUCKUS R550 Wi-Fi 6 Access Point is the ideal mid-tier choice for organizations facing growing device density and bandwidth demands. With embedded IoT radios, machine-learning RF optimization, and proven RUCKUS BeamFlex+ technology, it delivers a level of performance and versatility that generic access points simply cannot match — at a price point that makes sense for K-12 schools, SMBs, hospitality venues, and branch offices alike.
