Home » RUCKUS R370 Wi-Fi 7 Dual-Band Entry-Level Wireless Access Point 2×2:2 Streams 802.11be Up to 256 Clients PoE Support Wireless Access Point (901-R370-XX02)
Share Print
RUCKUS R370 Wi-Fi 7 Dual-Band Entry-Level Wireless Access Point 2x2:2 Streams 802.11be Up to 256 Clients PoE Support Wireless Access Point (901-R370-XX02)

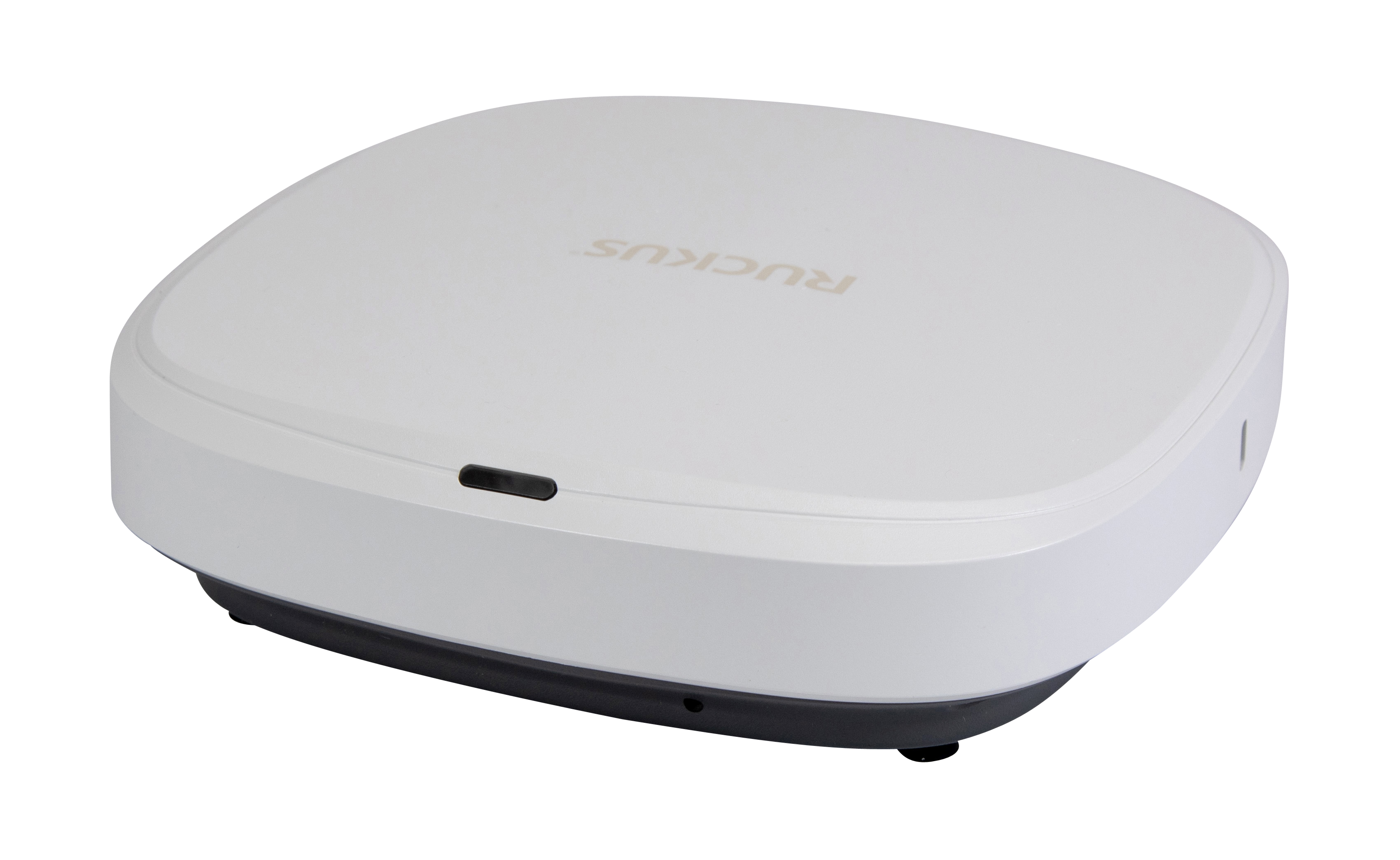

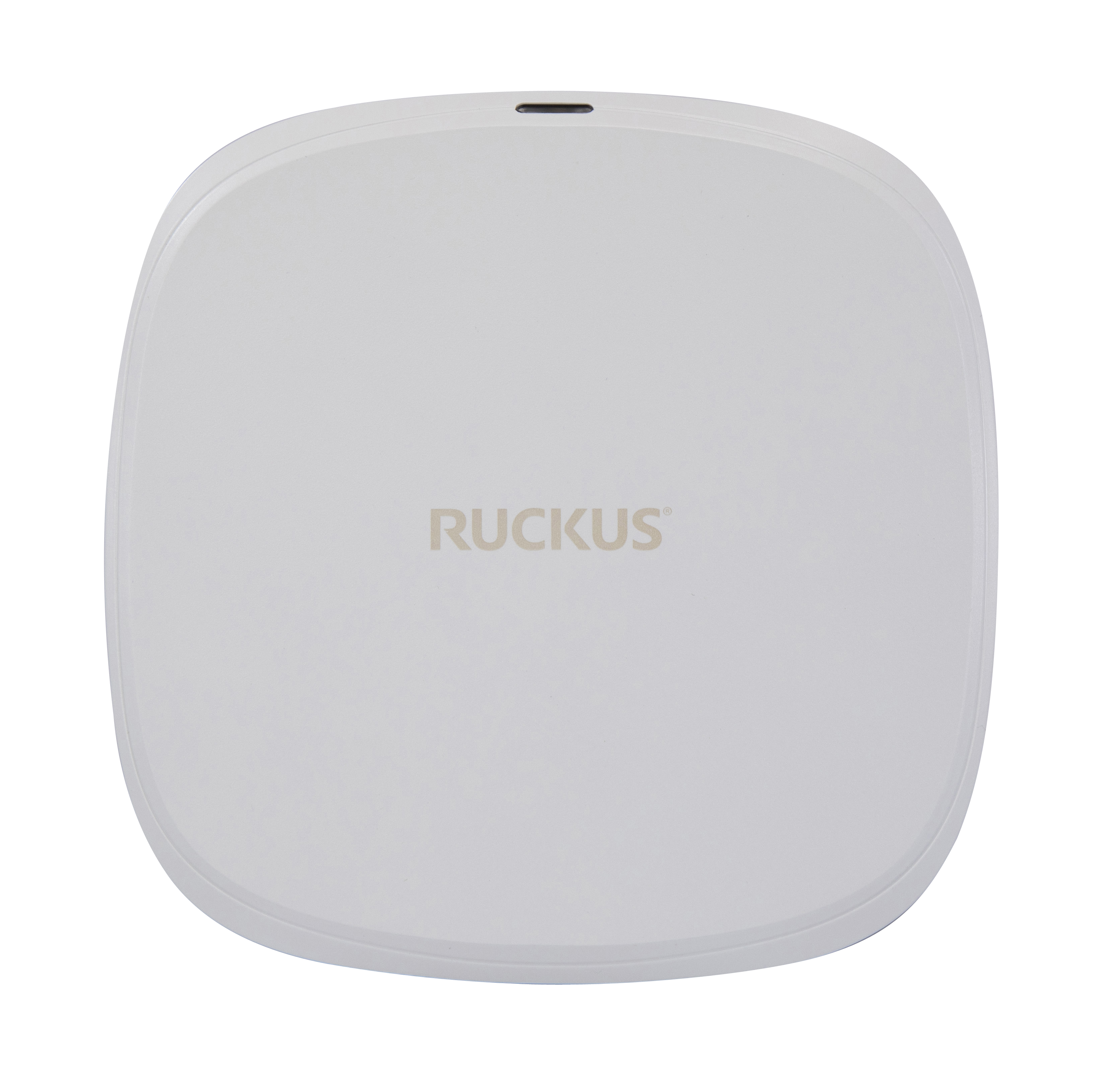

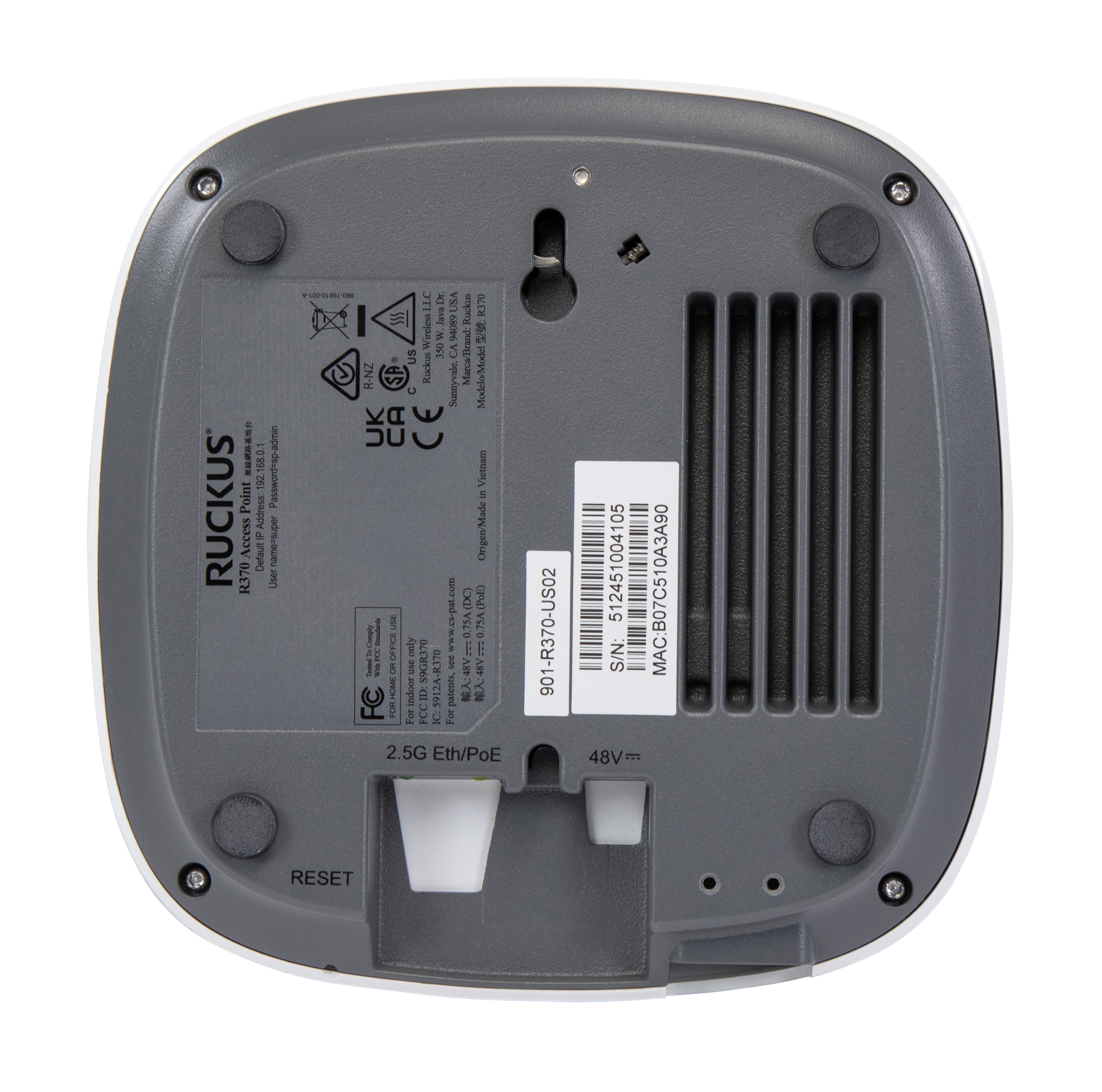

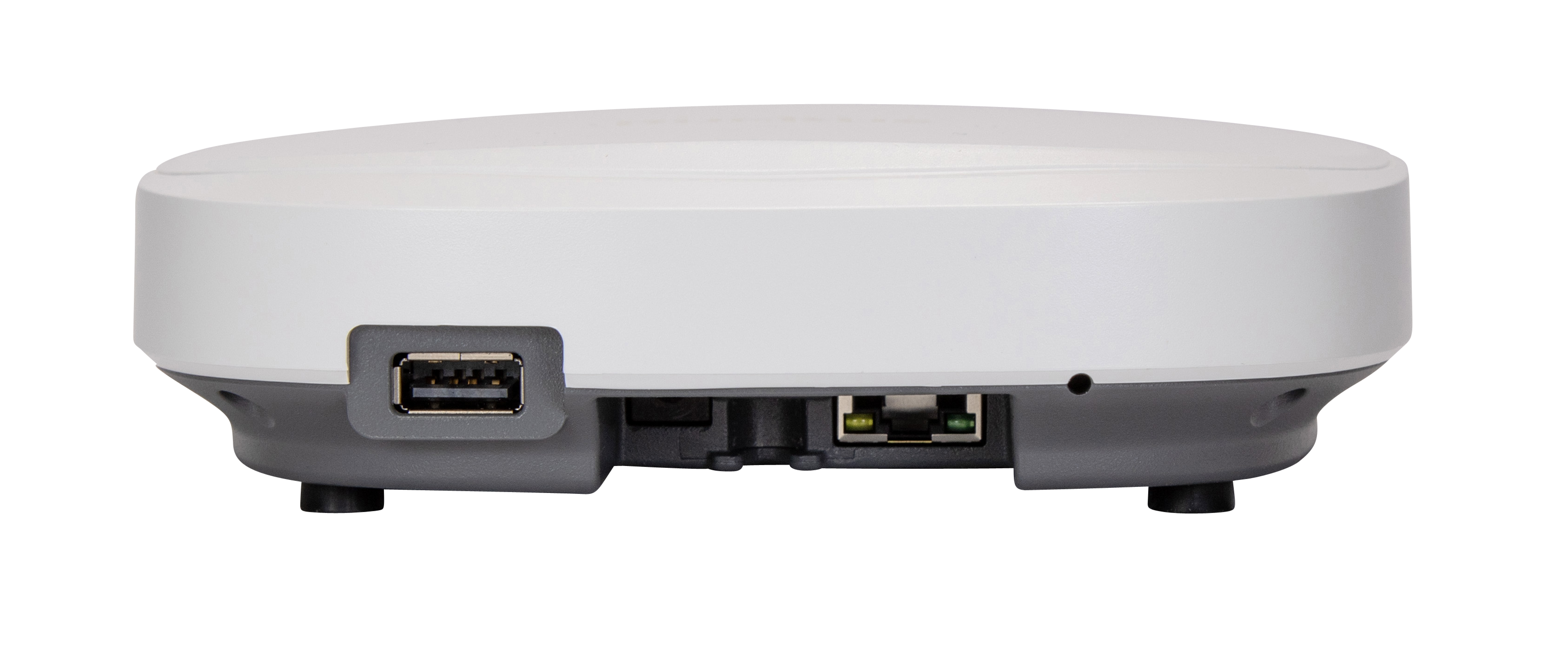

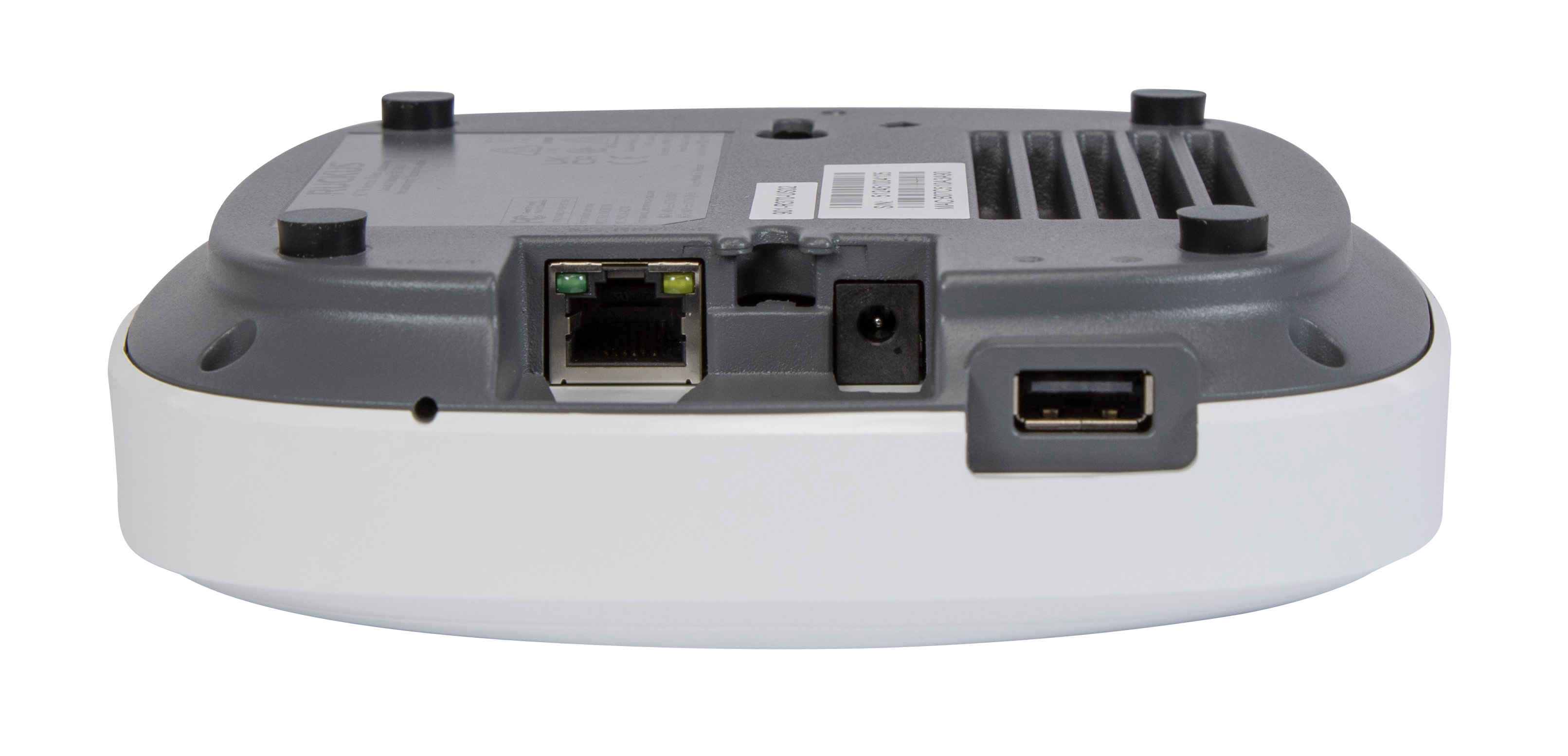

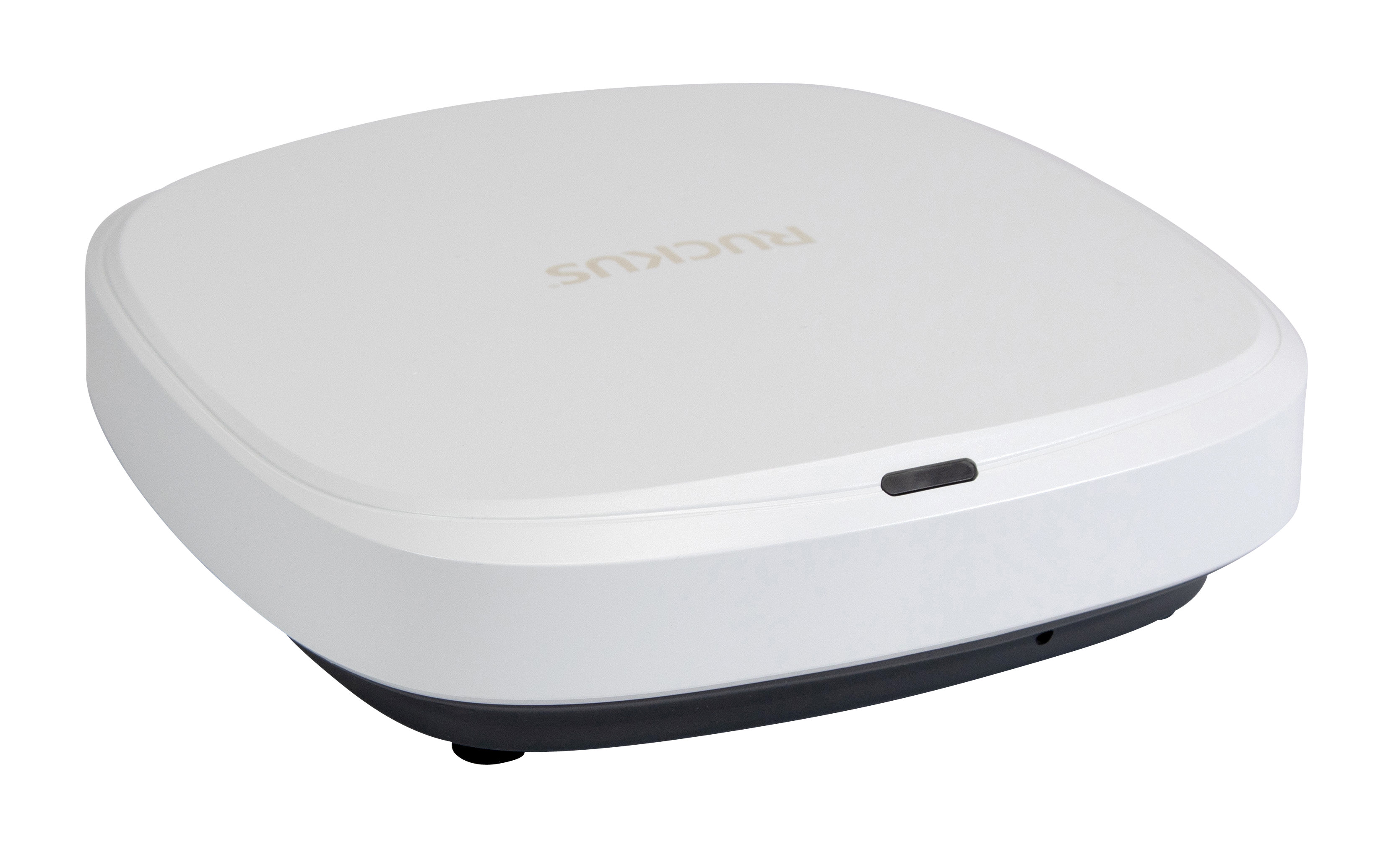

RUCKUS R370 Wi-Fi 7 Dual-Band Entry-Level Wireless Access Point 2x2:2 Streams 802.11be Up to 256 Clients PoE Support Wireless Access Point (901-R370-XX02) - Image 2
RUCKUS R370 Wi-Fi 7 Dual-Band Entry-Level Wireless Access Point 2x2:2 Streams 802.11be Up to 256 Clients PoE Support Wireless Access Point (901-R370-XX02) - Image 3
RUCKUS R370 Wi-Fi 7 Dual-Band Entry-Level Wireless Access Point 2x2:2 Streams 802.11be Up to 256 Clients PoE Support Wireless Access Point (901-R370-XX02) - Image 4
RUCKUS R370 Wi-Fi 7 Dual-Band Entry-Level Wireless Access Point 2x2:2 Streams 802.11be Up to 256 Clients PoE Support Wireless Access Point (901-R370-XX02) - Image 5
RUCKUS R370 Wi-Fi 7 Dual-Band Entry-Level Wireless Access Point 2x2:2 Streams 802.11be Up to 256 Clients PoE Support Wireless Access Point (901-R370-XX02) - Image 6
Share

RUCKUS R370 Wi-Fi 7 Dual-Band Entry-Level Wireless Access Point 2×2:2 Streams 802.11be Up to 256 Clients PoE Support Wireless Access Point (901-R370-XX02)

in Access Points
Sku: 901-R370-XX02

Available in stock

Description

RUCKUS R370 Wi-Fi 7 Dual-Band Entry-Level Wireless Access Point (901-R370-XX02)

The RUCKUS R370 is an entry-level Wi-Fi 7 (802.11be) access point designed for small to medium environments that still need strong, stable, and future-ready wireless performance. In addition, it uses RUCKUS intelligent RF technology to improve coverage and reduce interference. So, it delivers reliable connectivity even in busy network areas.

It is ideal for small offices, retail spaces, remote branches, and light enterprise deployments where performance and cost need to stay balanced.

Specifications Table

Feature Specification
Model 901-R370-XX02
Wi-Fi Standard IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Bands Dual-band (2.4 GHz + 5 GHz)
Spatial Streams 2×2:2 per band
Max PHY Rate Up to 3.57 Gbps combined
2.4 GHz Speed Up to 688 Mbps
5 GHz Speed Up to 2.88 Gbps
Ethernet Port 1 × 2.5GbE
Clients Supported Up to 256 users
Antenna Technology BeamFlex+ adaptive antennas
Channel Optimization ChannelFly dynamic selection
Mesh Support SmartMesh self-forming network
Security WPA2, WPA3, 802.11i, WIPS/WIDS
VLAN Support 802.1Q VLAN tagging
Management Unleashed, Cloud, SmartZone, Standalone
IoT Support IoT-ready (USB expansion support)
Power 802.3af PoE / PoE+ support
Power Consumption ~12–20W (varies by mode)
Mounting Wall, ceiling, or desktop
Operating Temp 0°C to 40°C

Wi-Fi 7 Performance

First, the R370 supports Wi-Fi 7 (802.11be). This means higher speed, lower delay, and better efficiency compared to Wi-Fi 6.

It also supports:

  • Multi-link operation (improved stability)
  • Higher throughput up to 3.57 Gbps
  • Better performance in dense environments

So, users get faster and smoother connectivity even with multiple devices online.

BeamFlex+ Smart Antennas

Next, the R370 uses BeamFlex+ adaptive antenna technology. It selects the best antenna pattern in real time to improve signal quality.

Because of this, it:

  • Improves Wi-Fi coverage
  • Reduces interference
  • Strengthens weak signals
  • Improves device-to-device performance

ChannelFly Optimization

In addition, ChannelFly continuously checks Wi-Fi conditions and selects the least congested channel.

As a result:

  • Network stays stable
  • Speed improves during peak usage
  • Interference is reduced

SmartMesh Networking

Also, the R370 supports SmartMesh, which allows wireless expansion without full cabling.

So, it:

  • Reduces installation cost
  • Simplifies deployment
  • Automatically heals network paths

Security and Control

The R370 includes strong enterprise security features:

  • WPA2 and WPA3 support
  • 802.1X authentication
  • VLAN segmentation (802.1Q)
  • WIPS/WIDS intrusion detection
  • Access control policies

Therefore, it keeps networks secure and controlled.

Key Benefits

  • Wi-Fi 7 performance at entry-level cost
  • Faster speeds up to 3.57 Gbps
  • 2.5GbE port for high-speed wired backhaul
  • BeamFlex+ improves coverage and stability
  • SmartMesh for flexible deployment
  • Supports up to 256 connected clients
  • Easy management via cloud or controller

Best Use Cases

  • Small and medium offices
  • Retail shops and cafés
  • Branch offices
  • Light enterprise networks
  • Hotspot and guest Wi-Fi setups

Summary

The RUCKUS R370 Wi-Fi 7 Access Point is a future-ready entry-level solution. It combines Wi-Fi 7 speed, smart RF optimization, and flexible deployment tools in a compact design.

So, it is a strong choice for environments that want next-generation performance without high infrastructure cost.
