RUCKUS H670 Wi-Fi 7 Tri-Band Wall Multigigabit Switch Access Point (901-H670-XX00)
The RUCKUS H670 is a high-end Wi-Fi 7 (802.11be) wall-mounted access point built for modern high-demand spaces like hotel rooms, apartments, offices, and smart buildings. It combines ultra-fast wireless, multigigabit wired ports, BeamFlex+ smart antennas, and built-in IoT support in one compact unit.
Because of this design, it works as both a Wi-Fi access point and a wired network switch, reducing the need for extra hardware in each room.
Key Highlights
The H670 is designed to deliver very high performance in dense environments. In addition, it supports both wireless and wired devices at the same time.
Main advantages:
- Wi-Fi 7 tri-band performance (2.4 GHz, 5 GHz, 6 GHz)
- Very high total speed (up to 9.34 Gbps)
- Built-in multigigabit switch for room devices
- Strong RF optimization with BeamFlex+
- Built-in IoT radios for smart devices

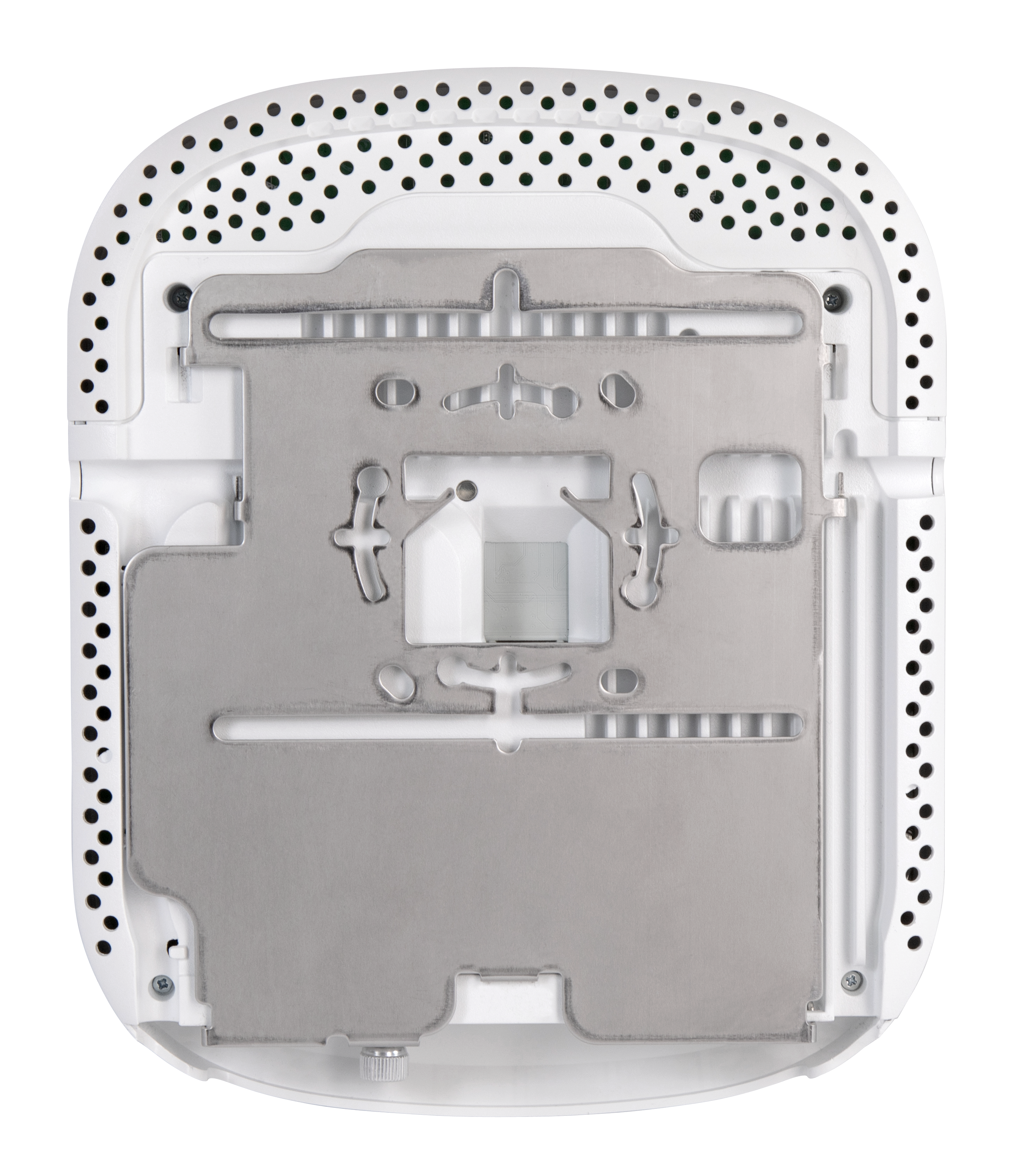

- Easy wall installation for in-room use
Specifications Table
| Feature | Specification |
|---|---|
| Model | 901-H670-XX00 |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Bands | Tri-band (2.4 GHz, 5 GHz, 6 GHz) |
| Spatial Streams | 2×2:2 per band (6 streams total) |
| Max PHY Rate | Up to 9.34 Gbps combined |
| Antenna Technology | BeamFlex+ adaptive antennas |
| Antenna Patterns | 4000+ patterns per band |
| Ethernet Ports | 1 × 5GbE + 4 × 2.5GbE |
| PoE Support | PoE In + PoE Out (2 ports) |
| IoT Support | Dual IoT radios (BLE / Zigbee support) |
| USB Port | Yes (IoT expansion) |
| Client Capacity | Up to 768 clients |
| Channel Tech | ChannelFly automatic optimization |
| Mesh | SmartMesh support |
| Security | WPA3, WPA2, 802.1X, WIPS/WIDS |
| VLAN | 802.1Q VLAN support |
| Management | Unleashed, SmartZone, Cloud |
| Operating Temp | 0°C to 40°C |
Wi-Fi 7 Performance (Next Generation Speed)
First, the H670 uses Wi-Fi 7 technology, which brings higher speed, lower delay, and better stability.
It supports:
- Multi-Link Operation (MLO)
- 320 MHz channel width
- 4K QAM modulation
As a result, it delivers very fast and stable connections even when many devices are connected at the same time.

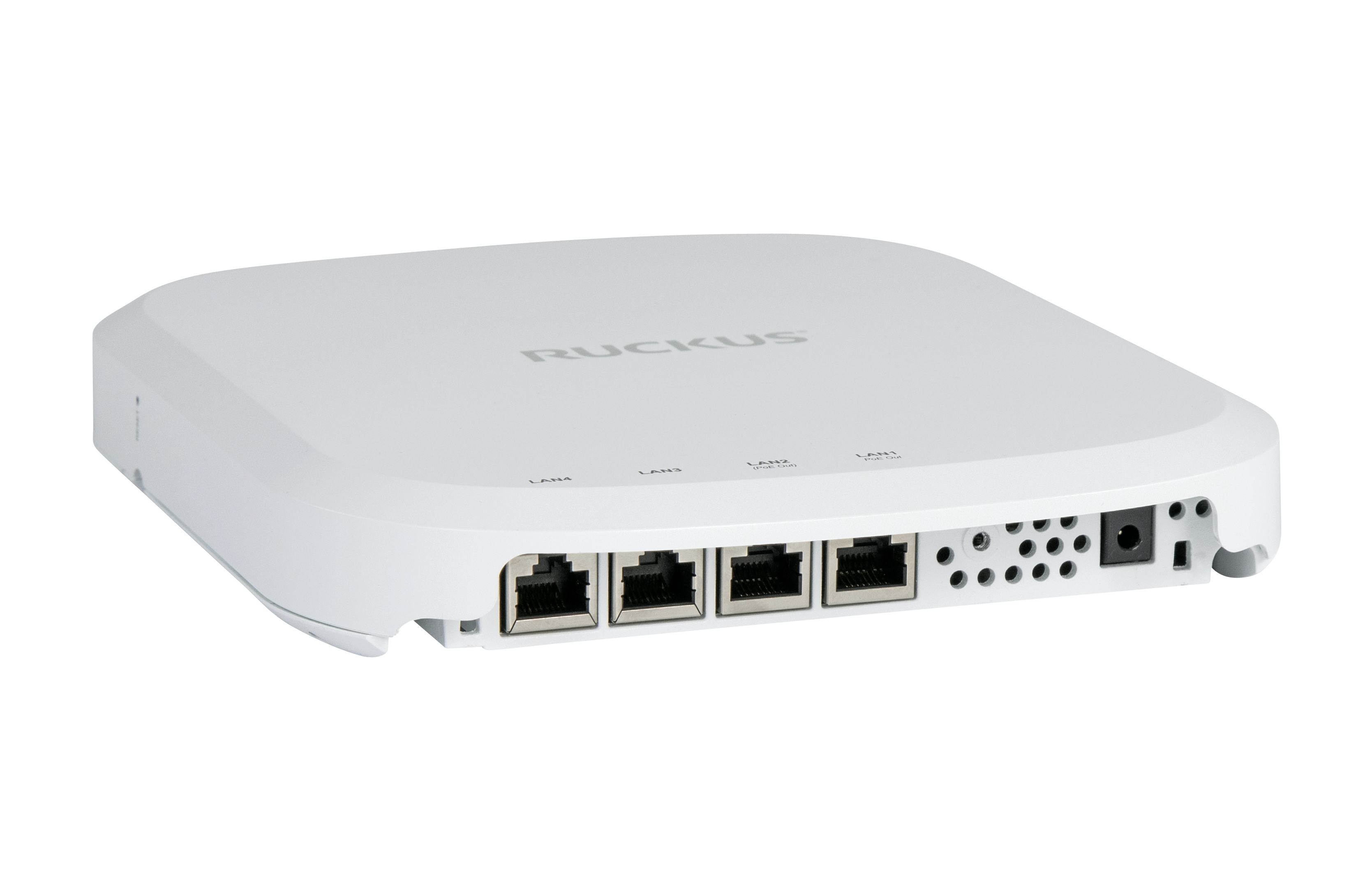

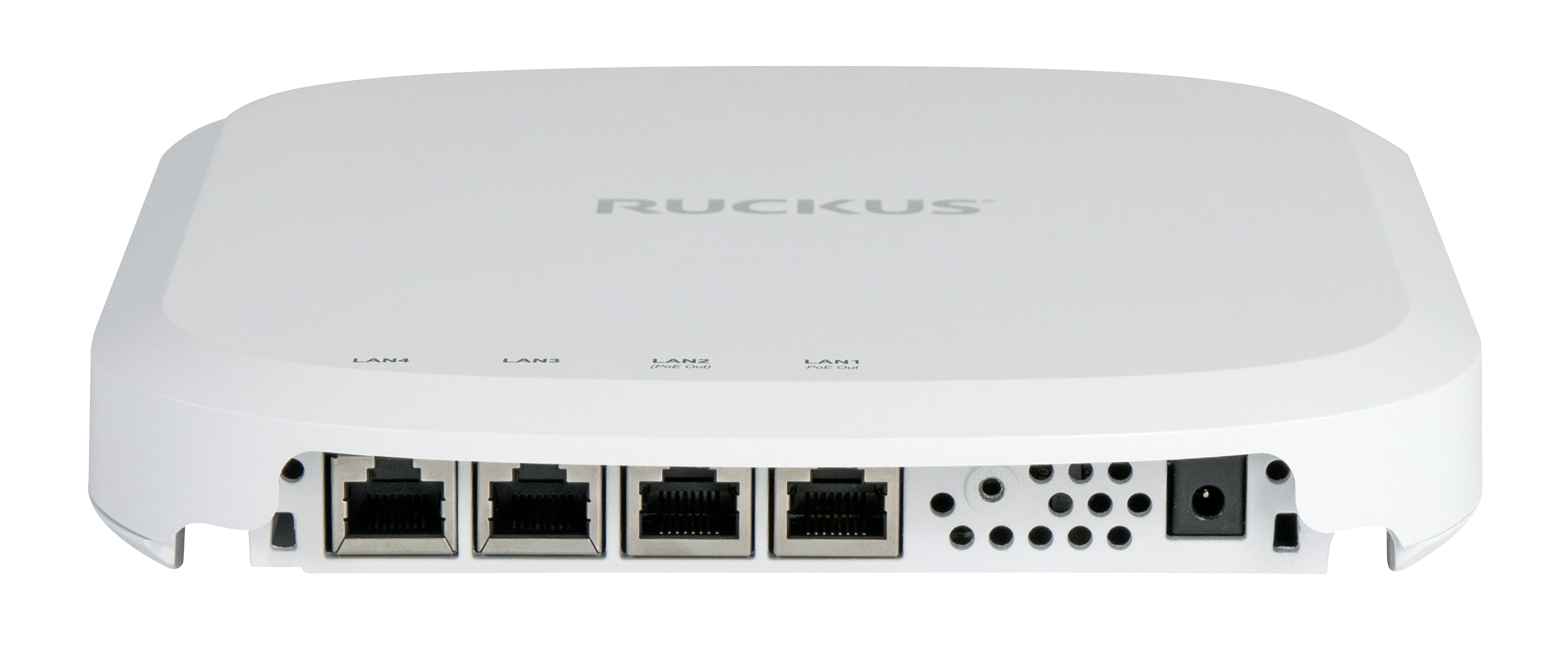

Strong Wired + Wireless Convergence

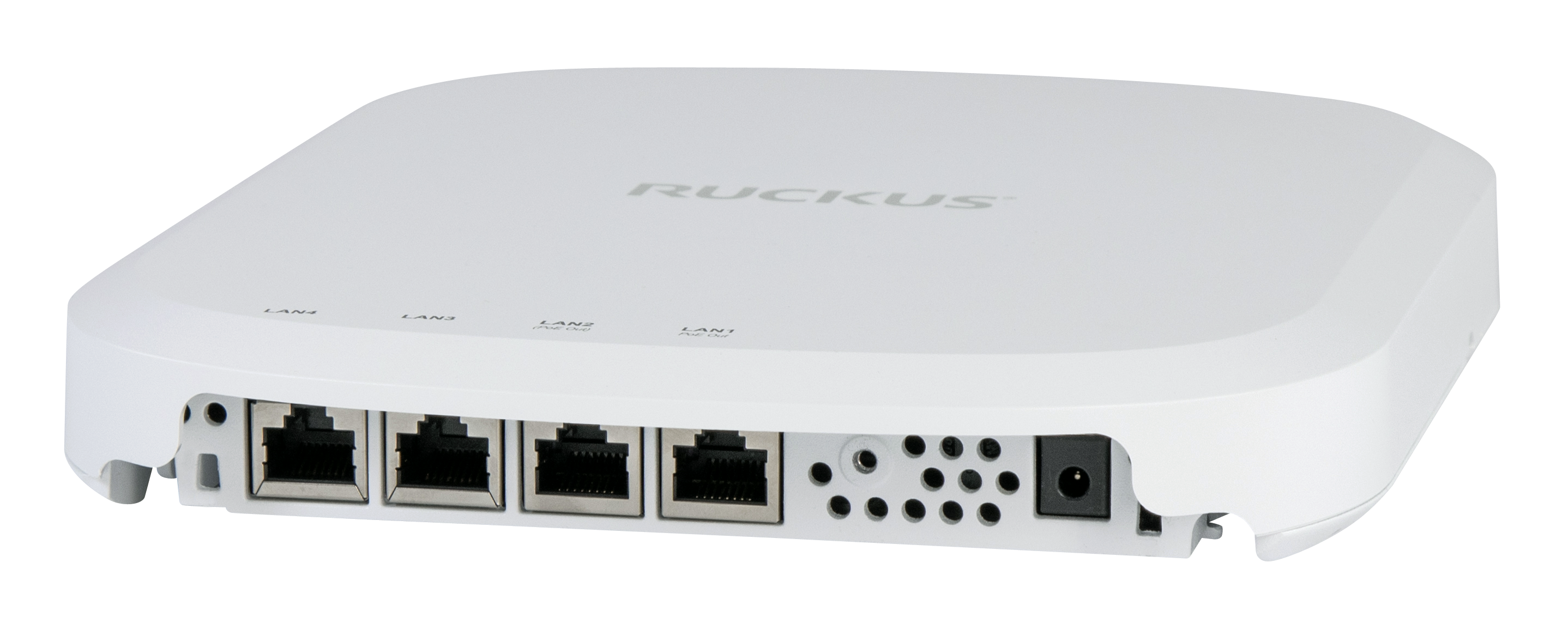

Next, the H670 is not only wireless. It also works as a built-in multigigabit switch.
It includes:
- 1 × 5GbE port for uplink
- 4 × 2.5GbE ports for local devices
- PoE support on select ports
So, you can directly connect devices like:
- IP phones
- Smart TVs
- Security cameras
- IoT devices
This reduces extra switches and keeps installation simple.
BeamFlex+ Smart Antennas
In addition, the H670 uses BeamFlex+ adaptive antenna technology.
This helps by:
- Adjusting signal direction automatically
- Reducing interference
- Improving coverage per device
- Supporting high-density environments
Because of this, users get more stable Wi-Fi even in crowded setups.
Built for Smart IoT Environments
The device also includes dual IoT radios and USB expansion support.
So, it can connect:
- Smart locks
- Sensors
- Building automation devices
This helps combine Wi-Fi and IoT into one network instead of separate systems.
Smart Networking Features
The H670 includes advanced RUCKUS technologies like:
- ChannelFly (auto channel optimization)
- SmartMesh (wireless mesh networking)
- Load balancing
- Airtime fairness
Therefore, performance stays stable even when traffic increases.
Best Use Cases
The H670 is ideal for:
- Hotels and guest rooms
- Apartments and MDUs
- Enterprise offices
- Smart buildings
- Education and campus rooms
Summary
The RUCKUS H670 Wi-Fi 7 Wall Access Point is a powerful all-in-one networking solution. It combines very high-speed Wi-Fi 7, multigigabit switching, IoT support, and smart RF optimization in one device.
So, it is best suited for environments that need fast, stable, and future-ready connectivity with simple deployment.
