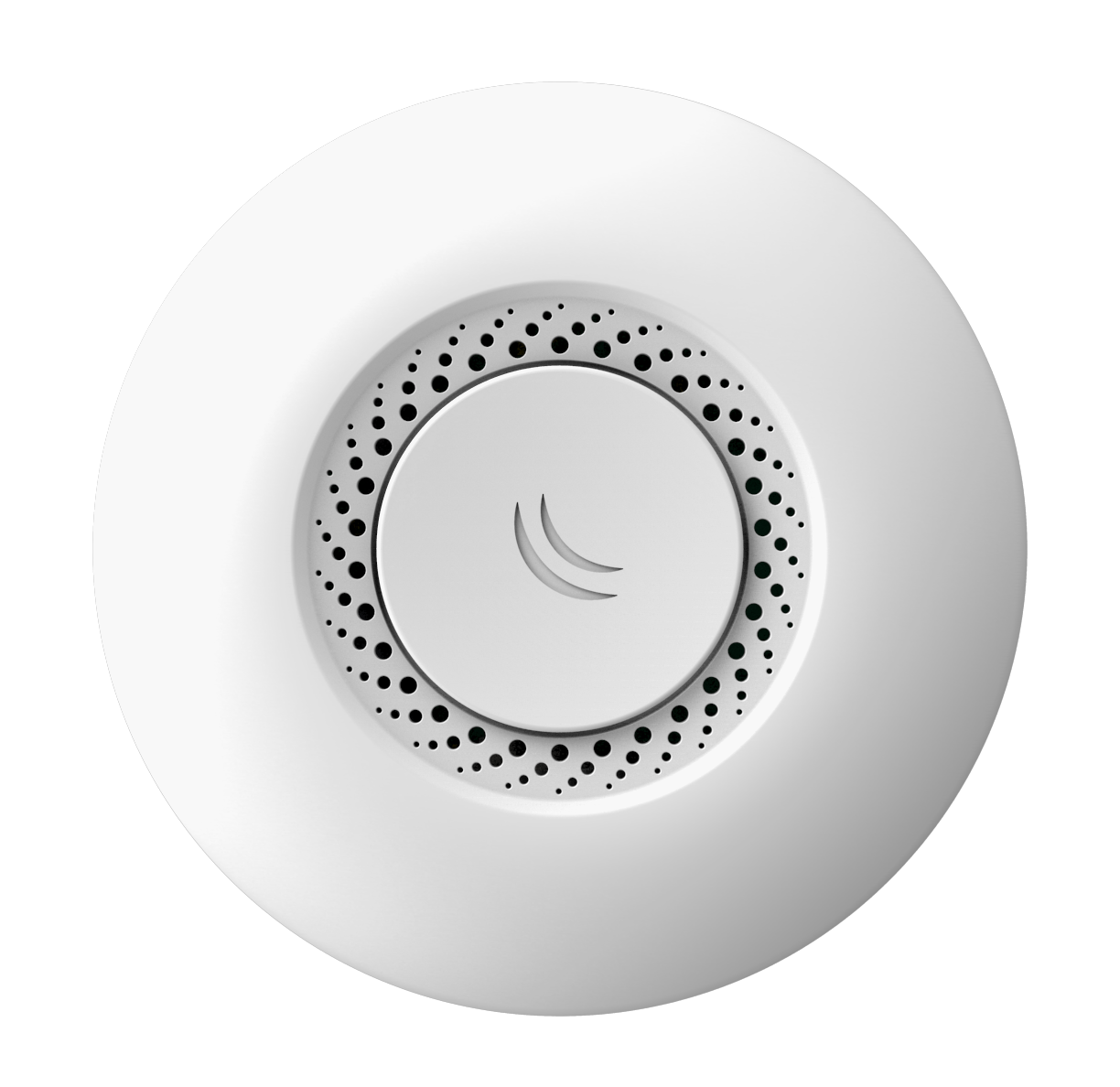

Mikrotik RouterBOARD cAP-2nD Ceiling Access Point

KSh8,800 VAT Exc.

In stock

Seamless Wi-Fi Expansion with Inconspicuous Design: MikroTik cAP-2nD

  • Dual-Chain 2.4 GHz Performance: Extend your existing Wi-Fi network with the MikroTik cAP-2nD. It supports the 2.4 GHz band with dual-chain technology, offering reliable wireless connectivity for multiple devices and users.
  • Unobtrusive Ceiling-Mount Design: Maintain a clean aesthetic. The cAP-2nD's low-profile, circular design blends seamlessly into ceilings, ideal for offices, hotels, airports, and other environments where maintaining a professional look is important.

Cost-Effective Network Expansion and Management:

  • Power over Ethernet (PoE) Support: The cAP-2nD simplifies installation by supporting Power over Ethernet (PoE). This eliminates the need for a separate power outlet near the access point, reducing cabling complexity and installation costs.
  • RouterOS Management: Leverage the familiar RouterOS operating system for centralized configuration, monitoring, and control over the cAP-2nD and your entire network (You can optionally replace "RouterOS" with the actual operating system name if different).

Ideal for Expanding Wi-Fi Coverage:

  • Offices and Workspaces: Provide reliable wireless connectivity for employees and guests throughout the office with the cAP-2nD's discreet ceiling design.
  • Hospitality Venues: Enhance the guest experience by offering seamless Wi-Fi access in hotels, airports, and conference centers.
  • Public Spaces: Extend Wi-Fi coverage in libraries, community centers, and other public areas with the cAP-2nD's unobtrusive design.

Exploring Discreet Ceiling-Mount Access Points:

  • Connect with IT professionals or network equipment distributors: They can assess your specific network needs and recommend compatible access points for optimal coverage and configuration.
  • Prioritize Inconspicuous Design, PoE Support, and Manageability: Look for features like a low-profile ceiling mount design, PoE for simplified installation, and RouterOS compatibility for centralized network management.

Mikrotik RouterBOARD cAP-2nD Ceiling Access Point

Specifications

Details
Product code RBcAP2nD
Architecture MIPSBE
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 185mm diameter, 31mm height
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $49.95

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model QCA9533
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports 1

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 4 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 11-57 V

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP20

Other

Details
Mode button Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
