MikroTik RBcAPGi-5acD2nD-XL Ceiling-cAP Access Point
- Brand: MikroTik
KSh17,000 VAT Exc.
In stock

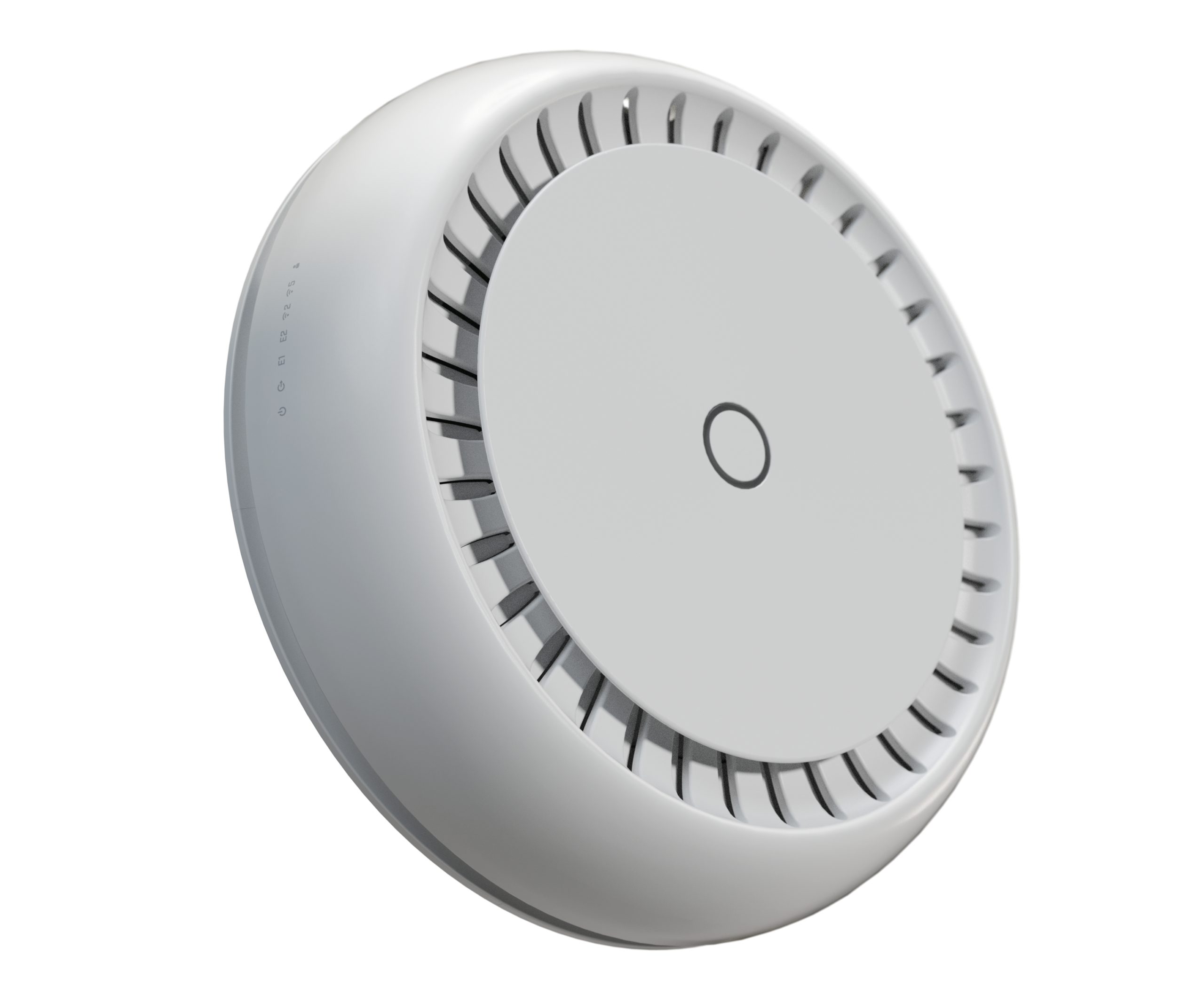

Need a nice-looking access point that won’t get in your way? Or perhaps you’re managing the network in a crowded place and don’t want everyone to have physical access to the device? Either way – ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.
The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!
The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don’t have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.
Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second por
SKU:
RBcAPGi-5acD2nD-XL
Category: Accesspoints
MikroTik RBcAPGi-5acD2nD-XL Ceiling-cAP Access Point
DETAILS | |
---|---|
Product code | RBcAPGi-5acD2nD-XL |
Architecture | ARM 32bit |
CPU | IPQ-4018 |
CPU core count | 4 |
CPU nominal frequency | 716 MHz |
Dimensions | 191 x 42 mm |
RouterOS license | 4 |
Operating System | RouterOS |
Size of RAM | 128 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100’000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
IPsec hardware acceleration | Yes |
WIRELESS CAPABILITIES: | |
---|---|
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 6 |
Wireless 2.4 GHz chip model | IPQ-4018 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Wireless 5 GHz Max data rate | 867 Mbit/s |
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n/ac |
Antenna gain dBi for 5 GHz | 5.5 |
Wireless 5 GHz chip model | IPQ-4018 |
Wireless 5 GHz generation | Wi-Fi 5 |
AC speed | AC1200 |
ETHERNET: | |
---|---|
10/100/1000 Ethernet ports | 2 |
Number of 1G Ethernet ports with PoE-out | 1 |
POWERING: | |
---|---|
Number of DC inputs | 1 (PoE-IN) |
Max power consumption | 24 W |
Max power consumption without attachments | 11 W |
Cooling type | Passive |
PoE in | 802.3af/at |
PoE in input Voltage | 18-57 V |
POE-OUT: | |
---|---|
PoE-out ports | Ether2 |
PoE out | Passive PoE up to 57V |
Max out per port output (input 18-30 V) | 500 mA |
Max out per port output (input 30-57 V) | 330 mA |
Max total out (A) | 500 mA |
CERTIFICATION & APPROVALS: | |
---|---|
Certification | CE, FCC, IC, EAC, ROHS |
OTHER: | |
---|---|
Mode button | Yes |
Wireless specifications:
2.4 GHZ | TRANSMIT (DBM) | RECEIVE SENSITIVITY |
---|---|---|
1MBit/s | 26 | -100 |
11MBit/s | 26 | -94 |
6MBit/s | 26 | -96 |
54MBit/s | 23 | -78 |
MCS0 | 26 | -96 |
MCS7 | 22 | -73 |
5 GHZ | TRANSMIT (DBM) | RECEIVE SENSITIVITY |
---|---|---|
6MBit/s | 26 | -96 |
54MBit/s | 21 | -80 |
MCS0 | 26 | -96 |
MCS7 | 20 | -75 |
MCS9 | 18 | -70 |
