Description

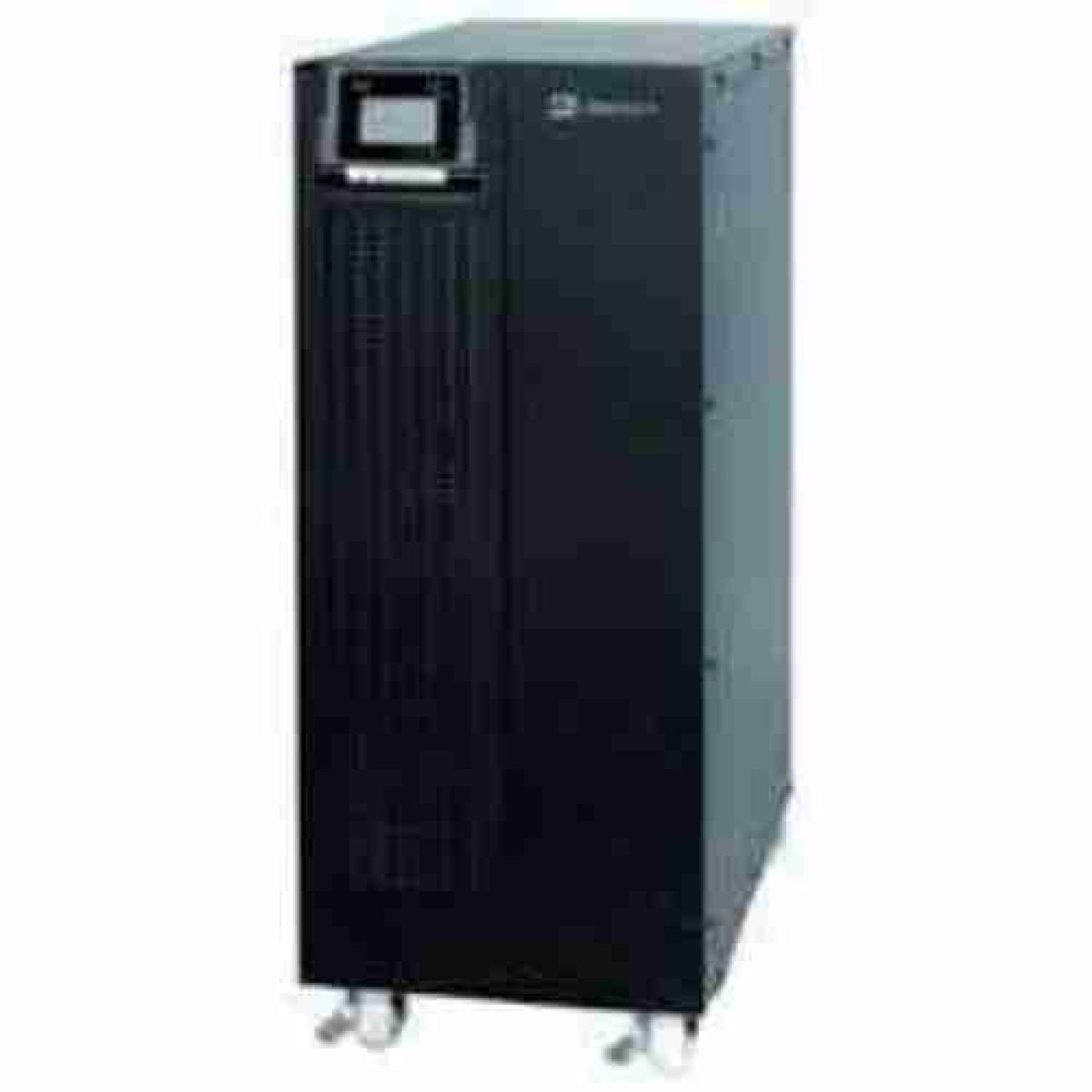

Mercury MDC3320s Online UPS: 20KVA/20KW True 1.0 Power Factor for Ultimate Power Protection

 Mercury MDC3320s Online UPS | 20KVA/20KW 1.0 Power Factor | 3-Phase UPS with Pure Sine Wave

Mercury MDC3320s 20KVA/20KW Online UPS. Featuring a true 1.0 power factor for 100% real power output, 3-phase double-conversion technology, and advanced monitoring, it ensures uninterrupted, clean power for data centers, industrial operations, and large enterprises.


Mercury MDC3320s Online Ups Description

Experience unparalleled power protection and efficiency with the Mercury MDC3320s Online UPS. This formidable 20KVA/20KW Uninterruptible Power Supply is engineered to deliver robust, clean, and continuous power to your most critical equipment, making it an indispensable asset for modern data centers, industrial facilities, large enterprises, and sensitive IT infrastructure.

The defining characteristic of the MDC3320s is its true 1.0 output power factor (PF). This means the UPS delivers 100% of its rated apparent power (KVA) as usable real power (KW). Unlike traditional UPS systems with a power factor of 0.8 or 0.9, the MDC3320s eliminates wasted reactive power, ensuring maximum energy efficiency and allowing you to power more equipment with the same VA rating. This translates directly into significant cost savings on energy bills and optimizes your power infrastructure.

Built with advanced online double-conversion technology, the Mercury MDC3320s provides superior power conditioning by completely isolating your connected devices from incoming utility power fluctuations. It constantly regenerates a clean, pure sine wave output, protecting sensitive electronics from sags, surges, spikes, noise, and frequency variations, with zero transfer time to battery during outages.

Key Features of the Mercury MDC3320s Online UPS:

  • True 1.0 Output Power Factor (20KVA/20KW): Maximize your power utilization. Every KVA is a KW, providing 100% real power to your critical loads and preventing over-sizing of UPS systems due to reactive power.
  • Online Double-Conversion Topology: Offers the highest level of power protection. Continuous, clean, pure sine wave output completely isolates connected equipment from power disturbances.
  • Three-Phase Input and Output (3/3 Phase): Designed for seamless integration into enterprise and industrial power systems, ensuring balanced and stable power distribution.
  • High Capacity (20KVA/20KW): Provides substantial power backup for large server rooms, data centers, industrial automation, medical equipment, and telecommunications infrastructure.
  • Sophisticated Battery Management: Equipped with an intelligent battery charging system (supports ±120VDC battery banks, typically 2 x 20 x 9AH/12V batteries), ensuring optimal battery health, extended lifespan, and reliable runtime during outages.
  • Zero Transfer Time: Instantaneous switch to battery power during a grid failure, guaranteeing uninterrupted operation for sensitive equipment.
  • Comprehensive Communication Interfaces: Features USB, RS232, and RS485 ports for local and remote monitoring. Optional SNMP card allows for advanced network management and integration into building management systems (BMS).
  • User-Friendly LCD Display: Provides real-time status updates, load capacity, battery health, and operational modes for easy monitoring and management.
  • Advanced Protection Features: Includes protection against surges, lightning strikes, overloads, short circuits, and over-temperature conditions, safeguarding both the UPS and your connected equipment.
  • Scalable and Adaptable: Can be paralleled for redundancy (N+1) or increased capacity, allowing the UPS to grow with your business needs.
  • Energy Efficient: High efficiency design reduces power consumption and operating costs.
  • Durable and Reliable Build: Constructed for demanding environments, ensuring long-term performance and peace of mind.

The Mercury MDC3320s is more than just a power backup; it’s a critical investment in the stability and longevity of your essential operations.


Technical Specifications (Mercury MDC3320s Online UPS)

  • Model: MDC3320s
  • Capacity: 20KVA / 20KW
  • Output Power Factor: 1.0 (Unity Power Factor)
  • UPS Type: True Online Double-Conversion
  • Phase: 3/3 Phase (Three-phase input, Three-phase output)
  • Input Voltage: 380V / 400V / 415V AC (3-Phase)
  • Output Voltage: 380V / 400V / 415V AC (3-Phase) ± 1%
  • Output Waveform: Pure Sine Wave
  • Battery Configuration: Typically ±120VDC (e.g., 2 x 20 x 9AH/12V batteries – external batteries, purchased separately for custom runtime)
  • Transfer Time: 0 ms (Zero)
  • Communication Interfaces: USB, RS232, RS485 (Optional SNMP card available)
  • Display: LCD Panel
  • Protection: Overload, Short Circuit, Over-temperature, Battery Low, Surge Protection
  • Operating Temperature: 0°C to 40°C
  • Humidity: 0-95% (non-condensing)
  • Noise Level: ≤ 55dB (at 1 meter)
  • Dimensions (WxDxH): (Refer to specific vendor for exact dimensions, typically around 320 x 620 x 950mm)
  • Weight: (Refer to specific vendor for exact weight, typically around 60-95 kg without batteries)

Frequently Asked Questions (FAQs)

Q1: What does “1.0 power factor” mean for the Mercury MDC3320s? A1: A 1.0 power factor (PF) means that the UPS can deliver its full rated KVA (apparent power) as KW (real power). For the Mercury MDC3320s, 20KVA equals 20KW. This is highly efficient as it means all the power drawn is usable for your equipment, preventing wasted energy and allowing you to utilize the UPS’s full capacity.

Q2: Why is “online double-conversion” technology important? A2: Online double-conversion is the most protective UPS topology. It constantly converts incoming AC power to DC, charges the batteries, and then converts it back to clean AC power. This isolates your critical equipment from all utility power disturbances, providing a consistently regulated, pure sine wave output with zero transfer time during outages.

Q3: Is this UPS suitable for a data center? A3: Absolutely. The Mercury MDC3320s with its 20KVA/20KW capacity, true 1.0 power factor, and 3-phase online double-conversion technology is specifically designed for high-demand environments like data centers, server rooms, and critical IT infrastructure where clean, uninterrupted power is paramount.

Q4: Does the Mercury MDC3320s come with internal batteries? A4: The Mercury MDC3320s typically relies on external battery banks (e.g., 2 x 20 x 9AH/12V batteries) which are usually sold separately. This allows for flexible runtime configuration based on your specific backup power needs.

Q5: Can I monitor this UPS remotely? A5: Yes, the Mercury MDC3320s includes USB, RS232, and RS485 communication ports for local and remote monitoring. For advanced network integration and management, an optional SNMP card is available, allowing you to monitor and control the UPS over your network.

Q6: What kind of equipment can this 20KVA/20KW UPS power? A6: This high-capacity UPS can power a wide range of critical equipment, including multiple servers, networking switches, storage arrays, telecommunications equipment, medical imaging devices, industrial control systems, and entire sections of commercial buildings or data centers
