Description

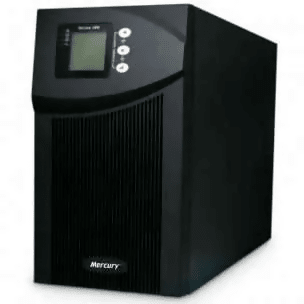

Mercury HP930C-S Online UPS 3KVA/2.4KW: Uninterrupted, Clean Power for Critical Systems

 Mercury HP930C-S Online UPS 3KVA/2.4KW | Double Conversion Power Protection

Secure your vital electronics with the Mercury HP930C-S 3KVA/2.4KW Online UPS. Featuring true double-conversion technology, a 0.8 power factor, and intelligent battery management, it delivers clean, stable, and uninterrupted power for servers, networks, and sensitive equipment.


Mercury HP930C-S 0.8PF, Online UPS Description

In today’s interconnected world, reliable power is non-negotiable for businesses and demanding home users. The Mercury HP930C-S 0.8PF Online UPS 3KVA/2.4KW stands as a robust guardian against power outages, surges, fluctuations, and noise, ensuring your critical equipment remains operational and protected.

This high-performance Uninterruptible Power Supply (UPS) utilizes true online double-conversion technology, the gold standard for power protection. Unlike line-interactive or standby UPS systems, the Mercury HP930C-S continuously processes incoming AC power, converting it to DC and then back to a perfectly regulated AC output. This means your connected devices are constantly powered by a clean, stable sine wave, isolated from any irregularities on the utility line – providing zero transfer time to battery power during outages.

With a 3KVA (3000VA) capacity and a 2.4KW (2400W) real power output, indicated by its 0.8 Power Factor (PF), this UPS is ideally suited for protecting a wide range of sensitive loads. From small to medium-sized server rooms, networking equipment, telecommunications systems, medical devices, to high-end workstations, the Mercury HP930C-S ensures continuous operation and safeguards against costly data loss and hardware damage.

Key Features and Benefits of the Mercury HP930C-S:

  • True Online Double-Conversion Technology: Provides the highest level of power protection by continuously regulating and regenerating the output power. This eliminates all forms of power disturbances, including blackouts, brownouts, sags, surges, spikes, and frequency variations, ensuring a perfect sine wave output.
  • 3KVA / 2.4KW Capacity (0.8 Power Factor): Delivers ample real power to support critical loads, making it highly efficient for a wide array of applications. The 0.8PF indicates that 80% of the apparent power is available as usable real power for your devices.
  • Wide Input Voltage Range: Designed to operate stably across a broad input voltage range, making it highly adaptable to areas with fluctuating power grids and reducing battery usage during minor variations.
  • Advanced Battery Management (ABM): Optimizes battery performance, prolongs battery lifespan, and provides intelligent charging. Features like automatic battery self-test and automatic battery charge in UPS off mode enhance reliability.
  • Cold Start Function: Allows the UPS to be powered on directly from its batteries, even without utility power, providing immediate backup when needed.
  • Lightning and Surge Protection: Built-in safeguards protect connected equipment from damaging power surges and lightning strikes.
  • Short Circuit and Overload Protection: Ensures the safety of both the UPS and your connected devices by automatically shutting down in fault conditions.
  • LCD Display: Provides real-time status updates, including input/output voltage, battery level, load capacity, and operational mode, for easy monitoring and management.
  • Intelligent Communication Ports (RS232/USB): Enables seamless communication with computers and servers for unattended shutdown, comprehensive monitoring, and remote management via included software. An optional SNMP card slot offers advanced network management capabilities.
  • Fan Speed Auto Control: Adjusts fan speed based on load, reducing noise and power consumption when the UPS is lightly loaded.
  • EMI/RFI Noise Filter: Further enhances power quality by filtering out electromagnetic and radio frequency interference that can disrupt sensitive electronics.

Invest in the Mercury HP930C-S Online UPS to gain peace of mind, knowing your valuable equipment and critical operations are protected by a reliable and high-quality power solution.


Technical Specifications (Mercury HP930C-S)

  • Model: HP930C-S
  • Capacity: 3KVA / 2.4KW
  • Power Factor: 0.8
  • Technology: True Online Double Conversion, High Frequency Transformer-less Design
  • Phase: Single Phase Input / Single Phase Output (1/1 phase)
  • Input Voltage Range: Wide range, typically 115VAC(±5%) ~ 295VAC(±5%) at ≤70% load (Exact range may vary slightly per batch, consult manual)
  • Output Voltage: 220V/230V/240V AC (configurable)
  • Output Waveform: Pure Sine Wave
  • Batteries: Typically 8 x 12V/7AH internal batteries (Number and capacity may vary, verify with supplier)
  • Recharge Time: Typically 4-6 hours to 90% capacity
  • Transfer Time: 0ms (Online mode)
  • Protections: Overload, Short Circuit, Over-temperature, Battery Low, Surge & Lightning
  • Display: LCD Panel
  • Communication: RS232, USB. Optional SNMP Card Slot.
  • Features: Cold Start, Advanced Battery Management, Auto Battery Charge, Fan Speed Auto Control, EPO function (optional)
  • Ideal Applications: Small Networks, Servers, IT Equipment, Workstations, POS Systems, Security Systems, Medical Equipment.




Frequently Asked Questions (FAQs)

Q1: What does “Online UPS” mean, and why is it important for the Mercury HP930C-S? A1: An “Online UPS” (also known as a double-conversion UPS) means the connected devices are always powered by the UPS’s inverter, which continuously converts AC input to DC to charge batteries, then back to a perfectly clean AC output. This provides the highest level of protection against all power disturbances, including zero transfer time during outages, making it ideal for critical equipment that cannot tolerate even a momentary power interruption.

Q2: What does “0.8PF” signify in the Mercury HP930C-S 0.8PF, Online UPS 3KVA/2.4KW? A2: “0.8PF” stands for 0.8 Power Factor. This means that for every 3KVA (3000 Volt-Amperes) of apparent power, the UPS can deliver 2.4KW (2400 Watts) of real, usable power to your connected devices. A higher power factor indicates better efficiency in utilizing the supplied power, and 0.8PF is standard for many reliable UPS systems in this range.

Q3: What kind of equipment is best protected by the Mercury HP930C-S 3KVA/2.4KW UPS? A3: This UPS is ideal for protecting sensitive and critical electronic equipment, including:

  • Servers and IT racks
  • Network switches, routers, and firewalls
  • Telecommunications systems
  • POS (Point of Sale) systems
  • Security systems (CCTV, access control)
  • Medical diagnostic equipment
  • High-end workstations and gaming PCs
  • Any device where clean, uninterrupted power is crucial.

Q4: Can I extend the runtime of the Mercury HP930C-S? A4: Some models of the Mercury HP930C-S series may offer options for connecting external battery packs. Please check the specific product variant or consult with your supplier to confirm if this model supports external battery expansion for extended runtime.

Q5: How does this UPS protect against power surges and lightning? A5: The Mercury HP930C-S features built-in lightning and surge protection. Its online double-conversion architecture also inherently isolates connected equipment from most input line disturbances, providing a robust barrier against damaging electrical spikes and fluctuations
