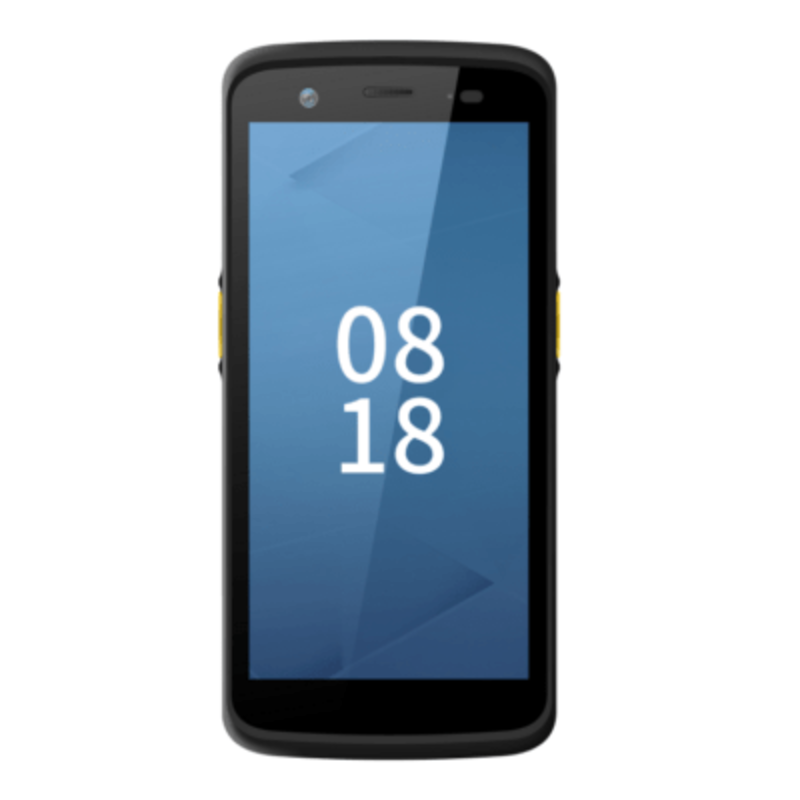

iData T1 Pro Android Mobile Computer is light but strong. The 5.5-inch full-screen thin PDA that can be held in one hand with an 18:9 screen design ratio, supporting multitasking split-screen operation, 230G easy holding feeling, zero burden to carry, and more convenient operation. It is 1.5m fall-resistant, IP68 dustproof and waterproof, noise-resistant, cold and heat-resistant, visible under strong screen light, gloves & wet and dry hand touch.
- OS: Android 14.0 (GMS)
- Processor: Octa-core 2.0 GHz
- Memory: 64GB + 4GB (standard)
- Camera: 13MP rear camera, support auto-focus/PDAF, 5MP front camera
- Display: 5.5-inch, resolution: 1440*720 pixel
- Battery: 3.85V lithium battery with 5000mAh (detachable)
- Barcode Scanner: 1D & 2D scan engine
- Standard Accessories: Battery, USB cable, power adaptor, and back strap
- Optional Accessories: Power adapter (fast charging), 2-in-1 charging cradle, 4-slot charging cradle, multifunctional 5-slot cradle, hand strap, fanny pack, protective case, protective film
iData T1 Pro Specifications
| Processor | Octa-core 2.0GHz high-performance processor |
| Operating System | Android 14.0 (GMS) |
| Memory (ROM+RAM) | 64GB + 4GB (standard) |
| SIM (eSIM: Not supported) |
Select two out of three available SIM card slots, support dual SIM and dual standby * two cards can be inserted at the same time, Nano SIM card + Nano SIM card /Nano SIM card +TF card WIFI ONLY version：SIM not available, not supported |
| Expansion Slot | Micro SD card (up to 512GB) WIFI ONLY version：SIM not available, not supported |
| Display Screen | 5.5-inch, resolution: 1440*720 pixels, IPS |
| Touch Screen | Industrial capacitive screen, support wet-hand operation/glove mode/multi-touch/gesture operation |
| Camera | 13MP rear camera, support auto-focus/PDAF, 5MP front camera |
| Flashlight | 1A flashlight |
| Keypad | 6 keys in total: side scan key *2, side power key *1, volume key*2, custom key*1 |
| Battery | 3.85V lithium battery, with 5000mAh, detachable, support backup battery |
| Audio | Built-in dual microphone (noise-canceling microphone) |
| Charging Method | Type-C charging and pin port charging, support 18W fast charging |
| Reminder | Vibration reminder/LED reminder/Audio reminder |
| Vibrating Motor | Built-in vibrating motor |
| Sensors | G-sensor/ Proximity sensor/Light sensor, Optional: Gyroscope/geomagnetic sensor/high- precision barometer |
| Intercom Function (Optional) | Support one-button PTT calls |
| Structure Parameter | |
| Dimension (L*W*D) | 160.7mm*74.9mm*15.4mm |
| Weight | 278g (including the battery) |
| Communication Transmission | |
| WWAN (Network Frequency) | China & Eurasian version 2G:B2/B3/B5/B8 3G:WCDMA:B1/B2/B5/B8 TD-SCDMA:B34/B39 4G:FDD-LTE:B1/B3/B5/B7/B8/B20 TDD-LTE:B34/B38/B39/B40/B41Global version 2G:B2/B3/B5/B8 3G:WCDMA:B1/B2/B4/B5/B8 TD-SCDMA:B34/B39 4G:FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B TDD-LTE:B34/B38/B39/B40/B41 WIFI ONLY version：SIM not available, not supported |
| WWAN (Data Service) | GSM/GPRS/EDGE/UMTS/HSPA/HSPA+/WCDMA/TD- SCDMA/TDD-LTE/FDD-LTE WIFI ONLY version：SIM not available, not supported |
| WLAN Function | Wi-Fi 802.11a/b/g/n/r/ac (2.4G + 5G dual-band Wi-Fi), support fast roaming |
| Bluetooth | Bluetooth 5.0, support BLE |
| GPS | GPS/AGPS/BDS/Galileo/GLONASS/QZSS |
| Environmental Parameter | |
| Working Temperature | -20°C – 60°C *Do not charge under low temperature conditions for the safety concerns |
| Storage Temperature | -40°C – 60°C (without the battery) |
| Humidity | 0 – 95% (no moisture condensation) |
| Drop Specification | Multiple drops to concrete floor from the height of 1.5m |
| Roller Drop Specification | 1000 times of roller drops from a height of 0.5 meter |
| Ingress Protection | IP67/IP65 |
| ESD Protection | ±15KV (air discharge), ±8KV (contact discharge) |
| Scanning Engine | |
| Barcode Type | It can scan one-dimensional / two-dimensional barcodes |
| Scanning Accuracy | ≧3.33mil |
| Scanning Angle | Pitch: ±60°; Skew:±45°; Tilt:360° |
| View Angle | Horizontal:44.3°，Vertical:28.4°，Diagonal:51° |
| Motion Error Tolerance | 8m/s |
| NFC (standard) | |
| Working Frequency | 13.56 MHz |
| Reading Distance | Within 40 mm |
| Communication Protocol | ISO14443A/14443B/15693 |
| Communication Interface | |
| USB Interface | Type-C (with headset function) *1 |
| OTG Interface | Support |
| Development Support | |
| Programming Language | Java |
| Development API | iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits), Android Standard Interface |
| Development Tool | Eclipse/Android Studio |
| Accessories | |
| Standard Accessories | USB cable*1, back strap *1, power adapter*1, battery*1 |
| Optional Accessories | Power adapter(fast charging), 2-in-1 charging cradle, 4- slot charging cradle, multifunctional 5-slot cradle, hand strap, fanny pack, protective case, protective film |
| Note | |
| ****** | Due to irregular updates of the product line, the content is subject to change without notice. |
