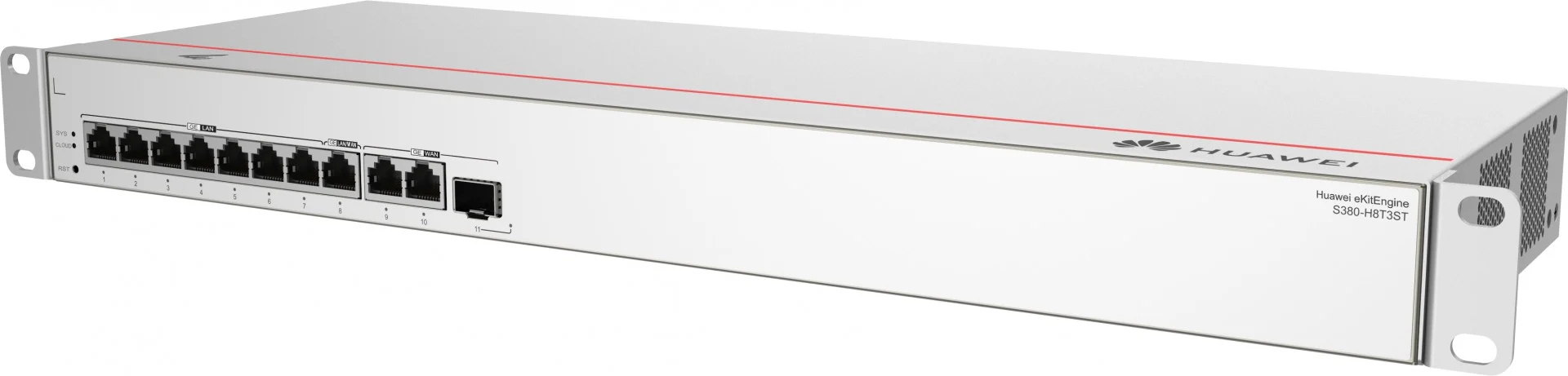

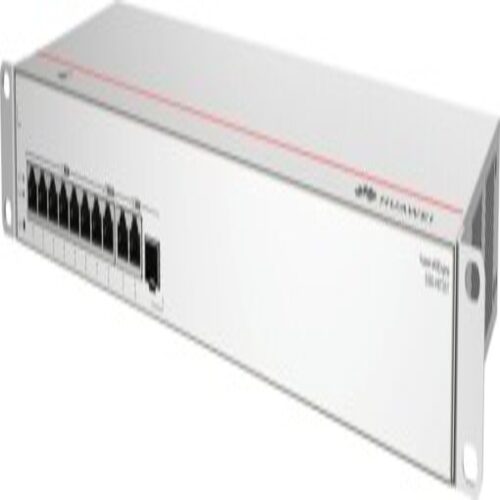

Huawei S380-H8T3ST Gateway

Huawei S380-H8T3ST Gateway

Enhance network performance and redundancy in Kenya with the Huawei S380-H8T3ST Gateway. 2 GE WAN, 1 GE(SFP) WAN, 8 GE LAN, ideal for businesses needing high bandwidth and reliable connectivity.

Huawei Gateway S380-H8T3ST (2GE WAN, 1GE(SFP) WAN, 8*GE LAN) – Full Product Description

The Huawei S380-H8T3ST Gateway is a high-performance Gigabit Ethernet gateway designed to provide robust and reliable internet connectivity for small to medium-sized businesses (SMBs), branch offices, and organizations in Kenya. This gateway offers advanced features, including dual Gigabit Ethernet WAN ports and one Gigabit SFP WAN port, providing increased bandwidth, network redundancy, and flexible connectivity options. With eight Gigabit Ethernet LAN ports, it offers high-speed connectivity for all your local network devices.

Key Features of the Huawei S380-H8T3ST Gateway:

• Dual Gigabit Ethernet WAN Ports: Enables connections to two different ISPs, providing network redundancy and increased bandwidth. If one connection fails, the gateway can automatically switch to the other, ensuring continuous internet access. This is crucial for businesses in Kenya that rely heavily on internet connectivity.
• 1 Gigabit SFP WAN Port: Offers additional WAN connectivity using fiber optic cables, providing high-bandwidth connections and greater flexibility for different internet connection types.
• 8 Gigabit Ethernet LAN Ports: Offers high-speed connectivity for connecting computers, servers, printers, and other network devices within your local network.
• Firewall Protection: Includes built-in firewall features to protect your network from unauthorized access and cyber threats, safeguarding business data.
• VPN Support (Check Specific Features): May support various VPN protocols (e.g., IPsec, PPTP, L2TP) for secure remote access to your network or for connecting multiple branch offices. Verify the specific VPN protocols supported.
• Load Balancing: Distributes network traffic across multiple WAN connections to optimize bandwidth utilization and improve overall network performance.
• Quality of Service (QoS): Prioritizes network traffic to ensure smooth performance for critical applications such as voice and video conferencing.
• Bandwidth Management: Allows you to control and allocate bandwidth to different users or applications.
• Easy Management (Check Specific Features): Offers various management options, such as a web-based interface, for easy configuration and monitoring. Specify the available management interfaces.

Why Choose the Huawei S380-H8T3ST Gateway in Kenya?

• Enhanced Network Reliability and Redundancy: The dual WAN ports provide failover capabilities, ensuring continuous internet access for Kenyan businesses.
• Increased Bandwidth and Performance: Load balancing across multiple WAN connections optimizes network performance and provides higher bandwidth for demanding applications.
• Flexible WAN Connectivity with SFP: The SFP port allows for fiber optic connections, providing greater flexibility for different internet connection types.
• Suitable for Businesses Requiring High Availability: Ideal for businesses that cannot afford internet downtime.
• Robust Security Features: Built-in firewall and VPN support protect your network and data from cyber threats.

Technical specifications of the Huawei S380-H8T3ST

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 160.0 mm (1.72 in. x 17.4 in. x 6.3 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 166.7 mm (1.72 in. x 17.4 in. x 6.56 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.)
Chassis height [U]	1 U
Chassis material	Metal
Weight without packaging [kg(lb)]	1.6 kg (3.53 lb)
Weight with packaging [kg(lb)]	2.1 kg (4.63 lb)
Typical power consumption [W]	11.25 W
Typical heat dissipation [BTU/hour]	38.4 BTU/hour
Maximum power consumption [W]	11.5 W
Maximum heat dissipation [BTU/hour]	39.2 BTU/hour
Static power consumption [W]	6.49 W
MTBF [years]	63.71 years
MTTR [hours]	2 hours
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans), < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
WAN ports	2 x GE WAN, 1 x GE (SFP) WAN
LAN ports	8 x GE LAN
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100–240 V AC; 50/60 Hz
Input voltage range [V]	AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Maximum input current [A]	0.8 A
Memory	DDR4: 1 GB
Flash memory	NAND Flash: 512 MB
Console port	Not supported
Eth Management port	LAN port
USB	Not supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±4 kV
Power supply surge protection [kV]	Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	–
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification
