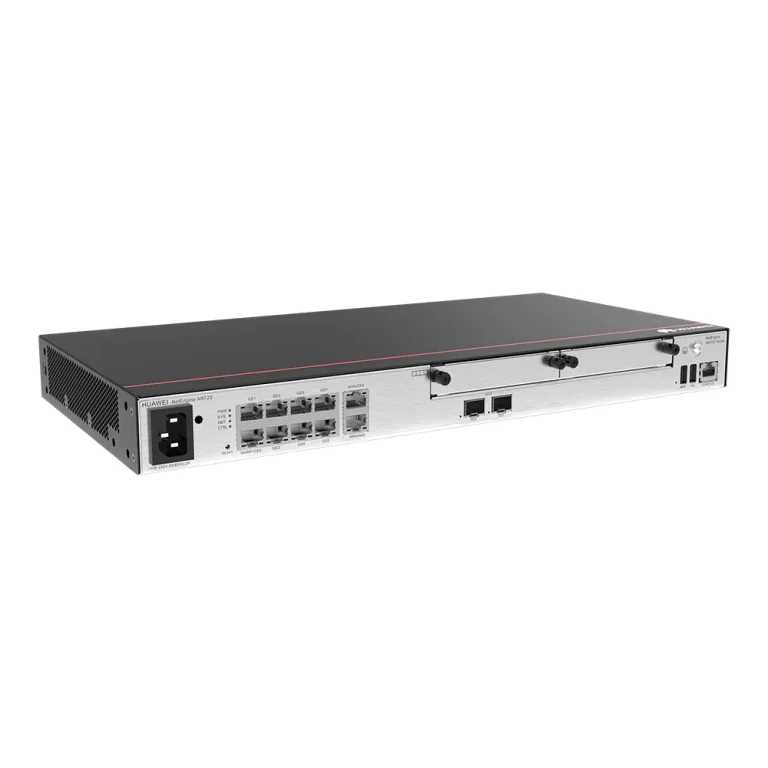

Huawei NetEngine AR720 Router

Huawei NetEngine AR720 Router

Secure and high-performance networking for Kenyan businesses with the Huawei NetEngine AR720 Router . Dual GE combo WAN, 8 GE LAN, USB, and SIC slots for flexible connectivity.

Huawei NetEngine AR720 Router – Full Product Description

The Huawei NetEngine AR720 is a robust and versatile enterprise-class router designed for small to medium-sized businesses (SMBs), branch offices, and organizations in Kenya seeking reliable, high-speed connectivity and advanced network features. This router offers flexible WAN connectivity with two Gigabit Ethernet combo ports (supporting both RJ-45 and SFP connections), eight Gigabit Ethernet LAN ports, USB interfaces, and SIC (Smart Interface Card) slots for expansion. It’s ideal for businesses requiring secure internet access, VPN connectivity, and advanced network management capabilities.

Key Features of the Huawei AR720 Router:

1. Dual Gigabit Ethernet Combo WAN Ports: Provides two Gigabit Ethernet WAN ports that can function as either RJ-45 or SFP (Small Form-factor Pluggable) ports, offering flexible connectivity to various internet service providers (ISPs) and connection types (fiber or copper). This offers redundancy and load balancing options.
2. 8 Gigabit Ethernet LAN Ports: Offers high-speed Gigabit Ethernet connectivity for connecting computers, servers, printers, and other network devices within your local network.
3. 2 USB 2.0 Ports: Provides connectivity for USB storage devices, modems, or other USB peripherals
4. 2 SIC (Smart Interface Card) Slots: Allows for flexible expansion with various interface cards, such as additional WAN or LAN ports, serial interfaces, or other specialized modules, enabling customization to meet specific business needs. You will need to purchase SIC cards separately.
5. Firewall and Security Features: Includes robust firewall features to protect your network from unauthorized access, intrusions, and other cyber threats. Specify the specific firewall features, such as stateful packet inspection (SPI), intrusion prevention system (IPS), and access control lists (ACLs).
6. VPN Support: Supports various VPN protocols (e.g., IPsec, PPTP, L2TP) for secure remote access to your network and for creating secure connections between branch offices. Specify the supported VPN protocols.
7. Quality of Service (QoS): Prioritizes network traffic to ensure smooth performance for critical applications such as voice and video conferencing.
8. Advanced Routing Protocols: Supports various routing protocols (e.g., RIP, OSPF, BGP) for efficient network routing and traffic management.
9. Network Management and Monitoring: Offers comprehensive network management and monitoring tools, including a web-based interface, command-line interface (CLI), and SNMP, for easy configuration, monitoring, and troubleshooting.

Why Choose the Huawei NetEngine AR720 Router in Kenya?

1. Flexible WAN Connectivity for Diverse Internet Options in Kenya: The combo WAN ports and SIC slots provide flexibility for connecting to various ISPs and connection types available in Kenya.
2. Enhanced Network Redundancy and Reliability: Dual WAN ports support link backup and load balancing, ensuring continuous internet access.
3. Robust Security for Protecting Business Data: Comprehensive security features protect your network from cyber threats, crucial for Kenyan businesses.
4. Scalable and Customizable Solution: SIC slots allow you to customize the router to meet your specific networking needs and scale your network as your business grows.

Technical specifications of the AR720



Item	Specification
Installation type	Rack Work bench Against the wall
Chassis height [U]	1 U
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.4 in. x 8.68 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.4 in. x 8.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90 mm x 570 mm x 390 mm (3.54 in. x 22.44 in. x 15.35 in.)
Weight with packaging [kg(lb)]	4.6 kg (10.12 lb)
Weight without packaging [kg(lb)]	3.2 kg (7.04 lb)
CPU	1.4 GHz, 4 Cores
Memory	4 GB
NAND Flash	1 GB
Console port	RJ45
RTC	Supported
LAN ports	8 x GE electrical interfaces
WAN ports	2 x GE combo
Number of service board slots	2
MIC slots (default/maximum)	0/0
SIC slots (default/maximum)	2/2
WSIC slots (default/maximum)	0/1
XSIC slots (default/maximum)	0/0
Redundant MPUs	Not supported
RPS input	Not supported
PoE	Not supported
IP rating	IP20
MTBF [years]	30.05 years
MTTR [hours]	2 hours
Availability	0.9999924012
Typical power consumption [W]	28 W
Maximum power consumption [W]	33 W
Power supply mode	AC built-in
Number of power modules	1
Rated input voltage [V]	100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V]	90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A]	2 A
Maximum output power [W]	70 W
Redundant power supply	Not supported
Type of fans	Built-in
Number of fan modules	1
Heat dissipation mode	Air cooling
Airflow	Left-to-right airflow
Noise at normal temperature (acoustic power) [dB(A)]	52.3 dB(A)
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F) NOTE: When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	< 5000 m (16404.2 ft.)
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Overtemperature alarm	Supported
