Huawei AP263 Access Point

Huawei AP263 Access Point

Discreet and powerful Wi-Fi 6 for Kenyan businesses. The Huawei AP263 Access Point offers fast, reliable wireless connectivity for hotels, offices, and more.

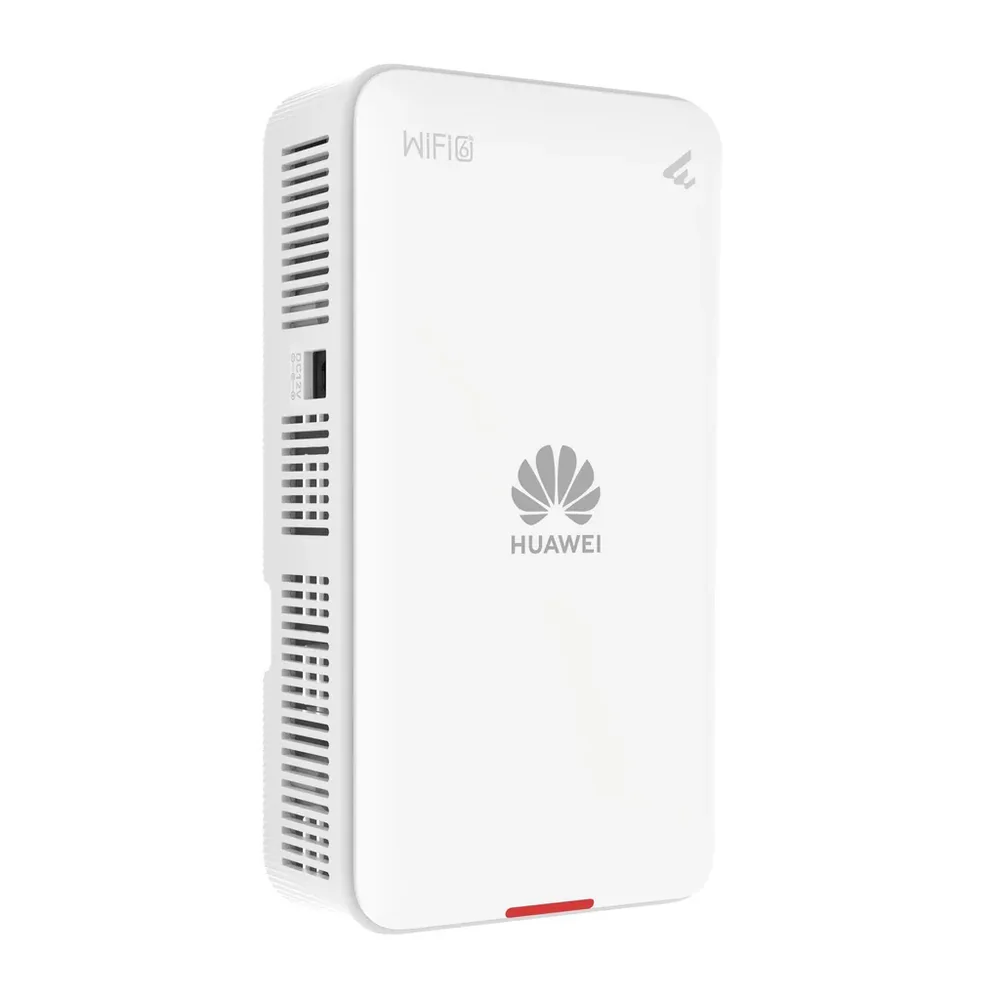

Huawei AP263 Wall Plate Wi-Fi 6 Access Point – Full Product Description

The Huawei AP263 Access Point is a discreet and high-performance Wi-Fi 6 (802.11ax) wall plate access point designed for deployment in hotels, offices, hospitals, and other environments in Kenya where aesthetics and seamless integration are paramount. Its compact design allows it to be easily mounted in standard wall junction boxes, providing fast, reliable, and secure wireless connectivity without disrupting the room’s decor. Operating on both 2.4 GHz and 5 GHz frequency bands, the AP263 delivers enhanced speeds, increased capacity, and reduced latency compared to previous Wi-Fi generations.

Key Features of the Huawei AP263 Access Point:

1. Wi-Fi 6 (802.11ax) Technology: Supports the latest Wi-Fi 6 standard, offering significantly faster speeds, increased capacity, and improved performance in dense user environments.
2. Dual-Band Concurrent Operation (2.4 GHz & 5 GHz): Operates on both frequency bands simultaneously, providing flexibility for connecting various devices and optimizing performance based on device capabilities and distance from the AP.
3. Wall Plate Design: Integrates seamlessly into standard wall junction boxes for a clean and unobtrusive installation.
4. High Data Rates: Supports high data rates for demanding applications such as video streaming, online conferencing, and large file transfers. Specify the maximum data rates for each band if available.
5. OFDMA (Orthogonal Frequency-Division Multiple Access): Improves spectral efficiency and reduces latency by allowing multiple users to share channels simultaneously.
6. MU-MIMO (Multi-User Multiple-Input Multiple-Output): Allows the access point to communicate with multiple devices concurrently, enhancing network capacity and overall performance.
7. PoE (Power over Ethernet) Support: Can be powered via PoE, simplifying installation and reducing cabling requirements. Specify the PoE standard supported (e.g., 802.3af/at).
8. Multiple SSIDs: Supports multiple SSIDs (Service Set Identifiers) to create separate wireless networks for different user groups (e.g., guests, employees).
9. Enhanced Security Features: Includes robust security features such as WPA3 encryption to protect your wireless network from unauthorized access.

Why Choose the Huawei AP263  in Kenya?

1. Discreet and Aesthetic Design for Kenyan Businesses: The wall plate design blends seamlessly into various environments, making it ideal for hotels, offices, and other businesses in Kenya where aesthetics are important.
2. High-Performance Wi-Fi 6 Connectivity: Provides fast, reliable, and secure wireless connectivity for demanding applications and multiple connected devices.
3. Simplified Installation and Deployment: The wall plate design and PoE support simplify installation, reducing deployment time and costs.
4. Ideal for High-Density Environments: Wi-Fi 6 technology and features like OFDMA and MU-MIMO ensure optimal performance in environments with many connected devices.

Technical specifications of the Huawei AP263 Access Point

Item	Specification
Installation Type	Desk Wall Ceiling Junction Box
Dimensions without packaging (H x W x D) [mm(in.)]	160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.)
Weight without packaging [kg(lb)]	0.320 kg (0.705 lb)
Weight with packaging [kg(lb)]	0.542 kg (1.195 lb)
Storage	NAND Flash 256 MB
Console port	BLE console
Maximum power consumption [W]	12 W
Maximum heat dissipation [BTU/hour]	41 BTU/hour
Power supply mode	PoE DC power adapter
Rated input voltage [V]	12 V
Input voltage range [V]	12±10% PoE: 802.3at/af
Service port surge protection	PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device	GE (RJ45) x 2, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)]	0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa – 106kPa ETSI 300 019-2-3
Ground	floating ground
USB	USB 2.0 (supporting 5 W power supply)
BLE	BLE5.0
Radio number	2
Operating frequency band	2.4GHz 5GHz
MIMO spatial streams	Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz): 2×2
Wi-Fi standard	2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface	Built-in smart antennas
Antenna gain	2.4G: 2 dBi/chain (peak value) 1 dBi (combined gain) 5G: 3 dBi/chain (peak value) 1 dBi (combined gain) BLE: 4 dBi
Maximum transmit power	2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) BLE: < 10 dBm
Singal radio transmit power [dBm]	2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain
MTBF [year]	69.7 year
MTTR [hour]	0.5 hour
Frequency stability [ppm]	+/-20
802.3at power supply description	No function is limited.
802.3af power supply description	The USB function is unavailable.
DC power supply description	No function is limited.
