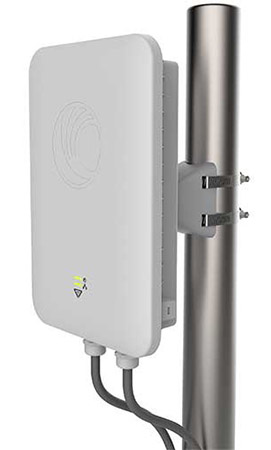

Cambium cnPilot e510 Outdoor Wi-Fi 5 AP

The Cambium cnPilot e510 Outdoor Wi-Fi 5 AP is designed to deliver high-performance, reliable wireless connectivity in challenging outdoor environments across Kenya. With its IP67 rating, this access point is built to withstand harsh weather conditions, making it ideal for deployments in public spaces, schools, businesses, and rural areas. Supporting 802.11ac Wave 2 technology, the e510 ensures fast and stable Wi-Fi for a large number of users.

Key Features of Cambium cnPilot e510 Outdoor Wi-Fi 5 AP:

• 802.11ac Wave 2 Technology: Delivers high-speed Wi-Fi for demanding applications.
• IP67 Rated: Weatherproof and rugged design for outdoor deployments.
• High User Capacity: Supports a large number of concurrent users.
• Gigabit Ethernet Port: Ensures high-speed wired connectivity.
• Easy Deployment and Management: Simplified setup and centralized management with cnMaestro.
• Mesh Networking Support: Enables flexible network expansion.
• Enhanced Security: Robust security features to protect your network.
• High Power Radio: Great coverage area.

Why Choose the Cambium cnPilot e510 Outdoor Wi-Fi 5 AP in Kenya?

In Kenya, where reliable outdoor connectivity is crucial for businesses, schools, and public spaces, the Cambium cnPilot e510 provides a robust and dependable solution. Its weatherproof design and high-performance capabilities make it ideal for the diverse Kenyan climate. Cambium's reputation for quality ensures that you are investing in a trustworthy and long-lasting product.

Access Point Specifications
Max Phy Rate	2.4 GHz radio: 400 Mbps 5 GHz radio: 867 Mbps
Ethernet Ports	One IEEE Gigabit Ethernet auto sensing
Antenna	Integrated dual polarized, omni direction 8dBi (2.4GHz) 9dBi (5GHz)
Max EIRP	2.4 GHz: 32 dBm 5 GHz: 34.5 dBm EIRP may be limited by individual country regulation
Power	802.3af or 802.3at Powered Device Max 12.95w (802.3af)
Physical Environmental	IP67 rated housing Wind Resistance 224 kph 320mm x 215mm x 65mm 1100g Kensington lock slot Two multi-color status LEDs -40C – + 65C ambient op temp -40C – + 70C storage temperature 95% RH non-condensing Overvoltage protection, category 1
LTE Filter	LTE bands 38, 40
Certifications	WiFi Alliance 80211a/b/g/n/ac, Passpoint 2.0 FCC, ETSI, CE, EN 60601-1-2, IEC60950, EN50121-1 Railway EMC EN50121-4 Railway Immunity IEC 61373 Railway Shock & Vibration
WLAN and Network Specifications
Controller modes	Controller-less standalone AutoPilot heterogeneous network Cloud managed cnMaestro On-premises cnMaestro VM
WLAN	256 clients, 16 SSIDs WPA-TKIP, WPA2 AES, 802.1x 802.11w PMF WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
Captive Portal	Hosted on cnMaestro Controller On-AP hosted guest portal Redirect to HTTP/RADIUS Server DNS logging
Authentication	Hotspot 2.0/Passpoint 2.0 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to local database or external RADIUS
Accounting	Yes. Supports RADIUS based accounting to multiple AAAs
Scheduled SSID	Turn SSID ON/OFF on a daily/weekly/time of day basis
Guest Access	Vouchers, Rate Limit, Splash page hosted on AP or cnMaestro Client isolation per SSID, per network
Data Limit	Client rate limit per SSID
QoS	WMM
Fast Roaming	802.11r, OKC, Enhanced roaming
Mesh	Multi-hop, either band
Channel Selection	autoTune: Manual, or automatic Selectable off-channel scan
Auto Tx Power	AutoRF: controller-less transmit power
Network	NAT, NAT logging firewall, DHCP server L2, L3 or DNS based access control VLAN Pooling, RADIUS attribute VID VLAN per SSID per user
Band Street Load Balance	Yes
Tunnel	L2TP, L2oGRE, PPPoE
Tools	Remote Packet capture, Channel/noise/interference analyzer, auto logging, ZapD performance test tool, rogue AP detection
Services	NTP, Syslog, SNMP traps, DNS proxy, auto-off on WAN failure
API	RESTful management and statistics API Presence location APIs
