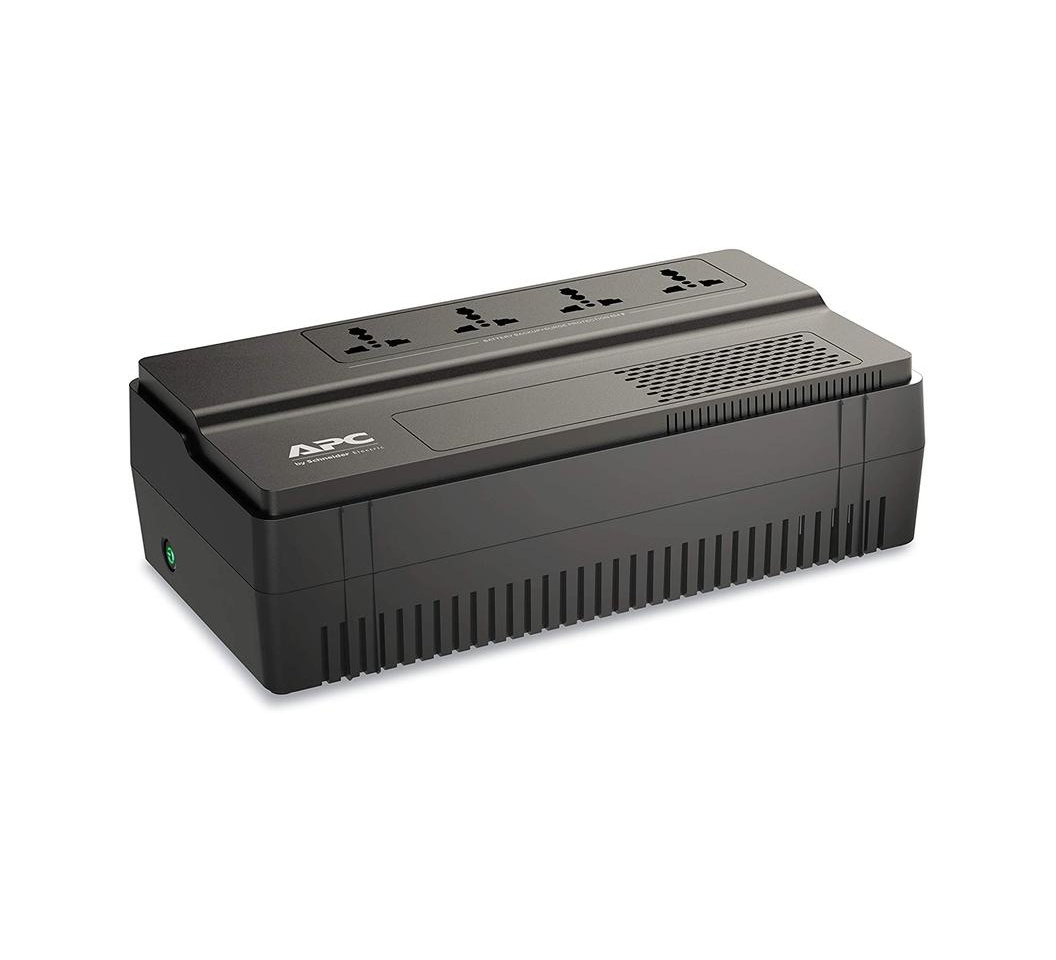

BV800I-MSX APC 800VA

BV800I-MSX APC 800VA. : leakproof Expected Battery Life (years) : 3 - 5. 800VA APC Easy UPS  has  Alarm when on battery distinctive low battery alarm : overload continuous tone alarm. Best Value UPS with Battery Backup & Surge Protection for Electronics and Computers 800VA APC Easy UPS 230V Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor. APC Easy UPS 230V BV800I-MSX UPS Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

BV800I-MSX APC 800VA specification

• Capacity: 800VA/480W
• Input Voltage: 230V
• Output Voltage: 230V
• Output Frequency: 50/60Hz ± 3Hz
• Waveform Type: Stepped approximation to a sinewave
• Transfer Time: 6ms typical, 10ms maximum
• Surge Energy Rating: 273 Joules.
• Battery Type: Sealed, maintenance-free lead-acid
• Recharge Time: 6 hours typical
• Battery Backup Runtime: Up to 20 minutes (half load), up to 6 minutes (full load)
• Outlets: 4 x IEC 320 C13
• Audible Noise: Less than 40 dBA at 1 meter
• Operating Temperature: 0°C to 40°C
• Dimensions: 220 x 161 x 300 mm
• Weight: 6.6 kg

Main

acoustic level	40 dBA
battery curve	B
battery type	Lead-acid battery
product certifications	IRAM
curve equation	Efficiency
curve fixed loss	0.0285
curve load maximum	100 %
curve load minimum	3 %
curve proportional loss	0
curve square loss	0.0029

curve test cond ID	Curve fit of data measured in accordance with the ENERGY STAR Test Method for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 230V/50Hz electrical input and balanced resistive load (PF = 1.0) output.
curve X-axis maximum	100 %
curve X-axis minimum	0 %
curve X-axis title	Load
curve X-axis units	Percentage
curve Y-axis maximum	100 %
curve Y-axis minimum	50 %
curve Y-axis title	Efficiency
curve Y-axis units	Percentage
extended runtime	0
Maximum configurable power in VA	800 VA
Maximum configurable power in W	450 W
liquid value	0
mounting mode	Not rack-mountable
mounting preference	No preference
number of battery filled slots	0
number of battery free slots	0
Battery recharge time	8 h
cable length	1.50 m
depth	30.5 cm
height	9.25 cm
number of cables	1
Number of power module filled slots	0
Number of power module free slots	0
net weight	5.3 kg
rated power in VA	800 VA
rated power in W	450 W
Surge energy rate	156 J
width	16.05 cm
operating altitude	0...6667 ft
ambient air temperature for operation	0 40 °C
battery life	3 5 year(s)
ambient air temperature for storage	-20 50 °C
storage altitude	0.00 15240.00 m
Transfer time	6 ms typical : 10 ms maximum
standards	EN/IEC 62040-1 EN/IEC 62040-2
UPS size	WS
UPS type	Line interactive
Wave type	Stepped approximation to a sinewave
graph display	1
redundant	No
show note OP temperature	No
two post mountable	0
	No
colour	Black
input voltage	230 V
IP degree of protection	IP20
nb of power socket outlets	4 Argentinean
network frequency	50/60 Hz +/- 5 Hz auto-sensing
output voltage	230 V
plug standard	IRAM 2073
provided equipment	User manual
relative humidity	0 90 %
input voltage limits	170...280 V
Battery power in VAH	0 VAh runtime

Output

output frequency	50/60 Hz +/- 1 Hz unsynchronised

BV800I-MSX APC 800VA Communications & Management

control panel	LED Status display with on line : on battery
alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

BV800I-MSX APC 800VA  Packing Units

Package 1 Weight	5.6 kg
Package 1 Height	23.7 cm
Package 1 width	363.2 cm
Package 1 Length	37.3 cm
