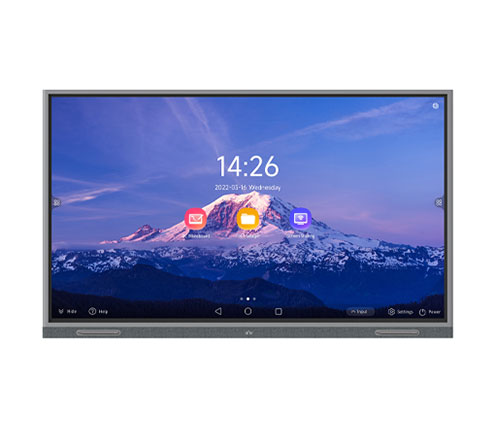

Uniview MW3575 75″ Smart Interactive Board

KSh227,727 VAT Exc.

Available on backorder

Specifications of Uniview 75" interactive board

Specifications  Model MW3575-U-CA

Panel of the Uniview interactive smart board

Backlight  DLED backlight

Panel size  75 inches

Resolution  3840*2160

Brightness (cd/m²)  350

Contrast ratio  1200:1  Response time (ms)  8

Colors  1.07 billion

Viewing angle (H/V)  178°/178°

Android

CPU architecture  Amlogic T982 4*A55 and Mali G52

GPU  CPU operating frequency  1.9GHz

RAM/ROM  DDR4: 4GB, eMMC: 32GB

System version  Android 11.0

Touch

Touch control  Contactless IR sensor, supports 20-point touch

Touch precision (mm)  ±1

Recognizable object  5 points, 3mm

Glass  4mm tempered glass, level 7 on Mohs hardness scale, anti-glare

Response time (ms)  ≤ 10  Input method  Opaque objects (e.g. fingers, pens)

Interface

Video input  3*HDMI IN (4K), 1*AV IN, 1*DP IN, 1*VGA IN, 1*YPbPr IN

Video output  1*AV OUT, 1*HDMI OUT (4K)  Audio input  1*MIC IN

Audio output  1*earphone, 1*coaxial audio output interface (coax)

Other interfaces  1*RS232,  3*front USB  3.0,  1*on-board USB  3.0,  1*on-board USB  2.0,  1*TOUCH USB,  1*Type-C,  1*TF  CARD, 1*IR IN

Network

interfaces  1*LAN OUT, 1*LAN IN

Audio Speaker

Left channel: 1*5W (treble) + 1*15W (bass)

Right channel: 1*5W (treble) + 1*15W (bass)

Camera of Uniview 75" interactive board

Pixel  13MP (4160*3120)

Video stream frame rate  13MP@15fps

4K2K@30fps  1080P@30fps, 720P@30fps

FOV (D/H/V)  118°/94°/75°

Microphone

Number of microphones    8

Pickup range  8m

Wi-Fi Configuration

Wi-Fi 5+Wi-Fi 6, supports 5/2.4 GHz

Performance  30m² coverage, 20m transmission distance in open space

Bluetooth

Version  5.2

Performance  10m transmission distance in open space



SKU: MW3575 75 Category:

Features of Uniview 75″ interactive board

 4K UHD anti-glare display delivers images with extreme detail.

 Ultra-narrow bezel design for perfect aesthetics.

 Dual Wi-Fi modules with both Wi-Fi and hotspot support.   High-precision infrared touch technology allows up to 20-point touch, resulting in smooth co-authoring.

 Multiple utility buttons on the front, such as power, volume control, settings, etc.

 A variety of quick tools, such as annotation, screenshot, etc., with a floating window, improving usability and interaction efficiency.

 Wireless screen mirroring from various operating systems, such as Android, iOS, and Windows, to the display with one touch.

 Fast file transfer allows users to quickly transfer files from a mobile phone to the display via a QR code.

 OTA remote upgrade. The system can be upgraded online without backing up data.

 Split-screen writing. The whiteboard allows independent writing on two split screens at the same time.

 A variety of front interfaces allow users to easily and quickly plug/unplug USB drives and other tools.

 OCR recognition. The Uniview 75″ interactive board can automatically recognize text and graphics

Additional information

Weight 58.8 kg
